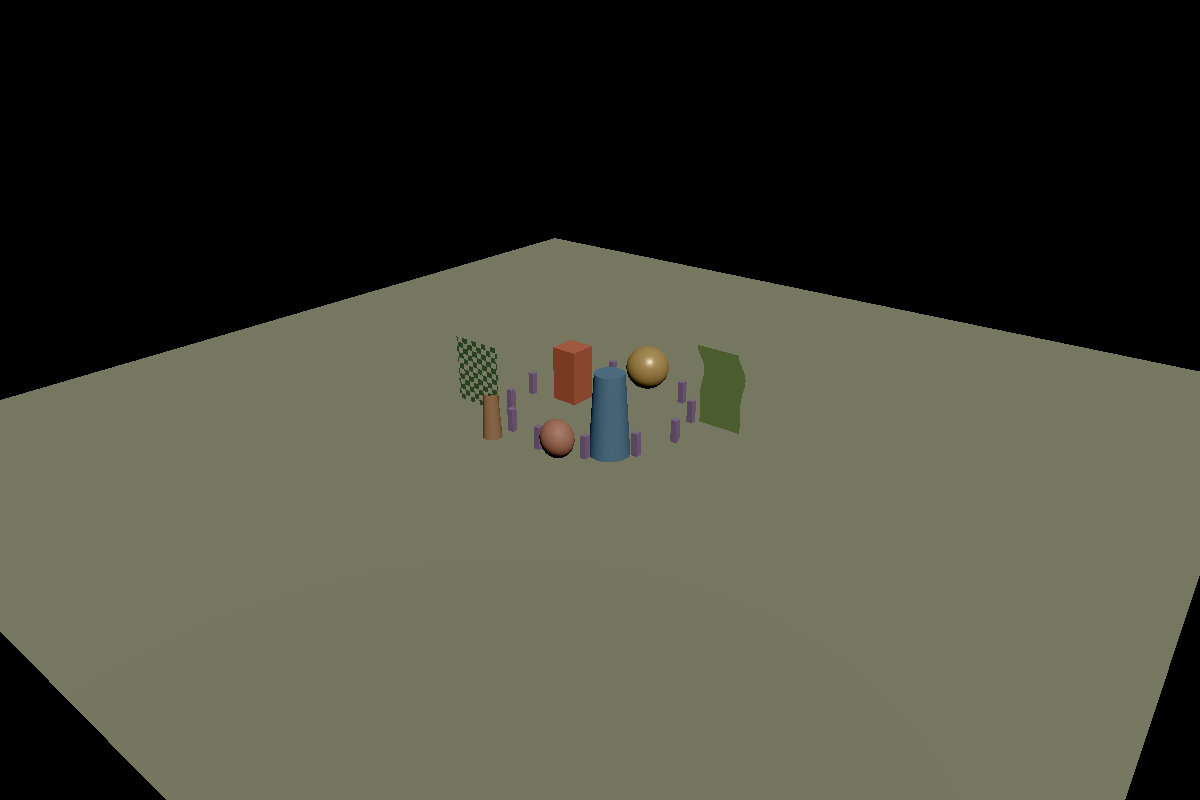

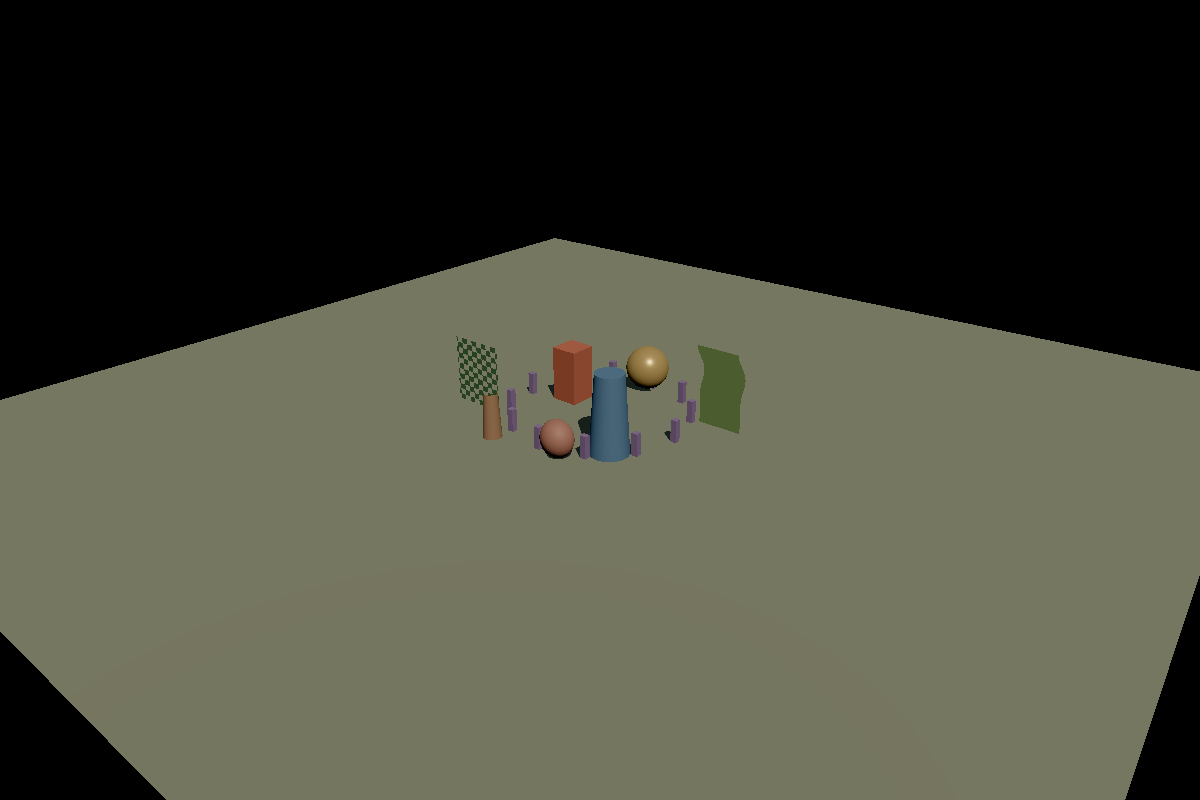

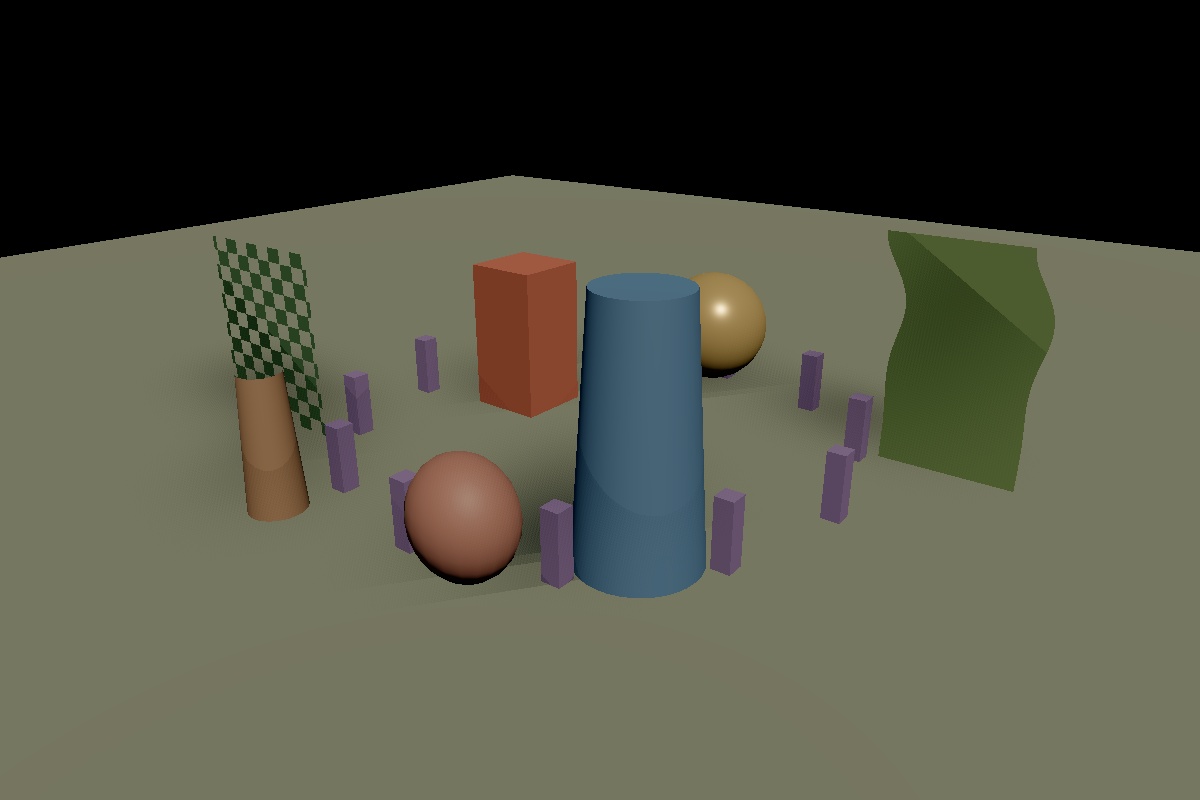

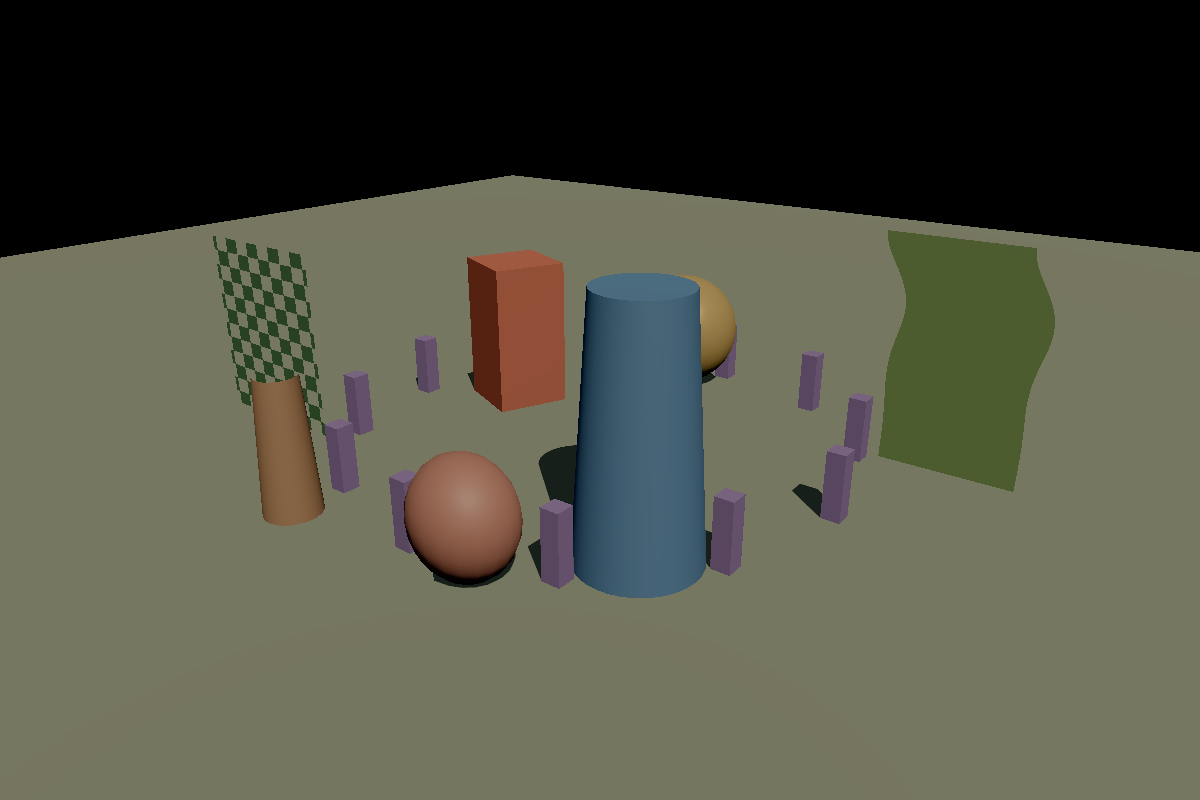

Scalable Real-Time Shadows

Scalable Real-Time Shadows

Choose shadow topology from spatial coverage, caster change rate, receiver pixel coverage, and adapter resources. A custom cache is justified only when measured reuse beats the built-in WebGPU nodes.

Number Labels

Every consequential number must be labelled:

• Derived: computed from bounds, texel density, workload, adapter limits, target refresh rate, or an equation.
• Gated: a hard resource/correctness ceiling enforced by validation.
• Measured: captured on the named device, resolution, DPR, scene, and sustained trace.
• Authored: visual intent such as coverage, softness, fade width, or acceptable update latency.

Unlabelled map sizes, level counts, bias constants, and millisecond claims are invalid.

Architecture Decision

The table states comparison-depth sampling topology. r185 core shadows still allocate a color-bearing render target beside depth, and Tile allocates a red color array beside its depth array even when transmitted shadows are disabled. VSM adds distribution/blur targets and passes.

TileShadowNode is not a clipmap: it updates all tile layers together and has no per-tile persistence scheduler. r185 builds one render list using visibility in any subcamera, then its WebGPU backend can issue each listed object's draw in every layer; it does not independently recull that list per tile. The array reduces sampled-texture binding pressure, not backend layer passes, worst-case caster draws, or receiver-side coordinate/branch/filter work.

r185 WebGPU Gate And API Facts

import { WebGPURenderer } from "three/webgpu";

await renderer.init();

if (renderer.backend.isWebGPUBackend !== true) {
  throw new Error("This shadow architecture requires the WebGPU backend.");
}

r185 source verifies:

• AnalyticLightNode consumes light.shadow.shadowNode when defined; otherwise it creates the default shadow node.
• The selected light shadow node is cached in built material/light graphs. Attach before first build; changing/deleting the property later affects future builds only unless every affected graph/pipeline is rebuilt and lifecycle-tested.
• ShadowNode.updateBefore(), updateShadow(), renderShadow(), setupShadowCoord(), setupShadowFilter(), and setupRenderTarget() are the relevant extension points.
• LightShadow.biasNode overrides numeric bias in the node path.
• NodeMaterial.positionNode and castShadowPositionNode are local-space geometry hooks. receivedShadowPositionNode is a world-space receiver lookup-position hook through shadowPositionWorld; it is not the third copy of a local caster deformation node.
• r185 CSMShadowNode texel-snaps each cascade center. Its clone scaling changes numeric bias only, becomes inert when cloned biasNode is present, and the dynamic filterNode property is not copied. It fits XY but retains the source shadow near/far. Gate custom filtering, normalBias, filter support, and caster/receiver light-depth coverage per cascade.
• LightShadow.copy() omits mapType; CSM clones lose a non-default source color-attachment type. FloatType there does not select depth32float—custom depth precision requires an explicit DepthTexture/target override.
• r185 CSMShadowNode.updateFrustums() must be called after camera projection or CSM split settings change, but it does not propagate all source-shadow changes or rebuild cascade topology. Configure before first build or explicitly synchronize/rebuild children.
• r185 TileShadowNode uses one array depth texture and does not support VSM. Its source initializes array comparison with LessCompare without a reversed depth branch. Gated: do not combine it with reversedDepthBuffer unless a target r185 depth diagnostic proves the comparison convention or the local implementation is corrected. It also supplies no filter gutter between tile layers; test PCF/PCFSoft support at every border.
• Tile's resolution option is later overwritten by cloned source mapSize, and its shared Red color array cannot represent RGBA transmitted shadows. Set and verify the source map size or patch the addon; reject transmitted color.
• r185 core shadow depth defaults map to depth24plus; reversed depth is not a promise of float32 shadow precision. Core receiver containment omits shadowCoord.z >= 0; first-frame reversed matrices, layered reversed clears, CSM split/receiver boundaries, non-default layers, and multi-camera updates all require fixed-scene diagnostics before acceptance.

Custom Cached-Clipmap Contract

Use a custom clipmap only after the decision comparison. It must:

1. define levels in one stable directional-light basis;
2. derive XY world texel widths from committed orthographic extents and map dimensions;
3. snap the light-space center to that grid relative to a stable global anchor;
4. distinguish desired, rendered/committed, dirty, and invalid state;
5. publish a center/extent only after its matching depth render completes;
6. choose and validate one receiver topology: a portable independent-texture path with unconditional level samples, or a target-proven array/atlas path that selects one layer (two in a cross-fade) with explicit border gutters;
7. refresh always-changing near coverage and schedule reusable levels under a measured update-debt gate;
8. route correctness invalidations outside the ordinary cache-age budget;
9. coalesce swept caster bounds and either refresh before sampling or mark a stale level invalid until repaired;
10. share local-space visible/caster deformation and coverage logic while keeping receiver-position overrides in world space;
11. reject transmitted-color/VSM caching unless color/distribution resources, filtering, blending, and their invalidation dependencies are implemented;
12. dispose the attached node, cloned shadows/lights, targets/textures, storage, debug resources, and listeners.

Read references/cached-clipmap-shadows.md before implementing the custom path.

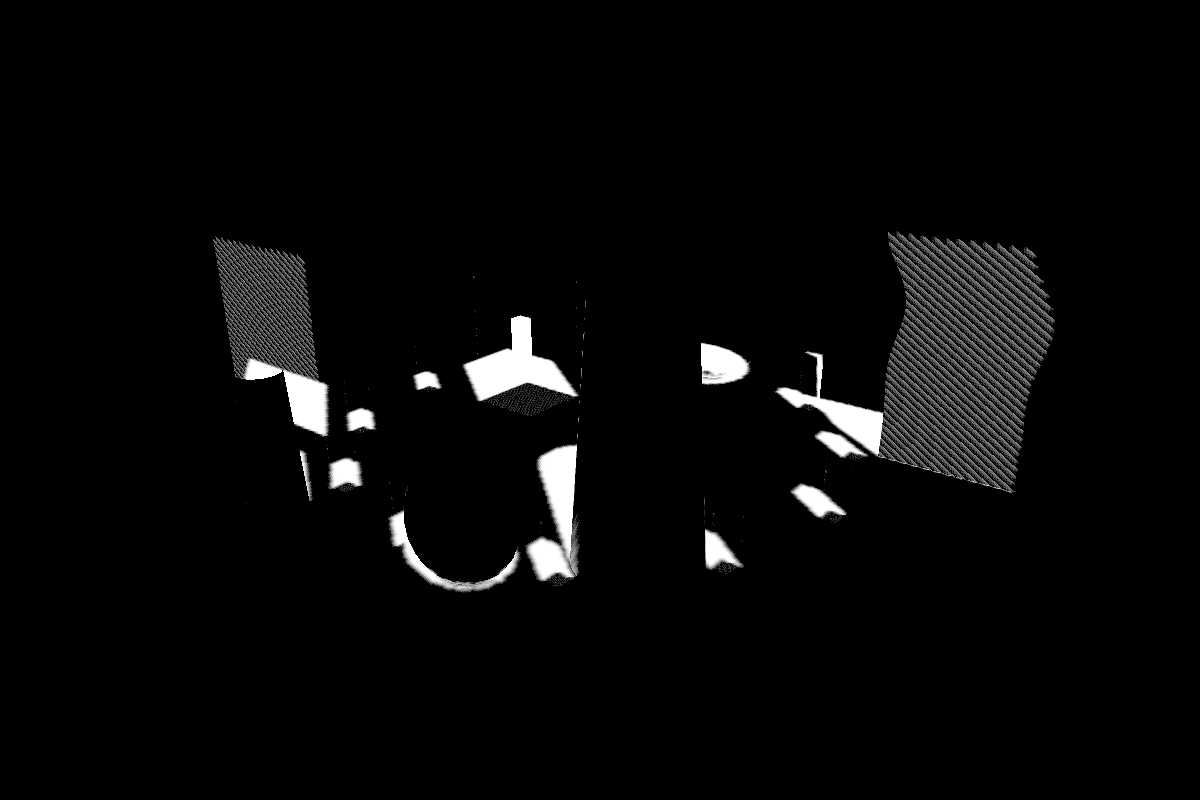

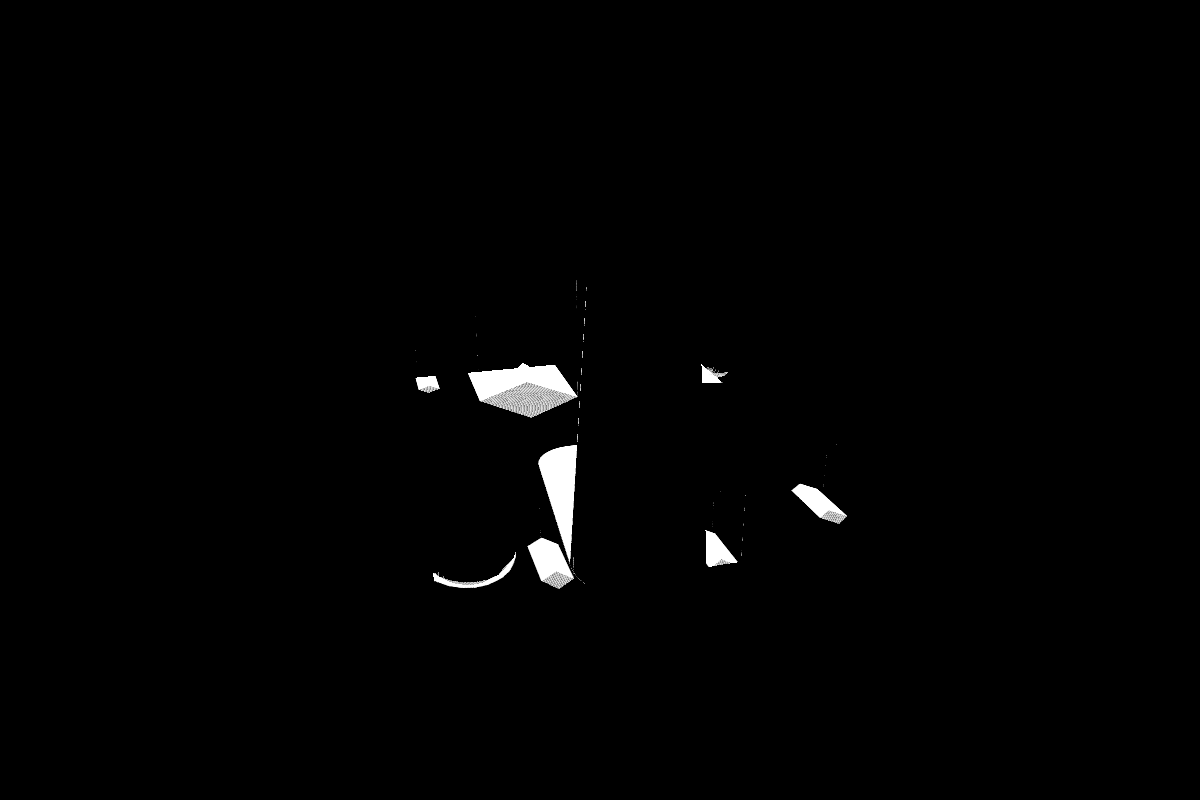

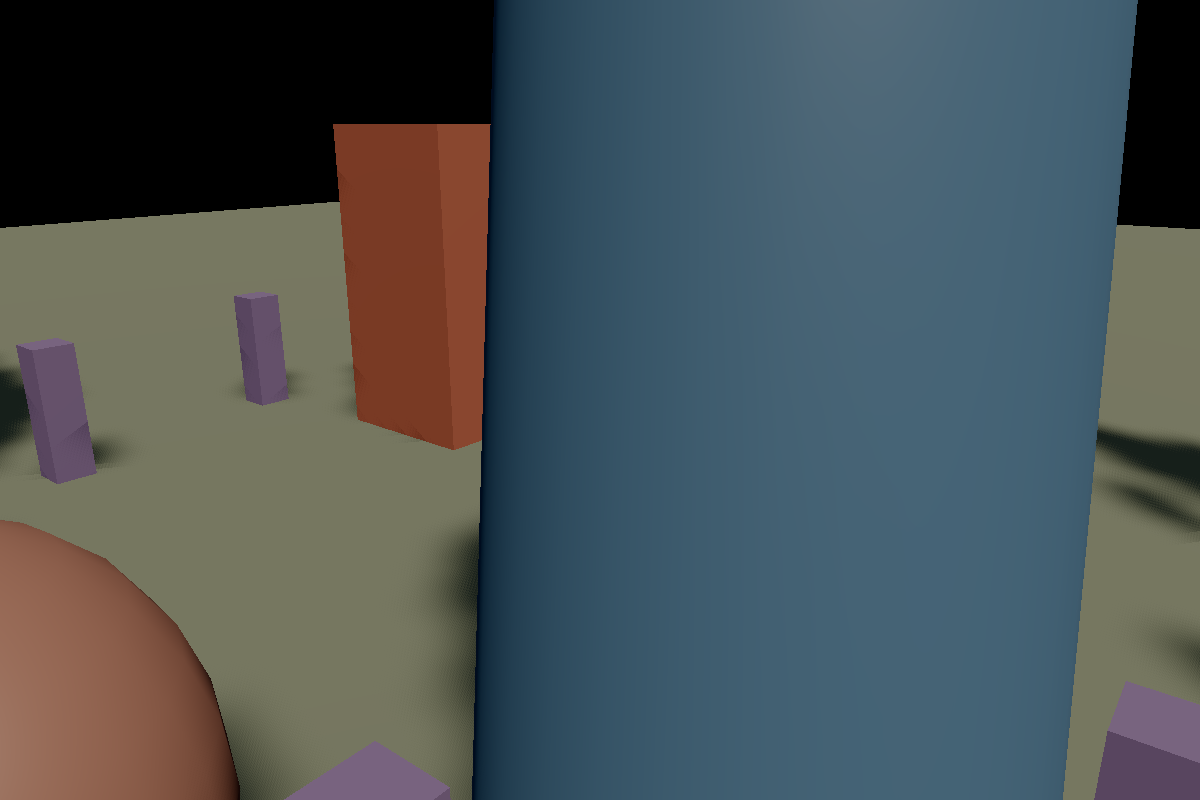

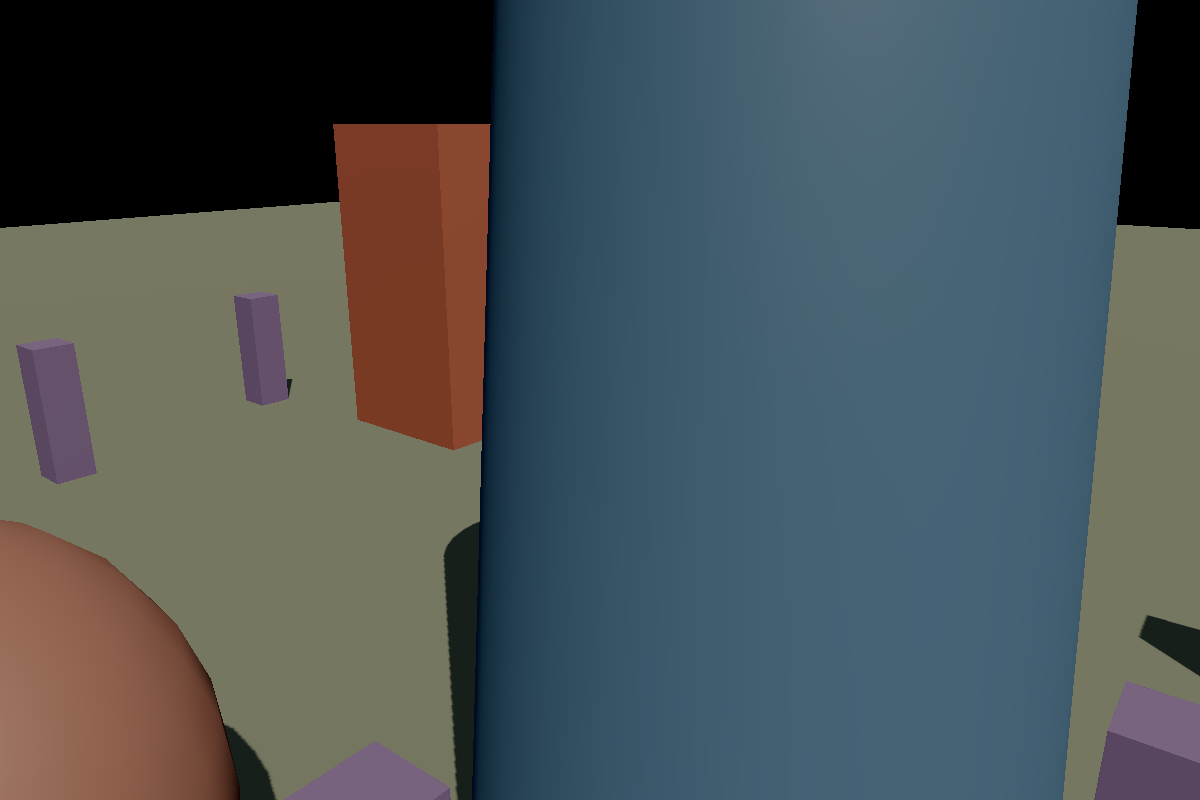

Texel, Filter, And Bias Footprints

For level extent [left,right] x [bottom,top] and map W x H:

dx = (right - left) / W    // Derived world units per texel
dy = (top - bottom) / H
centerX = quantize((desiredX - anchorX) / dx) * dx + anchorX
centerY = quantize((desiredY - anchorY) / dy) * dy + anchorY

Choose one deterministic floor or nearest policy and validate slow motion; do not change quantizer or anchor between frames. Z is a light-ray coverage problem, not the projected texel grid: fit biased receiver lookup positions and every relevant occluder between them and the light, add a Derived/Authored guard, and use hysteresis instead of an arbitrary XY-derived Z quantum.

r185 filter cost and footprint are algorithm-specific:

• BasicShadowMap: one comparison sample.
• PCFShadowMap: five Vogel-disk comparison samples; with supported hardware linear comparison the source describes an effective twenty filtered taps. shadow.radius scales by 1 / mapSize.x for both axes, so non-square maps can produce anisotropic world footprints.
• PCFSoftShadowMap: four gather-compare operations reconstruct a weighted local kernel; r185 does not use shadow.radius in this filter.
• VSMShadowMap: adds two blur render passes and distribution targets; r185 TileShadowNode rejects it.

For PCF, radius * dx is the nominal Vogel sample-center scale, not the exact support: the outer sample lies inside that radius and hardware linear comparison adds a bilinear texel footprint. Derive a conservative anisotropic support (rhoX,rhoY) from the actual pattern/backend. Decide whether softness is Authored constant-world-size or grows with level, then match support across cross-fades and reserve it inside every containment/tile edge.

normalBias is a world-space normal offset; numeric bias/biasNode is a normalized comparison-depth offset. Scale and diagnose them separately. Bound world depth uncertainty with anisotropic receiver-plane gradients, for example abs(dz/dx)*rhoX + abs(dz/dy)*rhoY + rasterQuantization, then divide by the orthographic light-depth span and apply the sign verified for normal/reversed depth. Gate normal offset by a contact-detachment test. Never hide oversized filter footprints with excessive bias.

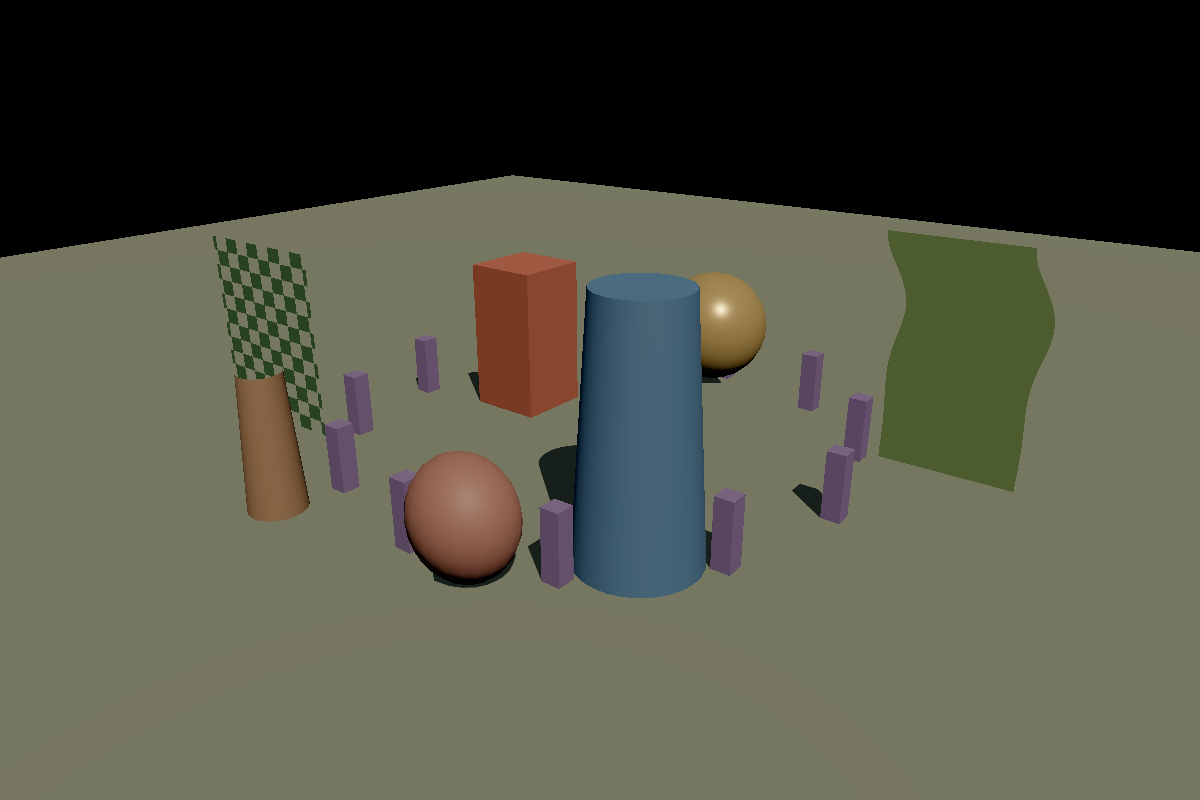

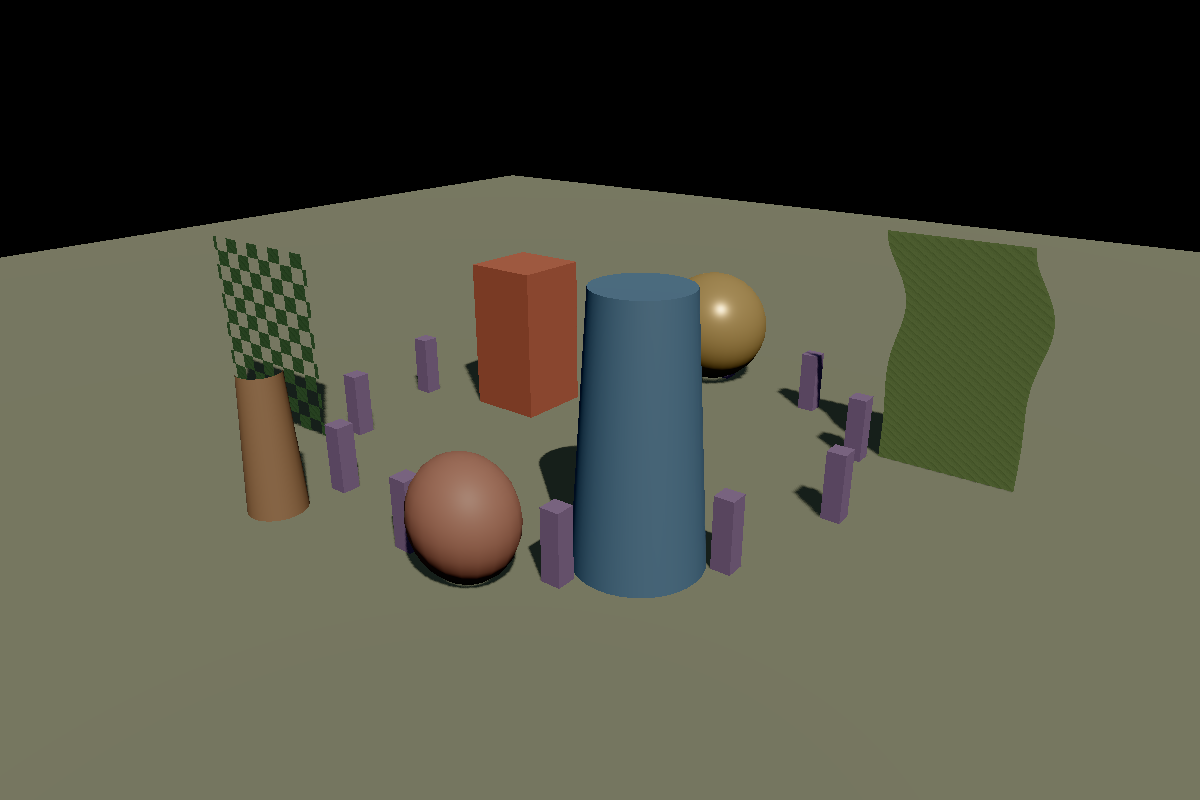

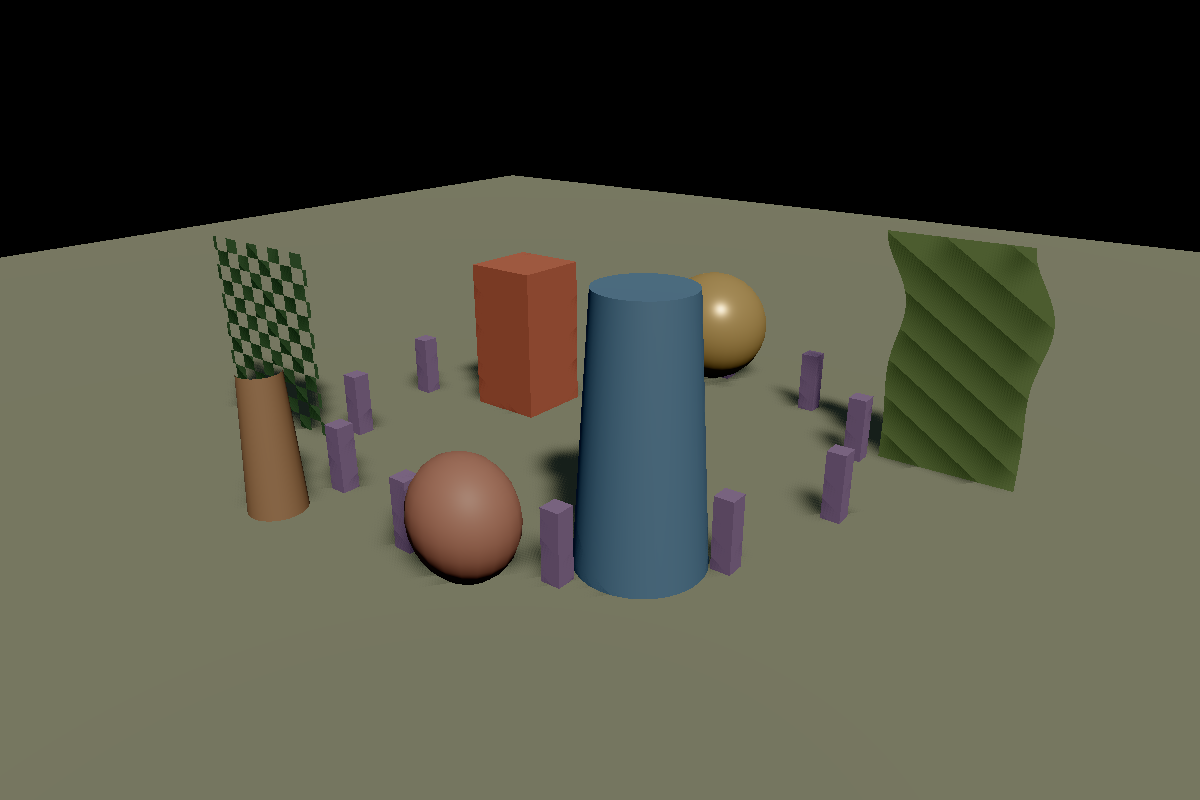

Cache Invalidation

Physics presentation and reactive publication

Keep the existing shadow node/cache as sole owner of desired, invalid, rendered, and committed map state. When the route declares a physics-to-render boundary, bind shadow preparation to the immutable pair of PhysicsPresentationCandidate and target/view CameraViewPublication from the physics domain and interaction contract, and validate its exact central per-binding/provider presented pairs, signal descriptors, camera render transforms/projection, validity, and errors. After cache publications return, the preparation owner emits ViewPreparationPublication and the central writer seals PhysicsPresentationSnapshot; visible receivers and temporal consumers resolve committed shadow refs, reactivePublications, resetDependencies, and resource lease refs transitively through viewPreparationId.

Caster invalidation uses the domain's current PresentedStatePair; swept bounds use both presented states. Do not use fixed-step endpoints or poll an external physics engine from the shadow pass. A pure render-origin rebase leaves semantic light/caster geometry invariant when both camera transforms are applied; it does not dirty depth content merely because float render coordinates changed. A physics-origin rebase may preserve cached depth only after the accepted PhysicsOriginRebaseTransaction transforms every caster/receiver/cache binding and a light-space round-trip invariant passes; otherwise invalidate the cache and its dependent temporal region.

For a physically sourced directional light, bind the canonical LightingTransportSnapshot.sourceDirection through its provider-wide PresentedStatePair and validate context/provider/signal IDs, basis, support, requested PhysicsInstant, channel actualPhysicsTime, declared clock mapping, maximum staleness, state/resource generations, lease, validity, and angular error. A broad directional distribution that exceeds the single-direction projection gate cannot be silently collapsed into one shadow camera. A nonphysical route keeps this lighting binding not used and declares an authored light basis.

The cache owns, but does not publish as a parallel ABI, two internal states:

• shadowContentEpoch: newest caster/light/alpha/deformation/resource content version that correct shadow content must represent;
• shadowCommittedEpoch: exact valid content version and map identity actually sampled by receivers, plus changed receiver bounds or a conservative screen mask.

On an accepted commit, map those states into the exact central records: return a shadowViewPublicationRefs entry containing shadowOwner, shadowViewId, cameraProjectionRevision, shadowContentEpoch, resourceLeaseRefs, and boundedDelay, plus one ReactivePublication with kind: shadow-content, sourceVersion equal to the committed epoch, canonical affectedRegion, resourceLeaseId, validity/error, and plannedConsumerActions. Return a versioned shadow-visibility factor ID as radiometric provenance; downstream lighting/render-radiance provenance includes that ID exactly once in attenuationFactorIds. Never mutate the already published lighting snapshot to retrofit it.

Keep desiredCoverageEpoch and update debt separate. Camera/snapped-center motion may leave the prior committed map correct within its committed domain; it is not a content/radiance change until containment fails or a new map actually commits.

Key both records by presentation target, view/camera-projection identity, and light; one camera's committed coverage cannot authorize another view. Publications also pin resource generation/layout/layer and a queue-safe lease until every receiver has submitted and its central reuseProhibitedUntil condition is satisfied; append release to FrameExecutionRecord.leaseDispositionById with its completion join/evidence.

The preparation owner writes those refs, publications, actions, and leases into a new immutable ViewPreparationPublication before sealing the Snapshot. Candidate, camera publication, preparation publication, and Snapshot are immutable; a shadow node never patches an earlier record. If a render-hook update finishes after sealing, both publication and receiver use are deferred to the next snapshot/presentation epoch; the current scene continues sampling the prior committed resource named by its snapshot. This requires an inactive resource generation while the prior leased generation remains untouched, followed by an atomic next-snapshot swap. Otherwise suppress the late update; an in-place render-hook write violates snapshot/content agreement. Same-presentation commits run before the seal. Never label desired or merely scheduled content as committed. A changed commit is a radiance discontinuity: reject the affected temporal-radiance pixels, or reset the full radiance history when no conservative mask exists. Shadow cache age and update scheduling remain owned here; the central contract standardizes only the published boundary and ordering.

ViewPreparationPublication.resetDependencies is only the immutable action plan. Append actual shadow renders, queue submissions, cache commits, reseeds, failures, and deferred feedback to FrameExecutionRecord. Do not treat logical content epoch, submission epoch, GPU queue availability, or host readback as equivalent. computeAsync() is not a completion fence. If required shadow preparation cannot return a valid committed or declared prior/degraded version before seal, append a FrameExecutionRecord with overallStatus: aborted (or partial-failure when another target survives), exclude the failed target from snapshotIds, store typed absence in its target execution's snapshotId, cancel or defer actions, retire only failed-target-exclusive preparation leases, and retain Candidate/shared leases until all surviving snapshot consumers join through leaseDispositionById. Device loss appends overallStatus: device-lost and affected target statuses device-lost, advances deviceLossGeneration, cancels actions, and invalidates lost-generation shadow resources/leases without mutating Candidate/Snapshot records or inventing a normal completion token. Rebuild the cache under the new generation before publication.

Track at least these dirty causes:

• snapped coverage center or fitted depth range changed;
• directional-light basis changed;
• caster transform, geometry, LOD, visibility, layer, castShadow, alpha/mask, or deformation envelope changed;
• caster arrival/removal or spatial-chunk generation changed;
• map resolution/format/resource identity changed.

Receiver-only motion does not change opaque comparison depth while committed coverage remains valid; it changes lookup/coverage. r185 VSM is exceptional because its submission includes receiveShadow objects. Filter, bias, or fade changes usually rebuild sampling state, not caster depth. Do not redraw maps for the wrong dependency.

For a moved/deformed caster, invalidate the union/swept bound of its previous and current conservative light-space silhouette. A content invalidation cannot wait silently behind an age refresh. Either:

• refresh the affected level before it is sampled; or
• set valid = false, remove that level from containment so valid coarser maps inherit its remaining weight, and repair it through a separately Gated correctness queue. Only unresolved outer remainder becomes fully lit.

Coalesce overlapping bounds before level tests. A local change near the center of nested full maps can intersect every level and force L full redraws; a level-granular clipmap does not make that update cheap. Exclude dynamic casters into an overlay/proxy, use nonoverlapping ring ownership, or adopt paged/tiled partial residency when measurements require locality. Continuously deforming content otherwise defeats coarse caching.

A static-cache/dynamic-overlay design belongs inside the same light/shadow node; a second DirectionalLight duplicates illumination. For opaque binary visibility with matched light-plane taps, exact union filtering is sum_k(w_k * Vstatic_k * Vdynamic_k), with out-of-overlay coverage equal to one. min() or multiplying already-filtered averages is an approximation that needs a quality gate. Transmitted color needs a separate composition contract.

Keep the scheduler CPU-visible. A GPU dirty bit cannot be consumed by updateBefore() without readback. Use CPU chunk generations/spatial indices to select level renders; use GPU compute for caster compaction only when the render path remains GPU-driven and a target measurement proves the benefit.

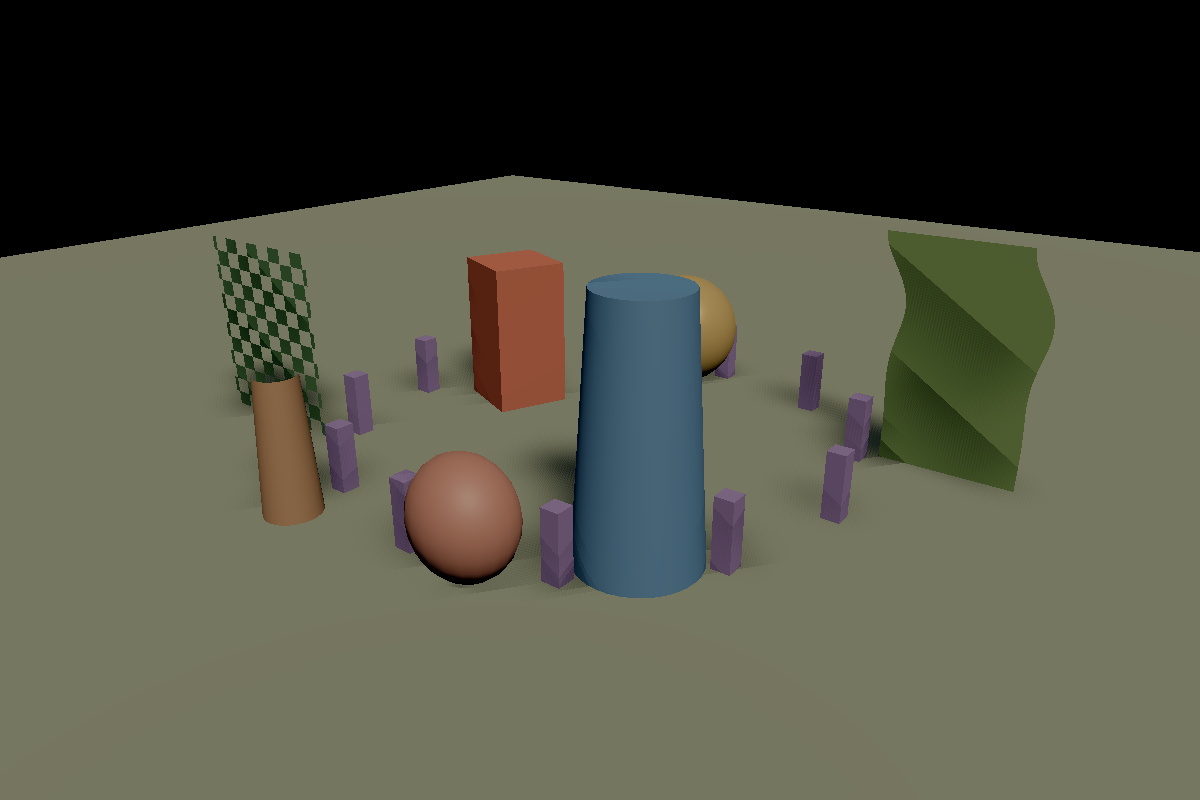

Caster Parity

• material.positionNode and material.castShadowPositionNode may reference the same local-space deformation node object.
• Leave receivedShadowPositionNode null for the normal world-space receiver position. If overridden, provide an explicitly world-space node and validate it independently.
• Morphing, skinning, instancing, and batched transforms are already applied by the r185 NodeMaterial position path; custom overrides must preserve them.
• Share alpha/coverage semantics through map/color alpha, alphaTest, maskNode/maskShadowNode, and castShadowNode as applicable.
• Audit side, layers, cast/receive flags, deformation time/version, and caster proxies. Formula text equality is not parity; shared data and coordinate contracts are.

Bind, Memory, And Workload Budgets

Query the initialized WebGPU device limits and inspect the compiled binding layout. Do not assume one sampler binding per texture; deduplication is graph and backend dependent.

nominal target bytes = sum(width * height * layers *
                           (bytesPerColorTexel + bytesPerDepthTexel)) // Derived lower bound
shadow draw work     = sum_v(visibleCasterDraws_v)                   // Derived
shadow triangle work = sum_v(visibleCasterTriangles_v)               // Derived
shadow vertex work   = sum_v(vertexInvocations_v)                    // Measured/Derived
shadow raster work   = sum_v(coveredDepthSamples_v * meanOverdraw_v) // Measured estimate
                     // or direct fragment invocations, never both
alpha work           = sum_v(alphaTexelFetches_v + discardedFragments_v)
receiver filter ops  = sum_pixels(sum_activeEvaluations(filterOps))  // Derived
frame allowance      = 1000 / targetRefreshHz                        // Derived ms

Topology pressure:

• CSM: L depth-texture bindings and approximately one active cascade filter per receiver in its built-in selection path; L shadow views update.
• Tile: one array depth texture with N layers and N backend layer passes. With r185 union-frustum render-list construction, caster work can approach N * unionVisibleCasterDraws. The shader performs N transforms/tests but normally branches into one in-range comparison filter (two on inclusive borders); divergence may serialize different branches. A custom tile-array selector can issue one layer comparison but must solve filter-border gutters.
• Per-level clipmap textures: L texture bindings. The portable unconditional path performs L filters; an array/atlas selector can reduce to one or two filters but needs common format/dimensions, dynamic-layer validation, and filter-safe borders.

Gated: sampled textures, samplers, bindings per group, bind groups, array layers, texture dimensions, memory ceiling, update debt, and maximum invalid coverage stay below the target adapter/product limits. Leave headroom for all other material and post resources.

Measured sustained mobile evidence: target resolution/DPR and refresh goal; thermal-steady trace; CPU/GPU frame quantiles; shadow-view draws/triangles; vertex invocations, depth-fragment coverage/overdraw, alpha/mask/deformation cost, pass clears/transitions, CPU traversal/cull time, receiver filter coverage; update spike/debt/age; bind-layout manifest; GPU allocation estimate; streaming/invalidation bursts. Allocate shadow time from the complete measured frame architecture, but declare independent CPU, GPU, presented-frame, memory, and spike/headroom gates before the acceptance trace. CPU and GPU overlap; do not sum them. The measured trace tests the gates rather than defining them.

Optimize the measured bottleneck: update/draw-bound work needs fewer views, casters, overdraw, or refreshes; receiver-bound work needs fewer active filters or lower filter cost; binding/memory-bound work needs packing/count/format changes; traversal-bound work needs spatial ownership/culling. Do not lower update cadence to solve receiver-filter cost. Increase resolution only after projection fit, snapping, bias, and filter support are correct.

Failure Conditions

• custom cache chosen without a same-scene comparison against one shadow, CSM, and tiled projection;
• desired centers published while maps still represent committed centers;
• center quantized in screen/camera space or against a moving origin;
• Z quantization clips casters or wastes the depth range;
• stale content remains sampled after explicit invalidation;
• divergent comparison branches used without target/UA shader validation or a portable unconditional/array-layer design;
• fixed texel-radius filters create visible world-size jumps at level borders;
• one bias constant used across incompatible world texel/depth spans;
• local caster deformation assigned to receivedShadowPositionNode;
• tile array selected solely to reduce bindings while view/filter cost is ignored;
• GPU dirty masks require hidden frame-loop readback;
• passing average timing hides periodic cache-expiry/invalidation spikes.

Routing Boundary

Use this skill for directional cast-shadow projections. Use $threejs-ambient-contact-shading for view-dependent ambient visibility, $threejs-image-pipeline for shared depth/post ownership, and $threejs-visual-validation for fixed-view shimmer, cache, resource, and sustained-budget evidence.
