Particles, Trails, and Effects

Particles, Trails, and Effects

Use $threejs-choose-skills preflight when an effect also needs custom atmosphere, shadows, camera staging, temporal surfaces, precipitation, or post-stack architecture. This skill owns object-space plasma, generated wakes, analytic sparks, pooled debris, lifetime compaction, and scene-relative HDR emission for effects.

When particles collide with world geometry or exchange physical sources, read the shared physics domain and interaction contract. Consume a registered ColliderProxy with its canonical frame/origin, topology/pose versions, swept bounds, physics material, residency, and error; query SupportSurfaceSample separately with its descriptor, sampleInstant: PhysicsInstant, footprint, validity, and per-channel error. Weather-coupled dynamics consume the route's immutable EnvironmentForcingSnapshot; aerodynamic force uses same-frame relative air velocity plus density, while direction-only visuals make no force claim. Emit typed InteractionRecord values only to the owning domain. A depth hit, visual spark, or wake ribbon is not an impulse, mass source, or equal-and-opposite reaction unless that record and schedule exist.

Conditional Shared-Physics Contract

Apply this section only when particle/effect state participates in physical coupling; a purely visual analytic effect remains local.

• Register coupled ingest, forcing, solve, exchange, commit, and publication work as explicit PhysicsGraphStage entries. Each execution carries its exact PhysicsTimeInterval in PhysicsExecutionLedger; the render loop consumes publications and must not double-dispatch a stage, discard catch-up debt, or derive solver progress from rendered-frame delta.
• Treat forcing and provider inputs as immutable graph reads with exact signal, version, frame, origin epoch, interval, validity, and error. A draw callback, material node, or pool kernel does not ad hoc sample or mutate the provider.
• Cross-owner transfer uses one SurfaceExchange containing typed InteractionRecord values. Source and reaction directions are explicit; required reactions are atomic through InteractionReactionGroup. The batch publisher owns sequence allocation and InteractionBatchLedger; the target state-equation owner records exact-once acceptance in InteractionApplicationLedger. Repeated render frames cannot replay a batch, and skipped frames cannot drop it.
• Publish coupled pool state through PhysicsPresentationCandidate, PresentedStatePair, and PresentationResourceLease; seal the target/view in PhysicsPresentationSnapshot, then execute the immutable render plan recorded by FrameExecutionRecord. Never render from mutable authoritative pool state or reuse a leased generation before its completion join.
• A physics-facing change to pool capacity, cadence, filter, stable-ID policy, error bound, event delivery, or presentation representation requires an admitted QualityTransition. Render-only density, shading, or post quality remains local only when physical observables, provider contracts, IDs, event cursors, and error bounds are unchanged.

Choose Simulation And Compaction Classes First

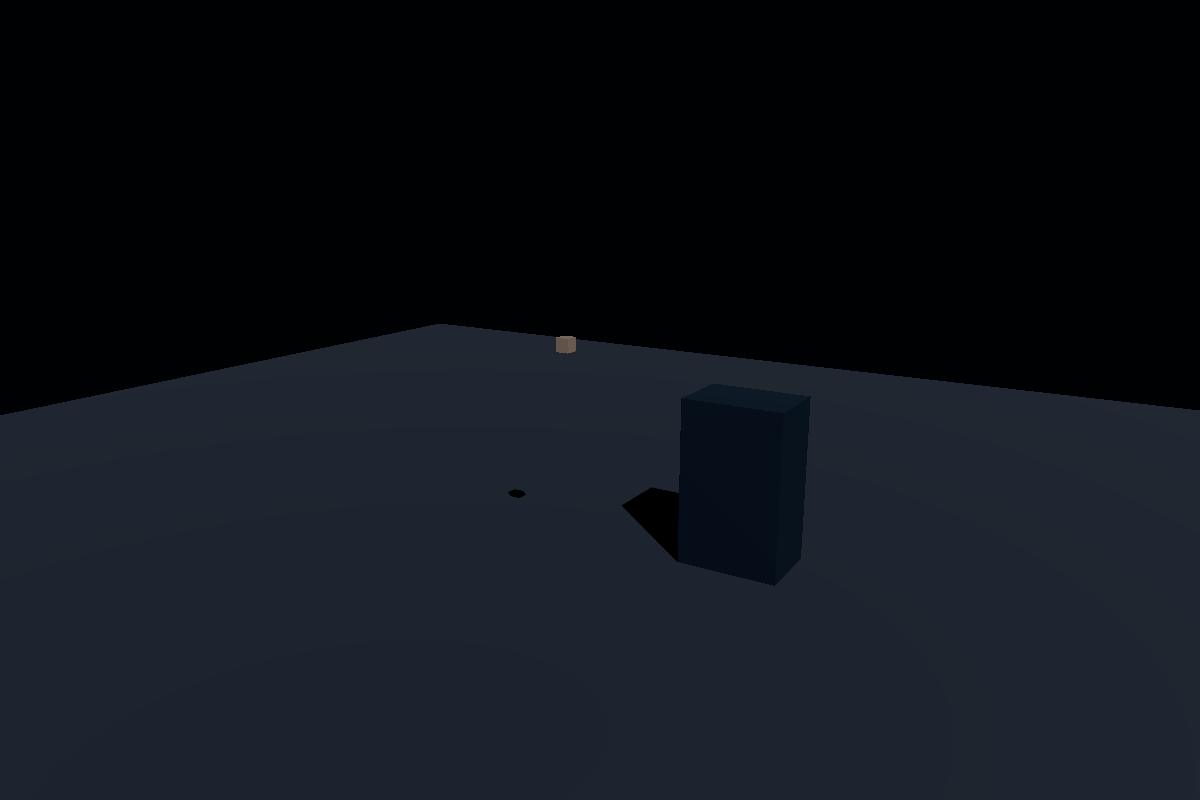

Choose compaction independently. Stable slots plus an alive bit win when dead vertex/overdraw cost is below a scan/scatter. When a dense output materially saves work, use mark -> exclusive scan -> scatter into a second buffer and write the resulting live/indirect count. Dense-swap is valid only for a serialized removal queue or a proven atomic protocol with unique source and destination ownership; naively decrementing a shared tail from many invocations is a race.

Architecture First

Start with the architecture selected above, then scale quality inside it:

event envelope + seed
  -> analytic evaluation or compute spawn/update into storage
  -> stable alive slots or mark/scan/scatter compaction when it earns its cost
  -> visible range rendered by SpriteNodeMaterial or instanced NodeMaterial
  -> hull-conforming shell/wake displacement in TSL
  -> scene-linear HDR output; optional selective emissive signal only when required
  -> RenderPipeline bloom/other consumers and final output transform

Do not teach CPU-per-object effects at scale. The recurrent high-count path uses fixed-capacity spatial pages with seeded spawn packets and one draw per visible compatible representation page. Static parameters are generated once; analytic motion stays read-only, while compute updates only state that genuinely recurs. Compaction is optional and must remove more draw work than its scan/scatter costs.

Use references/particles-trails-and-effects-system.md for the full implementation contract: reentry shell/wake representation, compute pool layout, stable-slot/scan-compaction invariants, depth policy, budgets, diagnostics, and the replaced techniques from the historical implementation.

Canonical WebGPU lab: examples/webgpu-pooled-effects/. It contains prebound SoA A/B state, ordered mark/two-level exclusive-scan/scatter kernels, stable entity IDs backed by an atomic GPU free stack, deterministic event expansion, indirect spark/debris render objects, and the hull-shell/wake stage. Motion, appearance, and identity scatter are split so every kernel stays at or below seven storage-buffer bindings. Its CPU oracles prove invariants only; canonical acceptance still requires the native-browser readback/timing evidence named by lab.manifest.json. Indirect meshes retain frustum culling through conservative event-envelope bounds, and evidence keeps pool, draw-consumption, hull, dissolve/shadow, depth, and emissive claims separate.

Legacy WebGL implementation (deprecated, do not extend): examples/reentry-plasma/reentry-plasma.js

Historical rename only: PostProcessing was renamed to RenderPipeline; new systems use RenderPipeline.

Mandatory Baseline

• Renderer: WebGPURenderer from three/webgpu; call await renderer.init().
• Materials: TSL from three/tsl with SpriteNodeMaterial, MeshBasicNodeMaterial, MeshStandardNodeMaterial, or MeshPhysicalNodeMaterial.
• Compute: TSL Fn().compute(count), queued renderer.compute(), storage() nodes, StorageInstancedBufferAttribute for instance-visible state, and StorageTexture only when the effect is a texture field.
• Rendering: InstancedMesh or sprite batches backed by storage attributes. Stable slots draw a capacity/last-occupied range and reject inactive records; dense GPU compaction publishes an indirect instance count through IndirectStorageBufferAttribute + geometry.setIndirect(). Do not read back a GPU count to set mesh.count in the frame loop.
• Post: RenderPipeline, pass(), conditional mrt(), outputColorTransform or renderOutput(). Full-scene HDR bloom needs no emissive MRT; selective bloom allocates it only with a proven consumer, transparent blend contract, and tile-traffic A/B.
• Built-ins first: use BloomNode for bloom, TRAANode when the post stack needs temporal reprojection, GTAONode for shared scene grounding, and $threejs-scalable-real-time-shadows for CSMShadowNode / TileShadowNode decisions.

Capability Gate

Every compute/storage/MRT particle-and-effect system includes this gate:

await renderer.init();

if (renderer.backend.isWebGPUBackend !== true) {
  throw new Error(
    'WebGPU is required for the canonical particle/effect path; route explicit fallback teaching to threejs-compatibility-fallbacks.'
  );
}

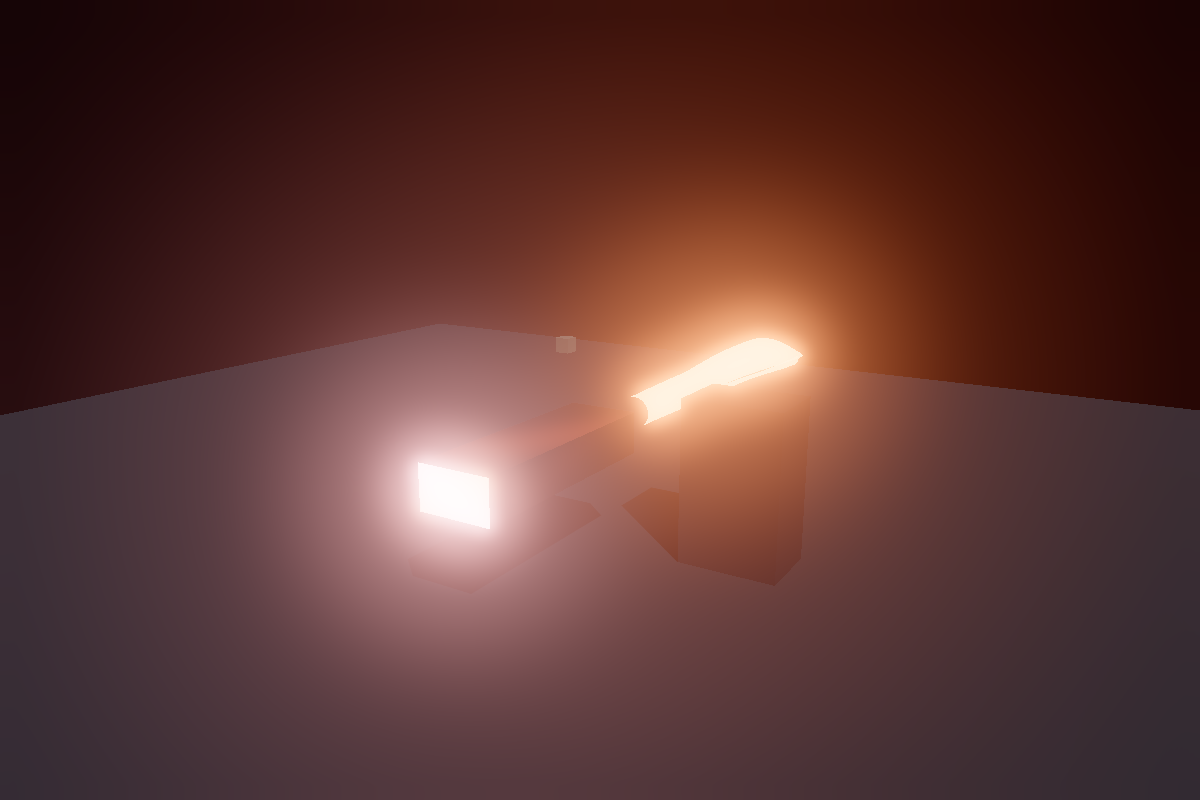

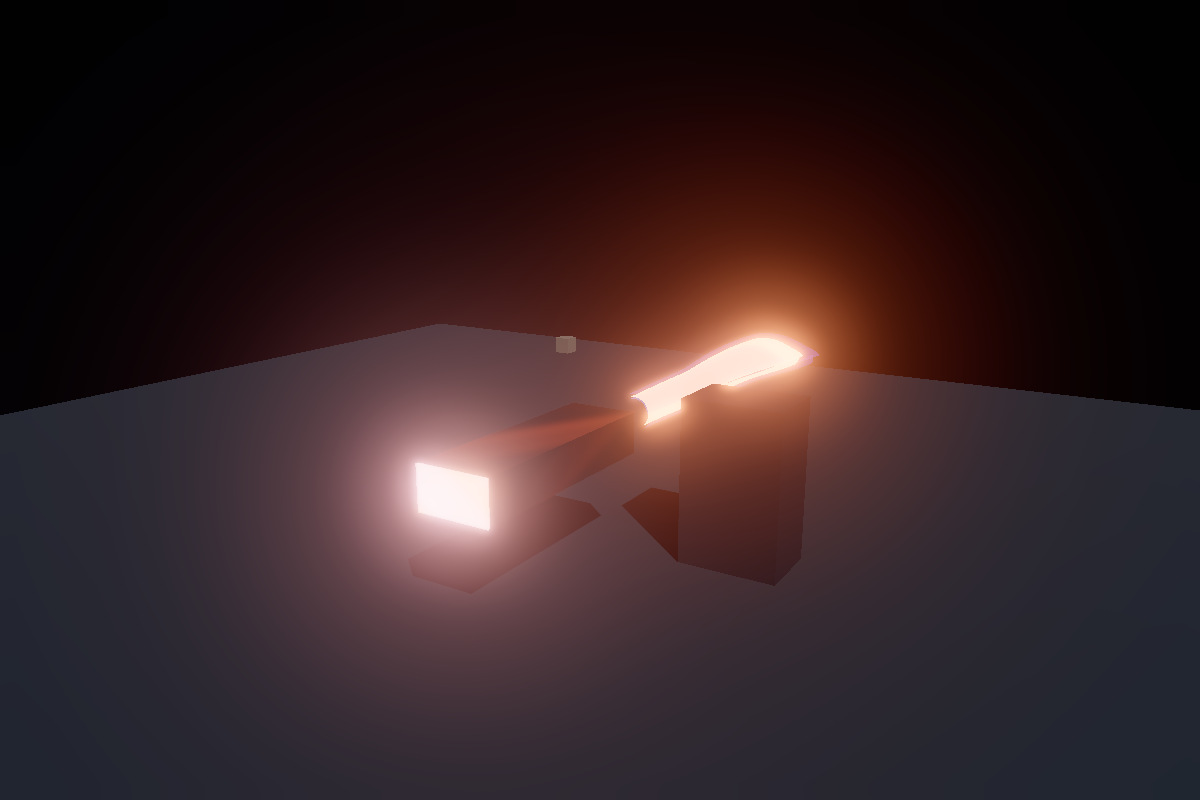

Quality tiers preserve the effect mechanism and change representation:

Pool cap, layers, bands, and post scale are workload outputs. They remain Authored trials until target-context measurement and the visual contract admit them; no count maps universally to a device class.

Build Order

1. Checkpoint: event envelope and seed. Expected: spawn window, normalized lifetime, transform, flow direction, luminance scale, and effect class are logged in the validation report. If you see nondeterministic captures, remove Math.random from spawn paths.
2. Checkpoint: storage-backed pools per visual class. Expected: sparks, debris, wake cards, and shock flecks allocate structure-of-arrays storage once. If you see per-frame object churn, the system has fallen back to emitters.
3. Checkpoint: static attributes. Expected: random phase, local anchor, base radius, color family, mesh variant, and material flags are generated once. If you see upload spikes, cold fields are being rewritten in the frame loop.
4. Checkpoint: update and visibility policy. Expected: analytic particles change without hot writes; simulated particles update once; stable-slot or mark/scan/scatter invariants are explicit. If parallel dense-swap can claim one tail record twice, the compaction policy is invalid even when a short capture looks correct.
5. Checkpoint: dense live rendering. Expected: SpriteNodeMaterial handles camera-facing sparks and instanced NodeMaterial meshes handle debris and hull-conforming shells. If you see WebGPU point-size artifacts, replace point primitives with sprites or instanced quads.
6. Checkpoint: hull shell and wake fields. Expected: flow-facing masks, support-point wake origin, capsule wake/lobe meshes, and analytic filament fields share one event frame. If you see a detached aura, rebuild the shell from local hull samples.

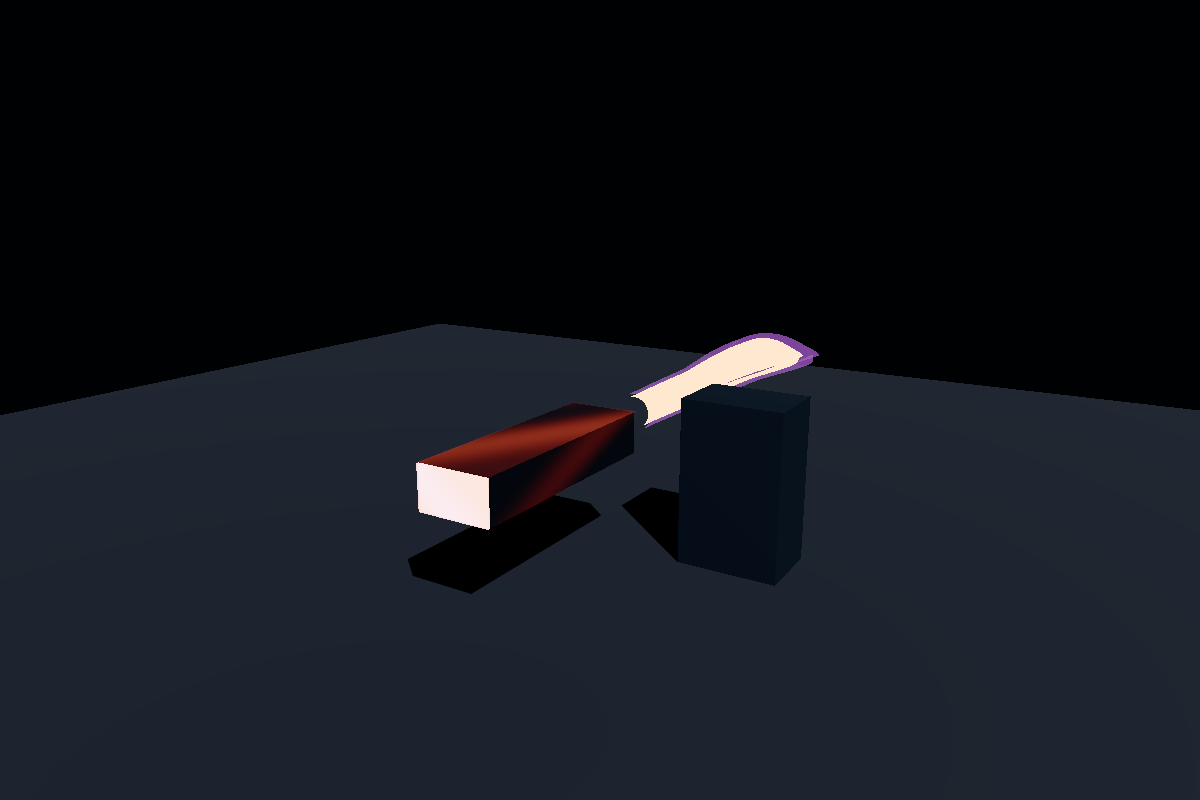

7. Checkpoint: HDR signal and bloom-off proof. Expected: full-scene bloom reads the HDR scene color with no contribution attachment. If selective bloom was explicitly selected, HDR contribution writes to the proven MRT emissive contract and bloom reads that texture. In either route the beauty path stays legible when bloom is disabled. If you see bloom-only shape, fix material emission before post tuning.

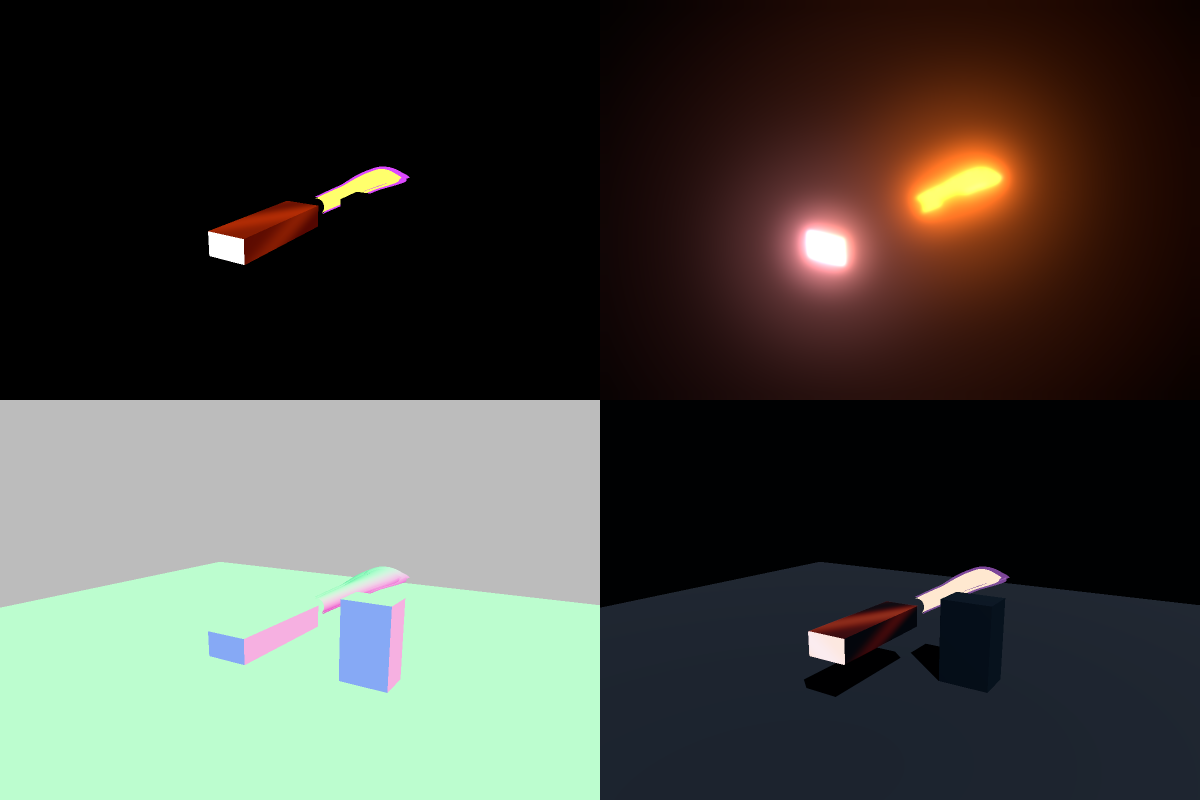

8. Checkpoint: diagnostics and budgets. Expected: pool occupancy, spawn count, compact count, overdraw heat, layer masks, raw HDR, bloom contribution, depth policy, and per-tier GPU time are visible. If you see a missed budget, lower live cap, layer count, field octaves, or bloom scale before changing the architecture.

Performance Contract

Use chunked bounds and per-patch visibility for large fields. Avoid a single unculled monolith unless the effect is camera-attached and its bounds are explicitly validated.

Record the workload tuple {N_active, strideBytes, solverStages, compactionMode, coveredPixels, layersPerPixel, drawClasses, postExtent} and measure contemporaneous whole-frame p50/p95 plus paired marginal A/B cost on the named target. Include scan/scatter, transparent fragments, attachment traffic, peak live memory, and sustained thermal behavior. Choose the largest workload whose visual-error gates and complete scene allocation both pass.

Color And Output

• LDR color textures encoded as sRGB use SRGBColorSpace; HDR/EXR radiance remains loader-declared linear. Data textures, masks, noise, LUTs, and storage-generated fields use NoColorSpace/linear.
• Keep HDR in HalfFloatType working buffers until the final transform.
• There is one tone-map owner and one output conversion owner: the node pipeline via outputColorTransform, or explicit renderOutput() when a late post node needs transformed input.
• Material emission is scene-relative. Preserve hierarchy, then calibrate: short transient flash > powered emitter core > persistent emitter > ordinary surface.
• Bloom is a response to authored HDR emission, not the primary shape. Always verify a bloom-disabled baseline.

Rules

• Every layer must earn its cost through silhouette, motion, illumination, or residue.
• Use normalized lifetime curves and seeded randomness.
• Derive secondary motion from the same event direction, flow field, or impact frame.
• Keep spawn, analytic evaluation or simulation, compaction, draw, overdraw, and post costs measurable per tier.
• Expose raw debug views for masks, age, velocity, live indices, overdraw, luminance, optional selective MRT contribution, and bloom.
• Treat old constants as scene-relative evidence, not portable defaults.

Routing Boundary

Use $threejs-dynamic-surface-effects only for screen-space frost, thaw, and touch-history masks. Use $threejs-rain-snow-and-wet-surfaces for falling rain or snow, splash flipbooks, and weather events that alter ground materials. Use $threejs-procedural-motion-systems for authored motion timelines, staging debris, and event kinematics. Use $threejs-camera-controls-and-rigs for camera-relative readability and velocity framing. Use $threejs-bloom and $threejs-image-pipeline when the shared post stack or exposure path is the primary task.
