Procedural Planets

Procedural Planets

Build a planet from an explicit surface-mapping and LOD decision, not a fixed recipe. The default globe/orbit path is a streaming cube-sphere quadtree with 2:1-balanced neighbors, continuous LOD morphing, and instanced/indirect patch submission. A local tangent geometry clipmap can own sustained ground-scale views; a hybrid hands it to the global quadtree. The same planet-space causes must drive geometry, normals, material identity, scientific/query outputs, diagnostics, and atmosphere handoff.

Any planet output consumed by dynamics, contact, navigation, water, weather, or another physics domain must use the route's physics-domain and interaction contract. Publish typed PhysicsSignalDescriptor records bound to the active PhysicsContext through the canonical IDs, physics frame/origin epoch, transform/chart, clockId/samplePhase, channels, represented-footprint/ filter, validity/perChannelError, residency/cadence/latency, state/resource version, and missing-channel envelope. Every PhysicsSampleRequest and returned SampledChannel.actualPhysicsTime, including static/analytic results, carries a direct canonical PhysicsInstant | PhysicsTimeInterval, never the generic PhysicsTime wrapper; time is not an extra descriptor field. A quadtree tile, render LOD, TSL function, or cache texture is never the public physics ABI. The planet/body-field owner is the sole state-equation owner for its physics-facing body, gravity, static coast/bathymetry, and hydrology-analysis revisions. Its PhysicsGraph stages write provisional versions; exactly one all-or-none PhysicsCommitGroup publishes each accepted revision with CommitPublicationLineage. A project coordinator may commit those prepared versions atomically but never becomes a second owner. Do not expose a new descriptor revision before that commit appears in PhysicsExecutionLedger. When committed state is rendered, publish the immutable PhysicsPresentationCandidate -> CameraViewPublication -> ViewPreparationPublication -> PhysicsPresentationSnapshot -> FrameExecutionRecord chain. The candidate stays view-independent; field bindings carry independent previous/current provenance and leased state handles. Camera publication owns render mapping, view preparation owns per-view LOD/caches/shadows/resets, and the sealed snapshot references binding IDs and leases rather than copying state or transforms. Never mutate an earlier record to report a later phase or completion. Treat cube-face UV, longitude/latitude, geodetic coordinates, and tangent parameterizations as nonlinear charts, not Cartesian frames. Publish their metric/Jacobian, domain/seam validity, and chart version; express physical vectors in a declared orthonormal body/world frame. When dynamics need gravity, publish a point/time vector signal in m s^-2; never substitute world -Y, radial up, or a normalized surface normal.

Do not load this skill merely because a scene contains islands. A bounded archipelago, coastal site, bathymetric model, or isometric land tile whose planetary curvature, horizon, global geodesy, and orbit-to-ground transition are outside the visual/error contract belongs to $threejs-procedural-fields plus $threejs-procedural-geometry, with $threejs-procedural-materials and the appropriate water skill as consumers. Use this skill only when the body-scale surface map, curvature, global LOD, georeference, or atmosphere handoff is an observable cause.

Canonical implementation contract: examples/webgpu-quadtree-planet/. Run node examples/webgpu-quadtree-planet/validate-planet.mjs after edits.

Legacy WebGL implementation (deprecated, do not extend): examples/procedural-planet-surface/planet-system.js and examples/procedural-planet-surface/terrain-field.js.

Required Architecture

1. Use WebGPURenderer from three/webgpu, MeshStandardNodeMaterial or MeshPhysicalNodeMaterial, and TSL from three/tsl.
2. Choose normalized cube, spherified cube, or a verified equal-area mapping from distortion/error requirements. For plain normalization, the derived area-element ratio J_center/J_corner = 3*sqrt(3) ~= 5.196; uniform UV sampling is therefore about 5.196 times denser at a corner. Never call it uniform. Represent global bodies as six 2:1-balanced face quadtrees with stable edge/corner ownership and conservative displaced bounds.
3. Generate canonical surfaceDirection from face/patch/grid metadata. Preserve it separately from displaced position. Validated mapping derivatives feed projected error and normals. Apply the shared physical-pixel projected-error contract to the complete displaced patch support and every active view; altitude or patch-center distance alone is not an LOD metric.
4. Define shared TSL Fn field functions for displacement, material causes, gradients, queries, and diagnostics. Compute-baked and direct dynamic paths call the same functions; render nodes may sample their versioned cache outputs instead of reevaluating them. Do not maintain duplicate field math. Parity-bearing value-noise corners use the lowbias32-u32-lattice integer hash family: its multipliers/shifts are an [Authored identity], not a quality claim. CPU uses Math.imul/>>> 0 wrapping, and TSL uses uint arithmetic plus the exact same identity constants. Do not use transcendental hashes for CPU/GPU parity paths.
5. For static or slowly changing bodies, compute-bake height, tangent gradient, and material causes into dirty patch tiles; rendering samples the cache instead of reevaluating macro geology every frame. Use StorageBufferAttribute, StorageInstancedBufferAttribute, and r185 IndirectStorageBufferAttribute/BufferGeometry.setIndirect() where the target supports the selected indirect command contract. Do not use float atomics for min/max; reduce floats in workgroup memory or use a proven ordered-integer encoding.
6. Build crater, biome, hydrology, snow/ice, volcanic, ridge, humidity, and temperature fields as coupled causes. Do not author isolated color noise after terrain. When planetary coastlines feed a water system, export the mean-surface, bathymetry, metric coast-distance/frame, material, version, and uncertainty contract from the fixed body analysis field; do not make the water renderer rediscover coast topology from a transient render LOD. Register every physics-facing body/coast/hydrology field as a typed PhysicsSignalDescriptor; the descriptor's analysis revision and error bounds, not the visible patch level, determine whether a consumer may use it. The environment/project coordinator publishes the immutable EnvironmentForcingSnapshot. Planet fields consume its exact committed version through graph edges; they do not synthesize a second weather state. $threejs-rain-snow-and-wet-surfaces owns precipitation transport and receiver-side deposition/splash/ripple/wetness/snow effects, not meteorological generation.
7. Filter detail by represented vertex spacing and pixel footprint. Camera altitude may choose policy but is not a frequency filter. Fade contribution strength before aliasing; do not change procedural frequency abruptly.
8. Feed the shared world/body transform, sphere or ellipsoid surface model, metersPerWorldUnit, surface altitude, and radiometric basis to $threejs-sky-atmosphere-and-haze.
9. Use RenderPipeline with node passes for the final stack. Prefer built-in TRAANode, GTAONode, BloomNode, CSMShadowNode, and TileShadowNode when they cover the need; custom nodes must beat or extend them. Default to output-only mrt({ output }); allocate normal, velocity, emissive, or other attachments only for implemented consumers with measured full-frame cost.

Cache-tile gutters are not fixed. Derive the source-support radius from maximum domain-warp displacement plus the largest reconstruction, derivative-stencil, and projected anisotropic-footprint radius, then map the gutter through cross-face ownership.

Submission is part of the algorithm: one indexed grid is reused for every patch at a given topology. Bin visible patches by the four-bit transition-edge mask and submit at most one instanced/indirect draw per non-empty mask/material group. One draw per patch is a diagnostic implementation, not the production mobile architecture.

Read references/planet-field-and-atmosphere-systems.md for the complete field contract, quadtree LOD policy, parity harness, crater model, material assembly, atmosphere handoff, diagnostics, and performance budgets.

Capability Gate And Quality Tiers

Initialize the renderer before allocating compute or storage resources:

await renderer.init();

if ( renderer.backend.isWebGPUBackend !== true ) {
  throw new Error( "threejs-procedural-planets requires a native WebGPU backend" );
}

• Full tier: compute-generated/cached quadtree patches, storage-backed parity samples, GPU patch bounds, node material displacement, node post pipeline, and dynamic atmosphere handoff.
• Balanced tier: same architecture with lower patch density, fewer crater octaves, cached far-field tiles, half-resolution diagnostics, and fewer active node passes.
• Minimum-resident path: native WebGPU with a smaller shared grid, cached field tiles, CPU quadtree updates at a gated cadence, instanced topology-mask bins, no runtime readback, and simpler material channels. It is the same public field/LOD architecture, not an alternate renderer.

Any change to physics state/equations, native cadence or coupling, represented band/footprint/filter, physical error bound, conserved inventory, stable-ID/RNG/ event policy, or physics residency is an exact QualityTransition, not render LOD. Declare source/destination PhysicsQualityStateDescriptors; prepare without publication; commit a gated ConservativeStateMap, inventory and ID/RNG/event-cursor mappings atomically at a step boundary; increment the quality epoch; and retain the old leases until the declared completion join. Reject the transition when no conservative/error-bounded map exists.

Workload And Performance Evidence

Numeric labels: [Derived] follows from equations/representation; [Gated] is an acceptance bound; [Measured] names target evidence; [Authored] is a starting visual/quality choice.

The following are [Authored] workload trials, not device classes, budgets, or measured claims:

Keep the far field static. Rebuild only newly visible/dirty patch tiles, body-identity changes, or LOD-frontier crossings. Report the [Derived] triangle count activePatches * 2 * (gridSide - 1)^2, cache bytes, indirect bytes, field evaluations, and overdraw; active-patch count alone hides cost. The [Derived] upper bound is 16 transition-mask draws per body/material group, not a universal scene draw budget. The product declares full-frame GPU, CPU-submit, presented-frame p95, and peak-live-byte budgets, then validates the compiled scene. Avoid runtime CPU readback; parity readback belongs to validation.

Color And Output

• LDR color art authored in sRGB uses SRGBColorSpace. Calibrated reflectance, radiance, elevation, or spectral datasets retain their declared linear/data encoding; do not relabel them sRGB because they look like color.
• Data textures, masks, field LUTs, crater atlases, biome tables, and generated diagnostic textures use NoColorSpace/linear data.
• Keep HDR working buffers as HalfFloatType until the single tone-map owner.
• The node post pipeline owns the one output conversion through RenderPipeline.outputColorTransform or an explicit renderOutput() node. Materials and effects must not double-convert.

Non-Negotiable Constraints

• Do not use a single static high-resolution sphere as the general orbit-to-ground path. Choose global quadtree, local clipmap, or their hybrid from camera-domain and distortion evidence.
• Do not assume normalize(cube) is equal-area, and do not select an equal-area mapping without Jacobian and inverse/seam tests.
• Restrict adjacent patch levels to one, use geomorph plus one of 16 transition index masks, and validate cross-face/corner adjacency. Skirts may be a conservative emergency guard, not the crack algorithm.
• Domain-warp tangentially and renormalize; never stretch regions by radial coordinate drift.

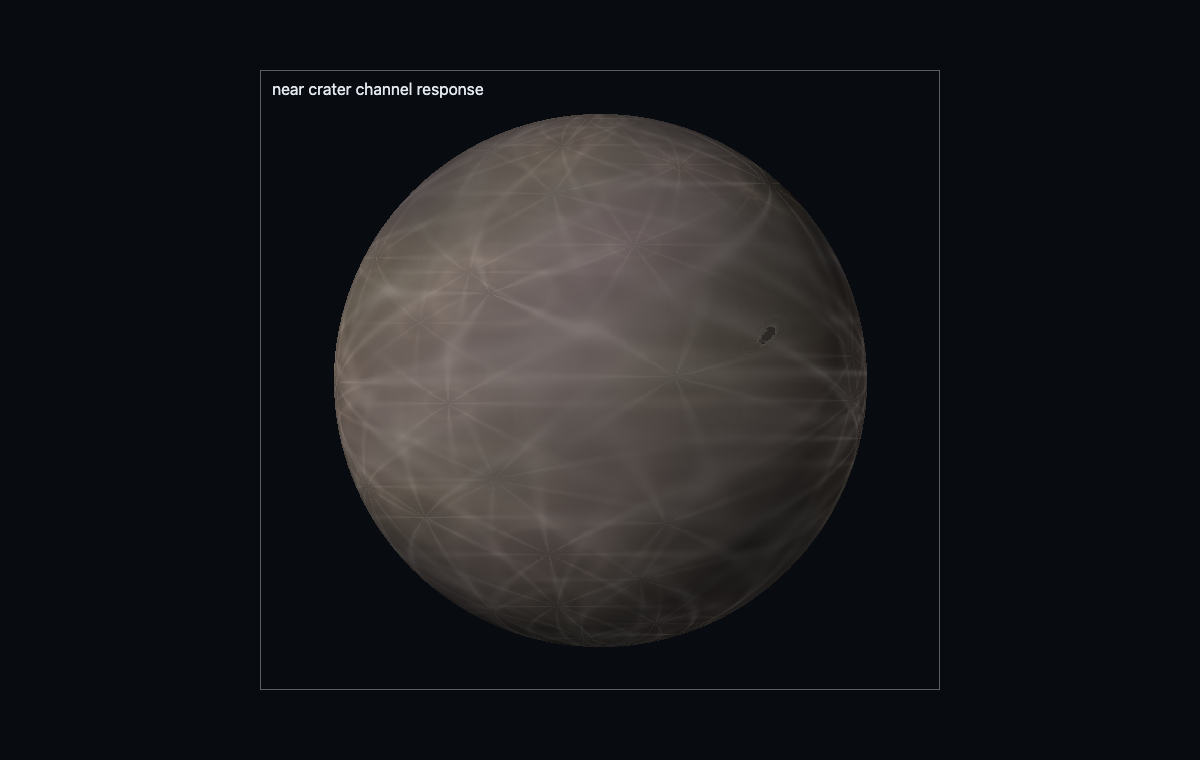

• Craters need floor, wall, rim, ejecta, age/degradation, overlap behavior, and shared material outputs.
• Continents and biomes are region fields derived from geological and climate causes, not isolated threshold bubbles.
• Geometry displacement and material normals describe the same height function.
• Do not promote a fused derivative expression to an analytic-normal path until an independent finite-difference, automatic-differentiation, or symbolic oracle gates value, direction, and scale over seams, warps, craters, and clamps.
• Domain-warp gradients include the chain rule; omitting the warp Jacobian is a shading/displacement mismatch.
• Macro silhouette must survive altitude changes; micro detail may fade out.

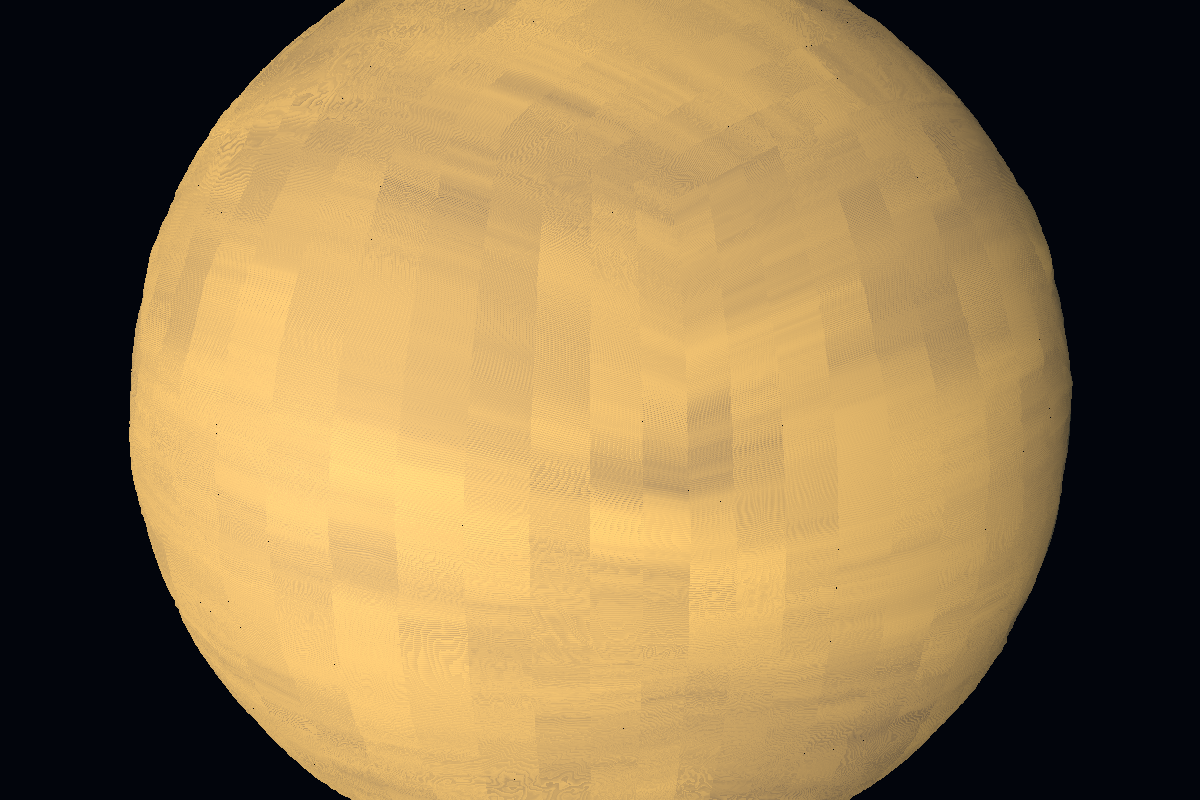

• Expose field views, patch error, parity error, detail weights, and displacement exaggeration.
• Reject physics queries whose PhysicsContext, body/world frame, origin epoch, analysis revision, validity, footprint, or error bound does not match; never convert a missing or ambiguous planet sample to a plausible zero.
• A render floating-origin rebase changes only presentation transforms and its render-origin epoch; it never changes physicsOriginEpoch, body-field source/state revision, stable identity, or SI values.

Completion Test

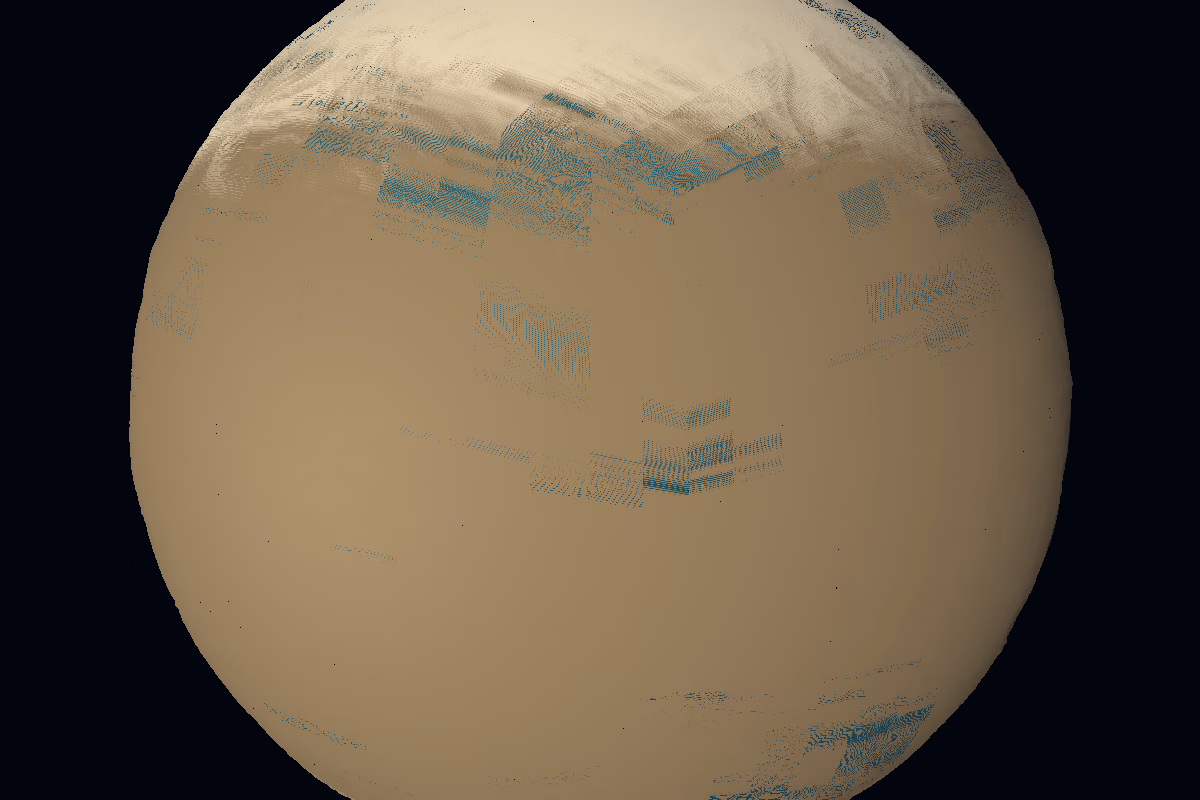

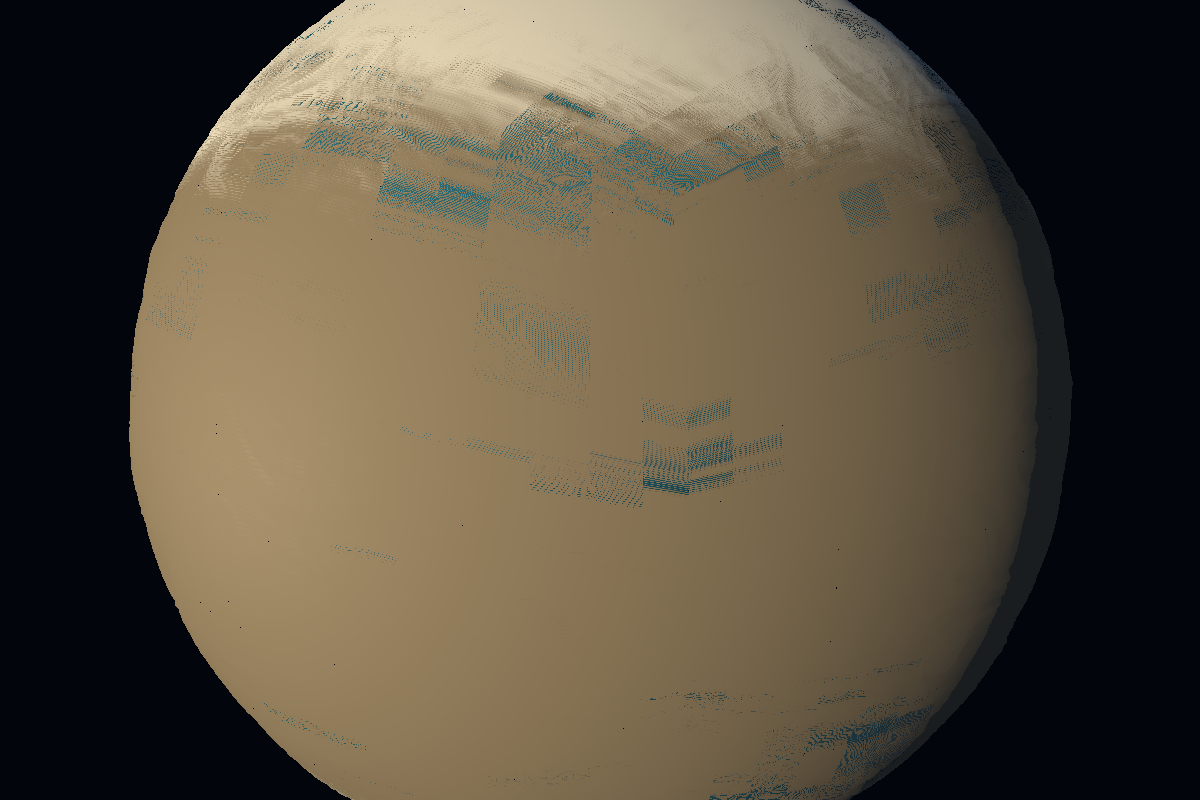

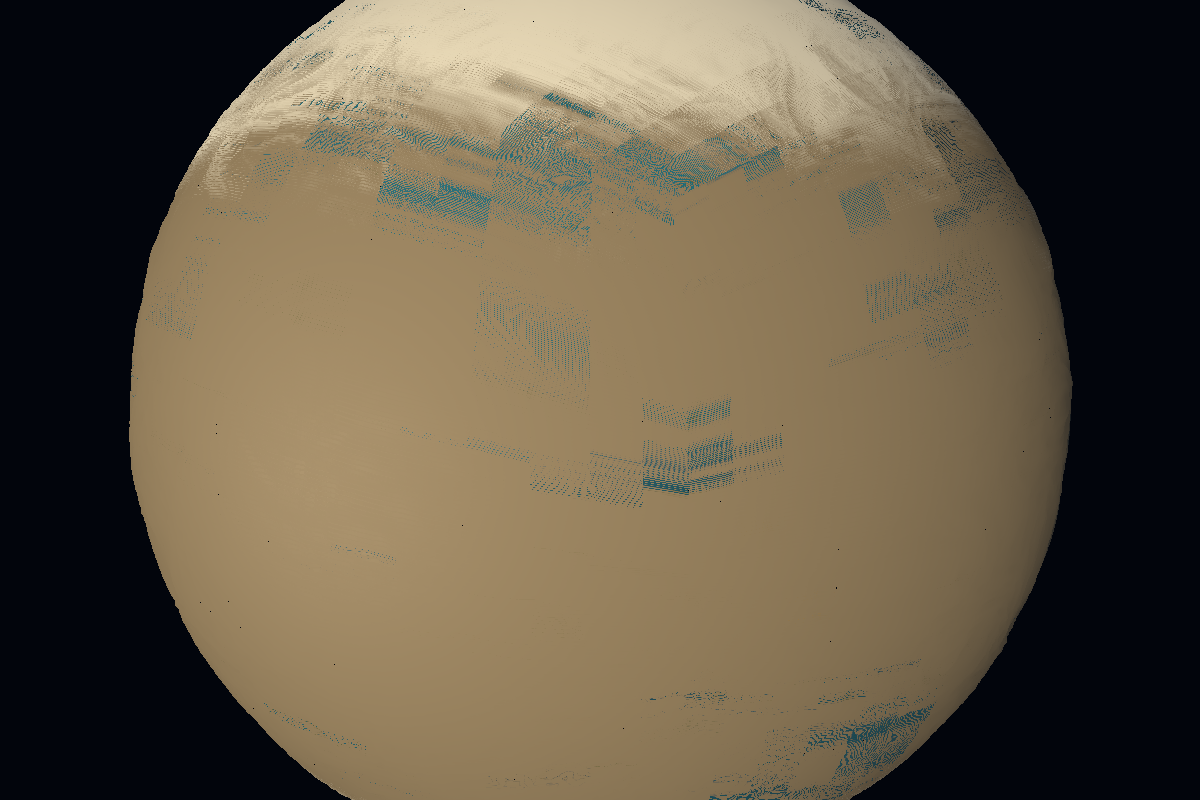

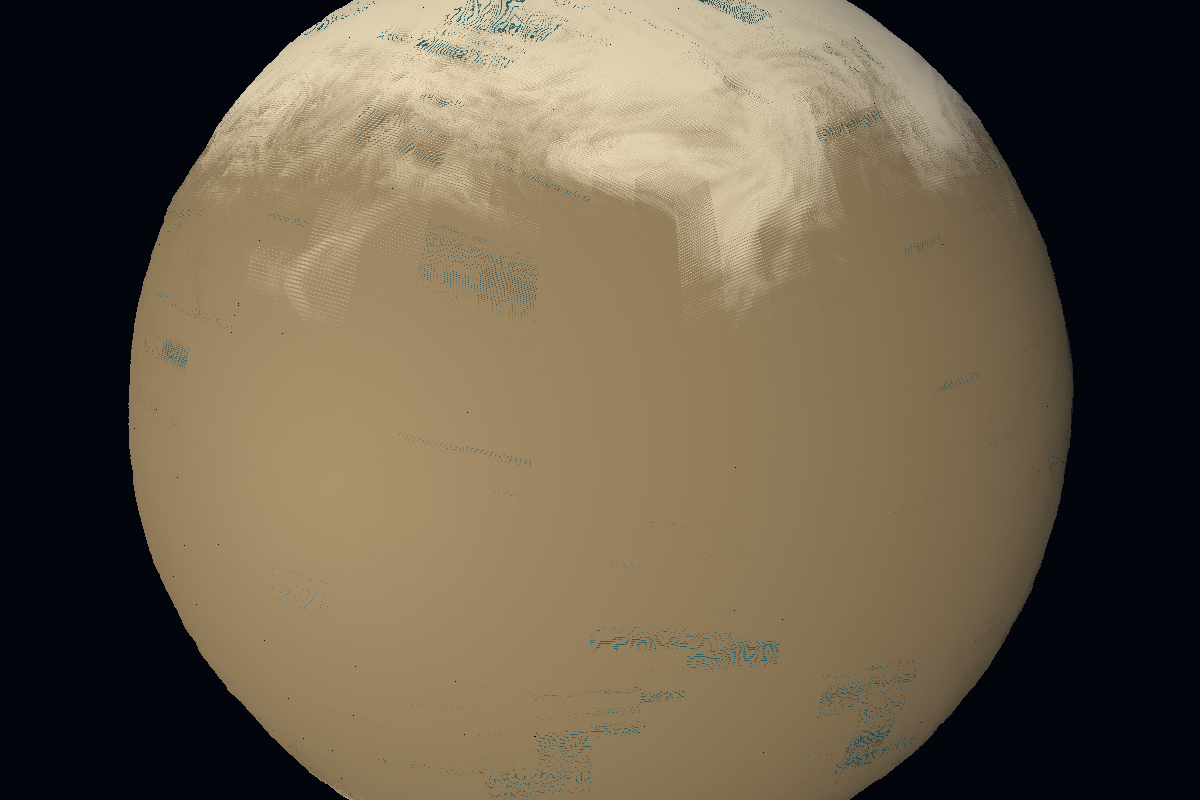

Validate at fixed cameras and [Authored] at least three seeds:

• unlit silhouette;

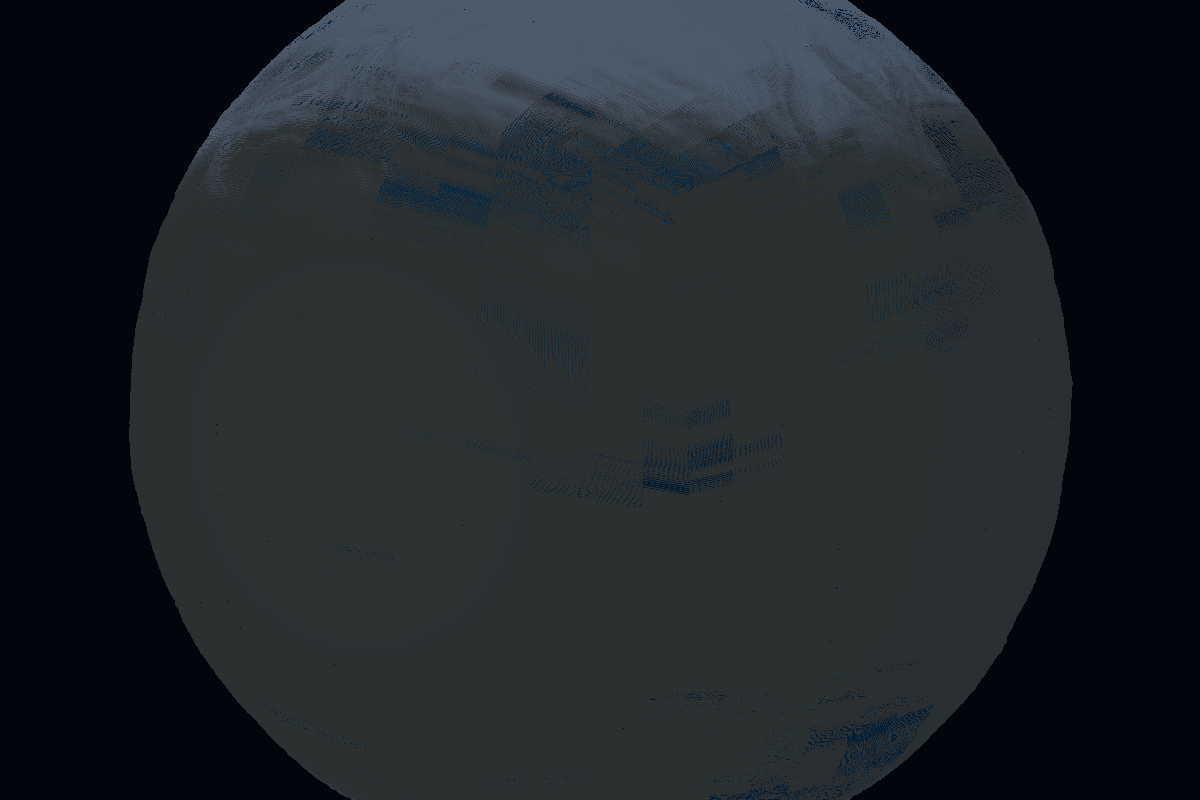

• flat albedo with atmosphere disabled;
• grazing directional light;

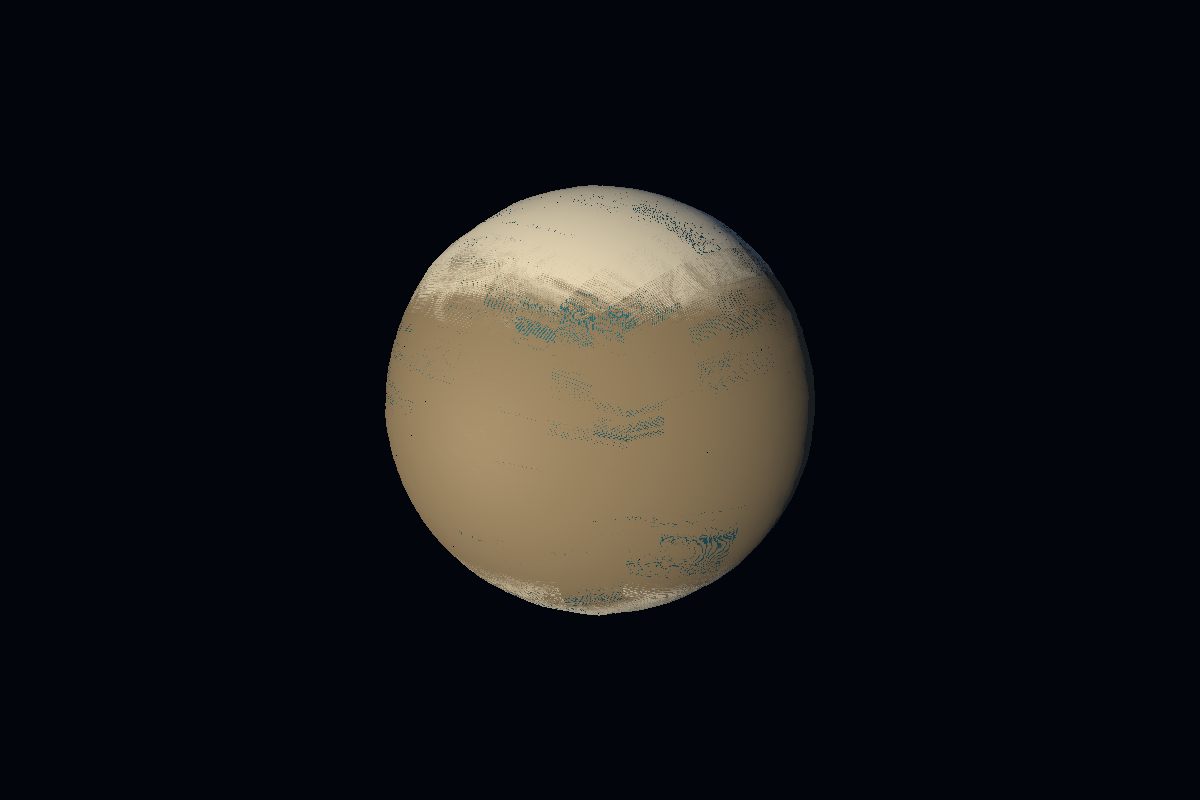

• orbit, horizon, and close-approach views;
• surface-map Jacobian/area report, cross-face edge/corner equality, restricted neighbor invariant, and all 16 transition-mask crack tests;

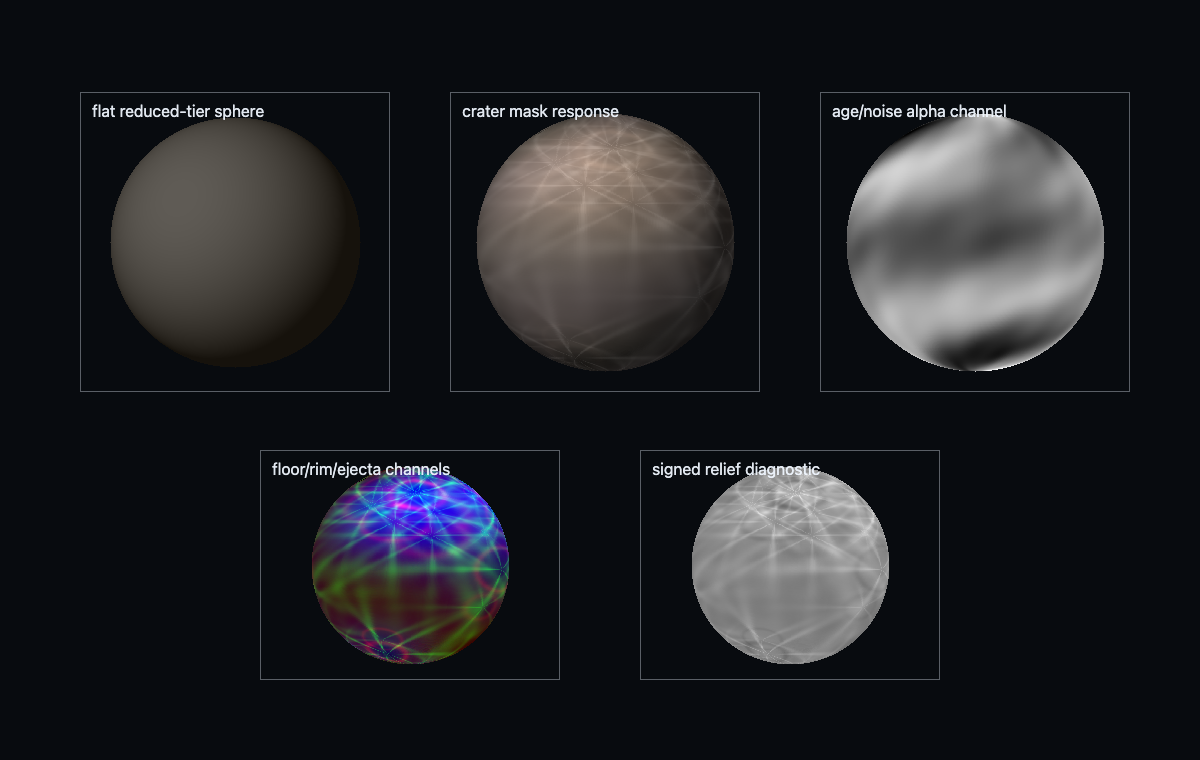

• biome-mask, crater-topology, normal-only, roughness-only, and patch-error views;
• PhysicsGraph stage/edge/execution rows, commit-group atomicity, and publication lineage for every physics-facing body/gravity/coast/hydrology revision;
• prepare/commit/retire evidence for every supported runtime physics-quality transition, including inventory, error/filter, cadence, and stable-ID maps;
• CPU query versus TSL compute parity samples with per-channel max, mean, p95, worst direction, and metric height error. Report normal angular error only after derivative correctness is independently established;
• atmosphere handoff masks and shell/post blend from $threejs-sky-atmosphere-and-haze.
• instanced/indirect surface draw count, actual triangle count, cache hit/byte totals, CPU/GPU p50/p95, and zero runtime readbacks.

Routing Boundary

Use $threejs-choose-skills for multi-system preflight when planets are part of a larger scene. Local islands and coastal scenes without observable planetary curvature/global LOD route to $threejs-procedural-fields and $threejs-procedural-geometry, not here. Use $threejs-procedural-fields for reusable field bundles without a complete body, $threejs-procedural-materials for standalone material authoring, $threejs-ambient-contact-shading for custom GTAO work beyond the built-in node, $threejs-scalable-real-time-shadows for large-world shadow policy, $threejs-image-pipeline for shared gbuffer, velocity, and output ownership, $threejs-visual-validation for screenshot and GPU proof, $threejs-exposure-color-grading for metering and tone-map ownership, $threejs-water-optics for water volume optics, $threejs-volumetric-clouds for cloud volumes, $threejs-rain-snow-and-wet-surfaces for precipitation transport and receiver effects, and $threejs-sky-atmosphere-and-haze for scattering independent of planet generation. This skill owns the coupled planetary surface and its LOD/parity architecture. For a planetary ocean, it owns the static reference surface, coastline, bathymetry, seabed classes, and their error metadata; the water skill owns the time-varying free surface, flow/wave state, foam, and optics. The environment/project coordinator owns the shared EnvironmentForcingSnapshot; neither the planet nor rain skill independently generates meteorology.
