Visual Validation

Visual Validation

Validate the mechanism that creates the image, its error, and its sustained cost. A polished frame is not proof. The canonical path is current Three.js with WebGPURenderer, TSL, NodeMaterial, RenderPipeline, built-in post nodes, and compute/storage evidence whenever the implementation uses GPU-side state.

Acceptance Contract

Accept only when all of these agree:

authored physical and visual invariants
  -> inspectable implementation and ownership graph
  -> mechanism-isolation diagnostics
  -> invariant-specific visual-error measurements
  -> sustained performance and resource evidence on the target
  -> final image inside the declared viewing envelope

Define the contract before tuning. Each invariant names its observable, reference or analytic truth, diagnostic, metric domain, mask, acceptance gate, and blocking failure. Pixel similarity alone cannot prove geometry, radiometry, field evolution, temporal reconstruction, or resource ownership.

Numeric Evidence Labels

Every numeric value in a contract, manifest, table, caption, or conclusion must carry exactly one label and a source:

• Authored: a declared input or policy fixed before the run;
• Derived: computed from labelled inputs by a recorded formula;
• Measured: observed during this run, with method and sample scope;
• Gated: an acceptance bound fixed before inspecting the candidate result.

Serialize numeric evidence as { value, unit, label, source }. Do not publish bare budgets, sample counts, resolutions, percentiles, quality constants, or error thresholds. p50 [Measured] and p95 [Measured] name estimators; their reported values still use the numeric-evidence record. A gate derived from a frame envelope is stored twice: the computed envelope as Derived and the frozen acceptance limit as Gated, with the latter citing the former.

Required Architecture

The validation surface uses:

• WebGPURenderer from three/webgpu, initialized before capability checks;
• TSL nodes from three/tsl and the matching NodeMaterial family;
• one RenderPipeline ownership graph using pass(), mrt(), PassNode.setResolutionScale(), and a single output-transform owner;
• built-in nodes first where they implement the required mechanism;
• renderer.compute() or renderer.computeAsync() and storage-resource evidence when simulation, culling, compaction, histories, or generated instance data are GPU-owned;
• deterministic automation for fixed cameras, time, seed, viewport, DPR, quality state, and diagnostic mode.

After initialization prefer renderer.compute() for submission. In r185, computeAsync() is not a GPU-completion fence; CPU-visible completion needs an actual readback/map, while GPU timing needs resolved timestamp evidence.

Use references/graphics-validation-protocol.md for the artifact schema, timing protocol, target/storage/bandwidth inventories, visual-error families, lifecycle tests, and rejection criteria.

Capability Gate

Set trackTimestamp: true when constructing WebGPURenderer whenever the predeclared contract requires GPU timing; requesting it after initialization is too late. Record backend truth only after initialization:

await renderer.init();

if (renderer.backend.isWebGPUBackend !== true) {
  throw new Error('WebGPU backend required for canonical visual validation. Report the blocker. Only when the user explicitly requested teaching how to apply fallback when WebGPU is unavailable may threejs-compatibility-fallbacks be loaded.');
}

After the gate, record revision, renderer/backend identity, output color space, tone map, sample count, depth mode, output buffer type, compatibility mode, timestamp support, adapter features, and adapter limits. Wrap every numeric capability or enum in the numeric-evidence record; do not serialize raw numbers.

Budgeted tiers retain the canonical WebGPU mechanism and name every visual loss. They are not compatibility branches. This skill never teaches or embeds a non-WebGPU fallback.

Required Evidence

• visual-contract.json: invariant-to-artifact bindings, numeric-evidence policy, target refresh envelope, visual-error gates, performance claims, and blocking failures;
• evidence-manifest.json: renderer/backend, target device, browser, display refresh, gated presentation rate, camera, seed, time, viewport, DPR, quality state, assets, color pipeline, post graph, stochastic masks, and known compromises;

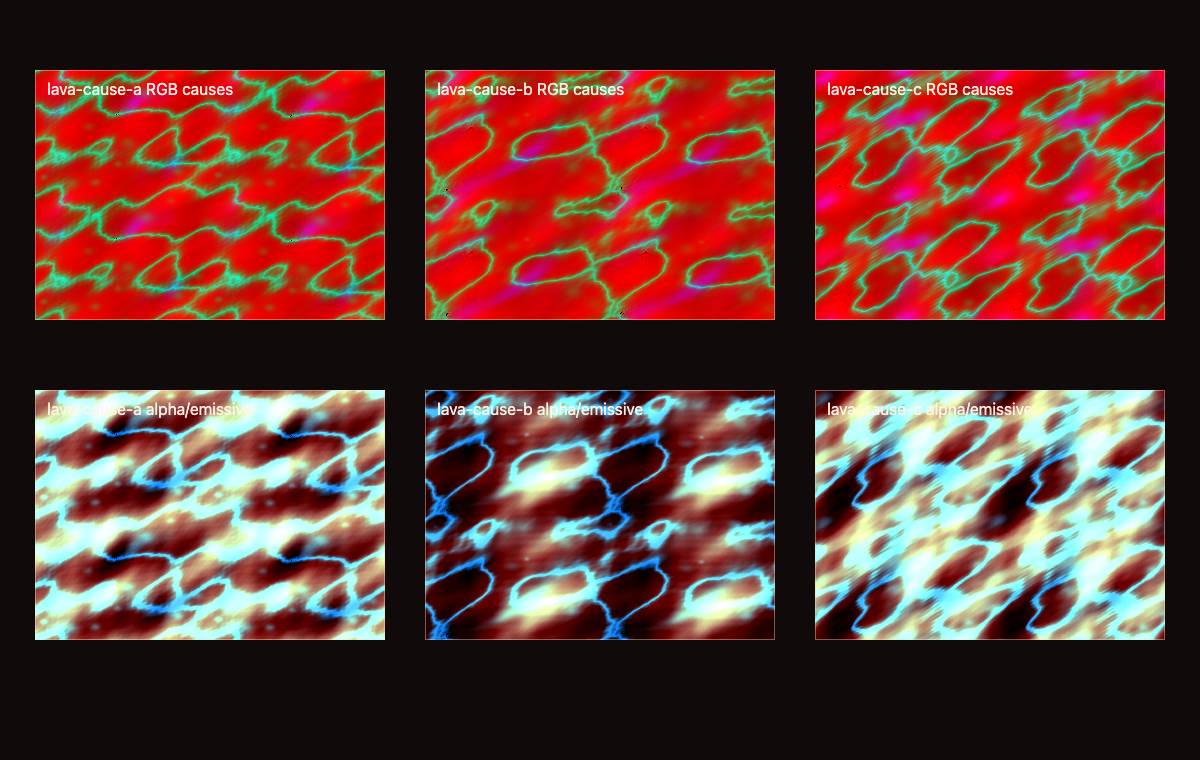

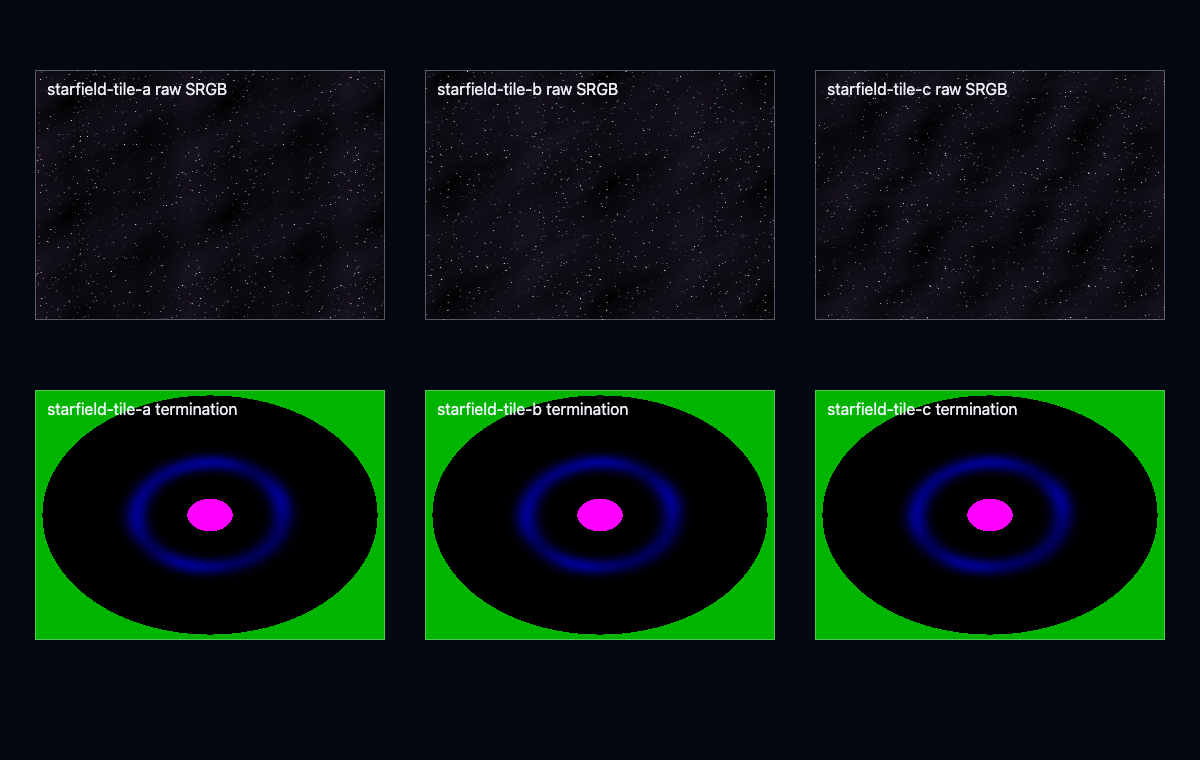

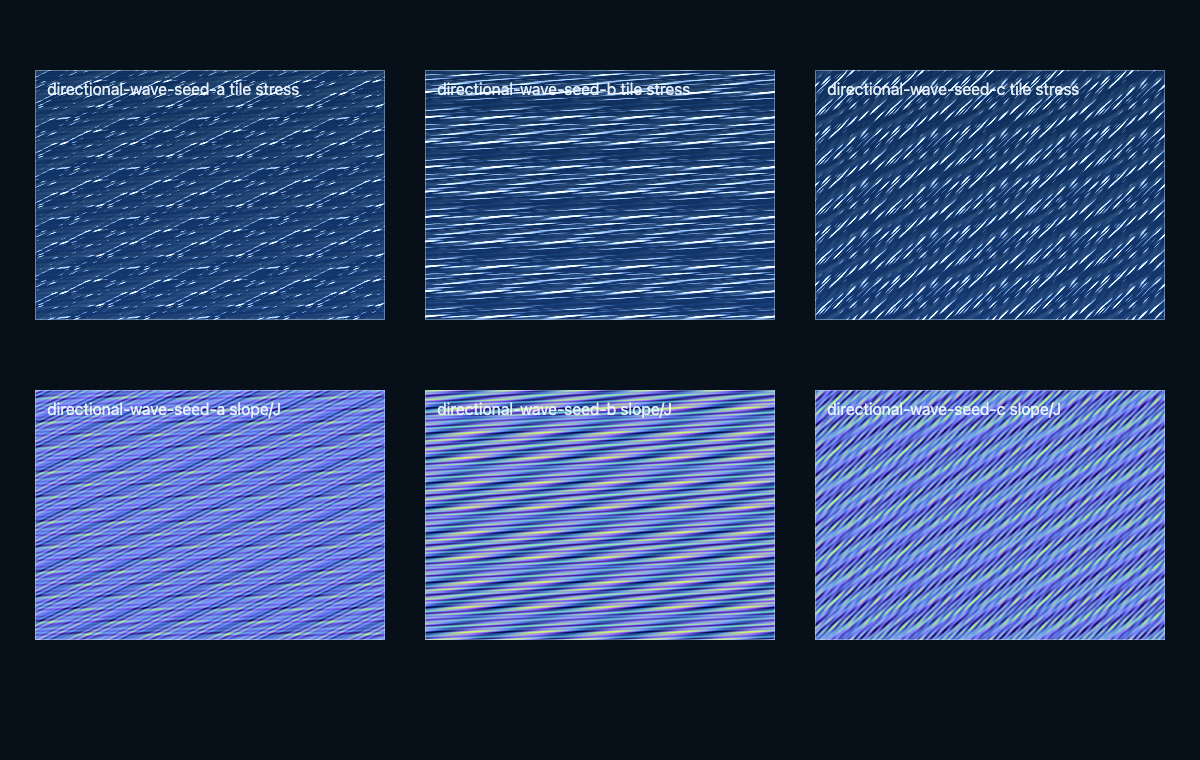

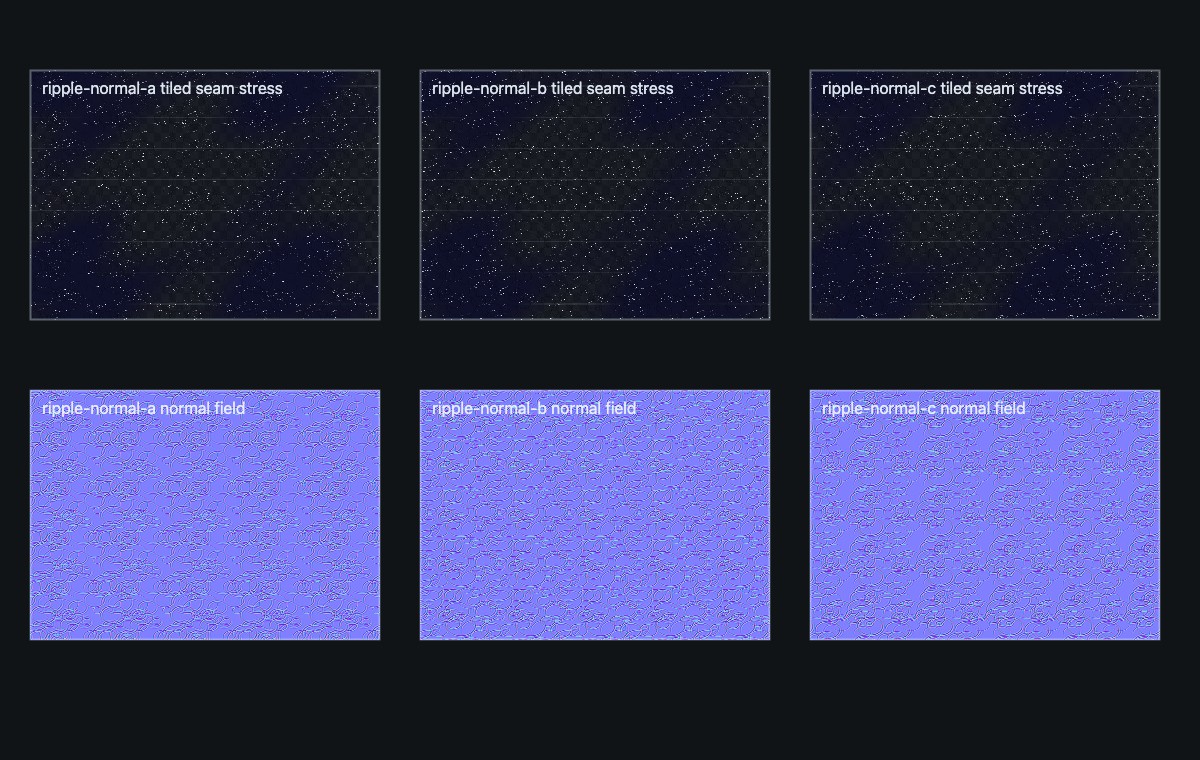

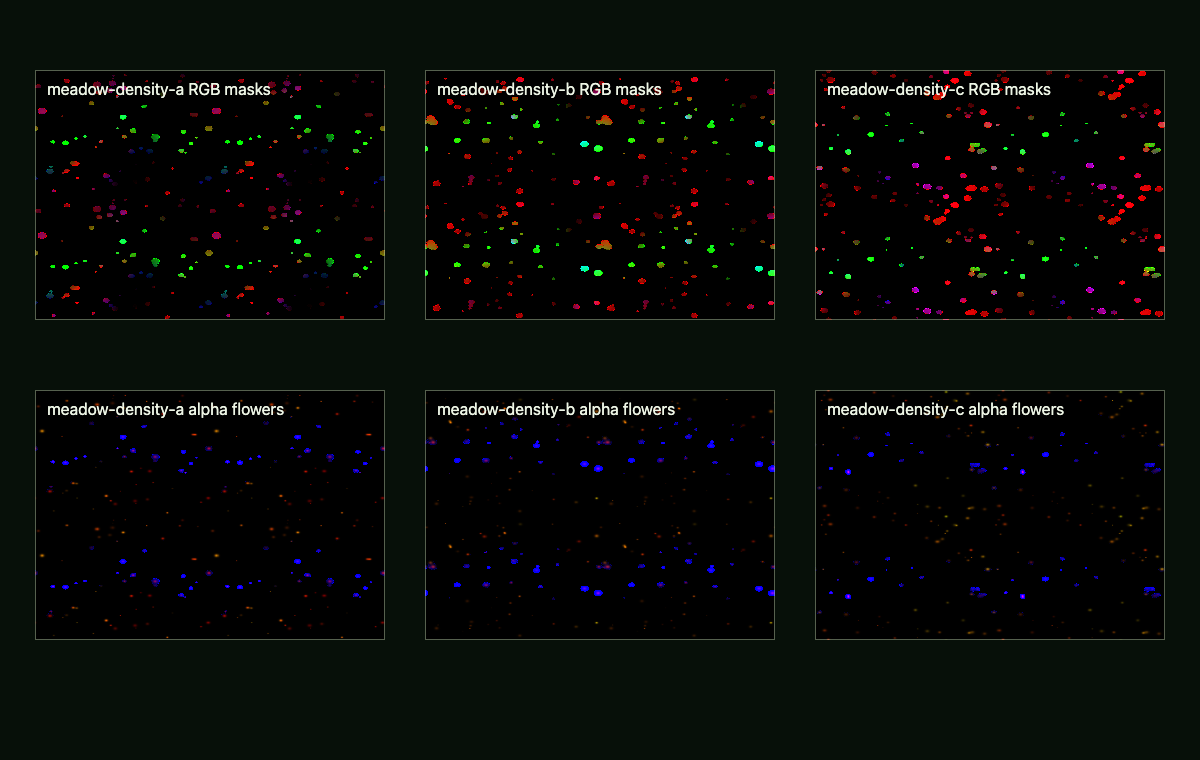

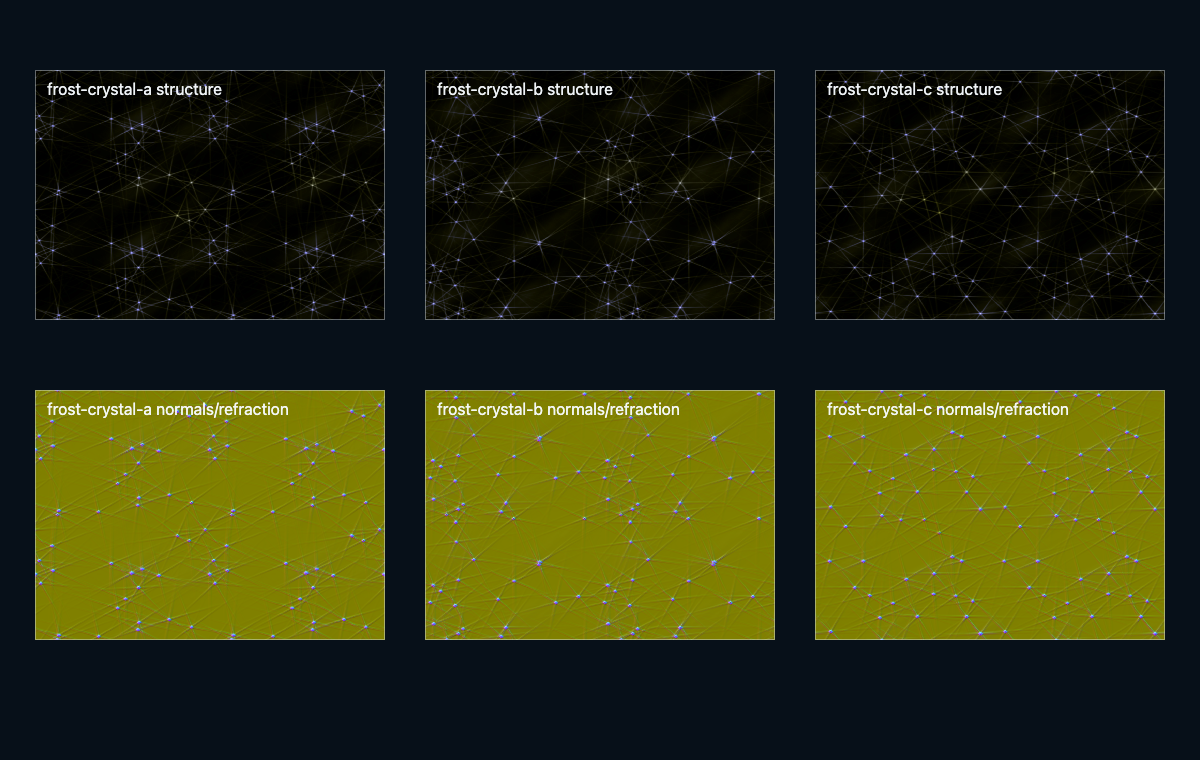

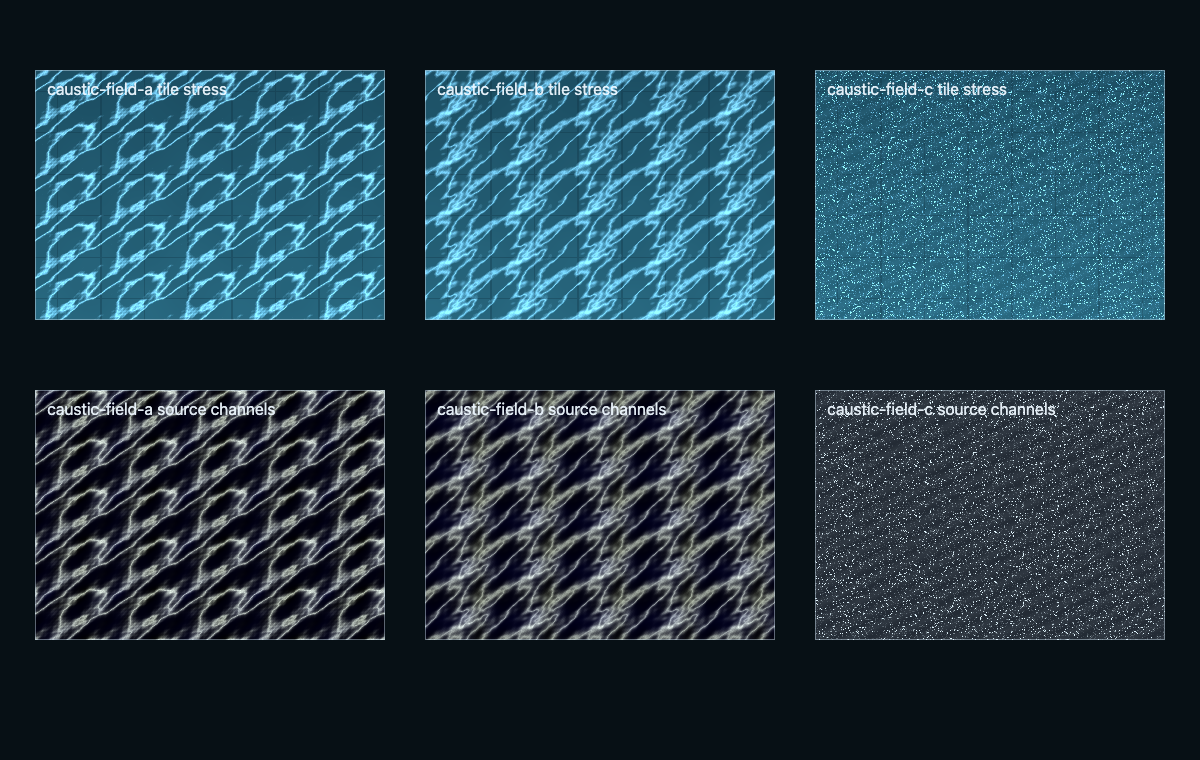

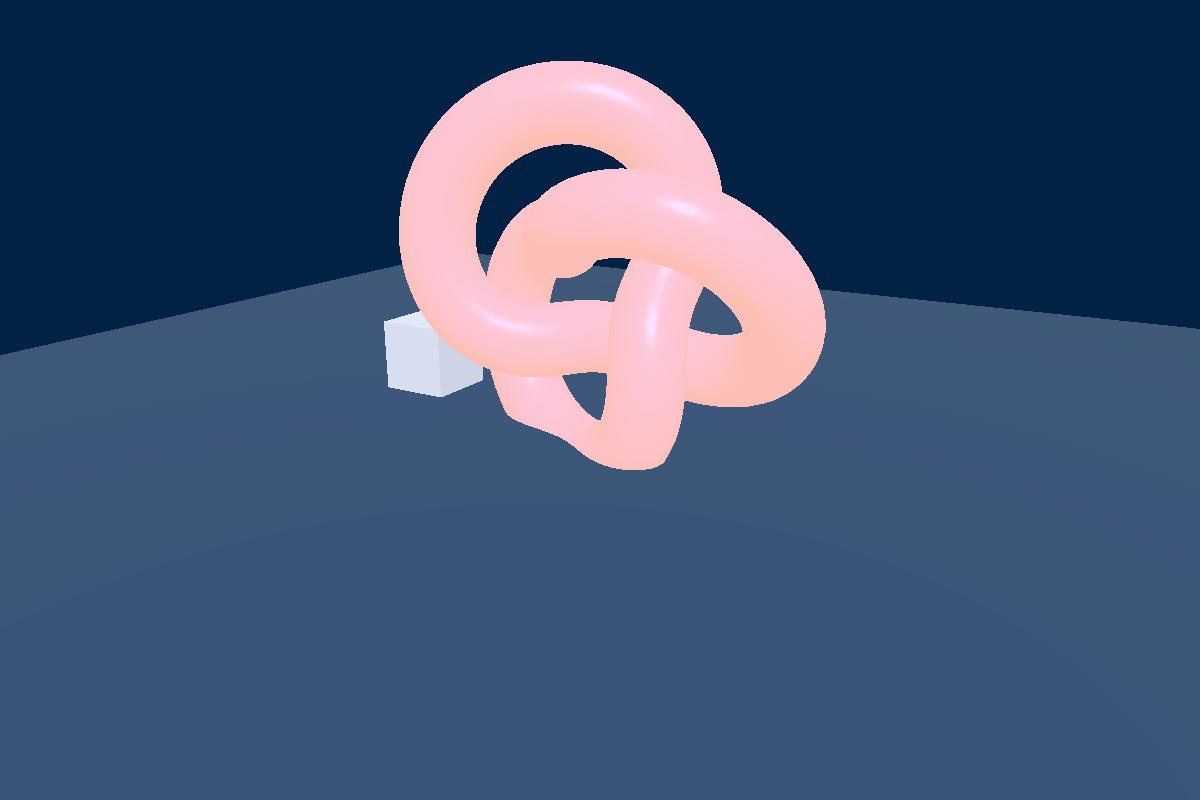

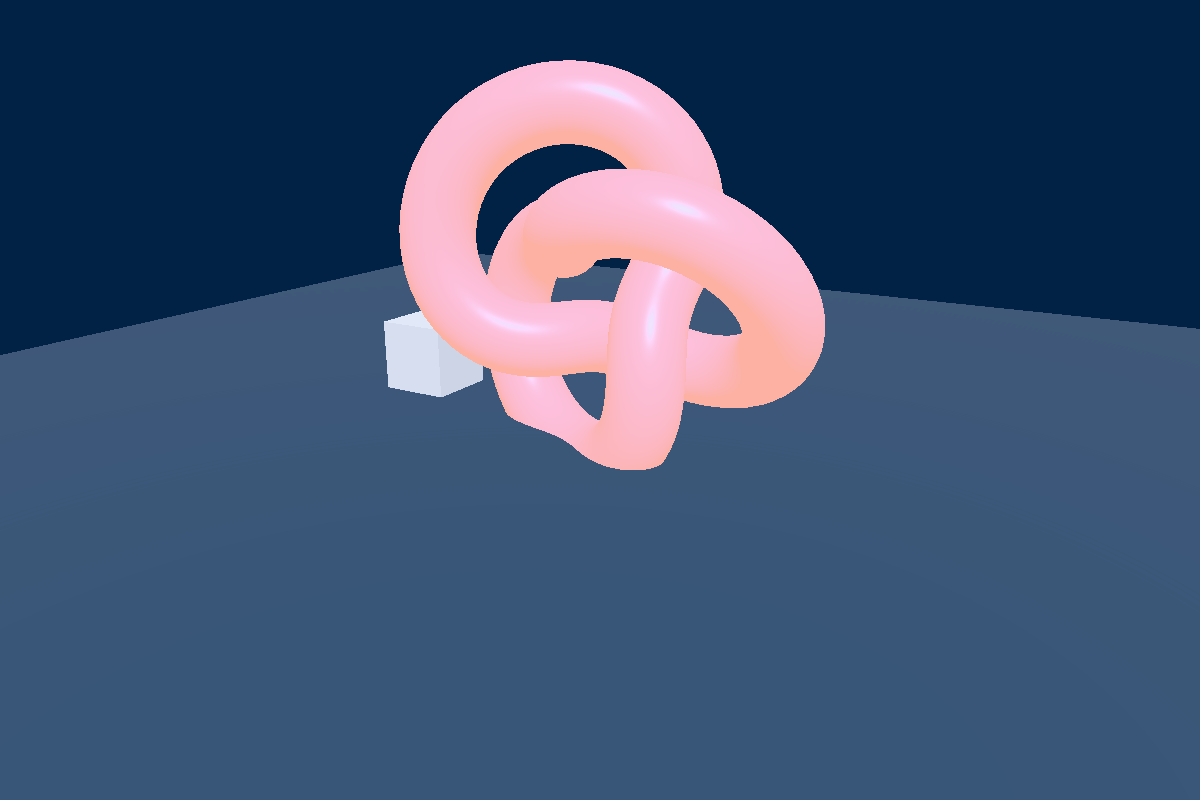

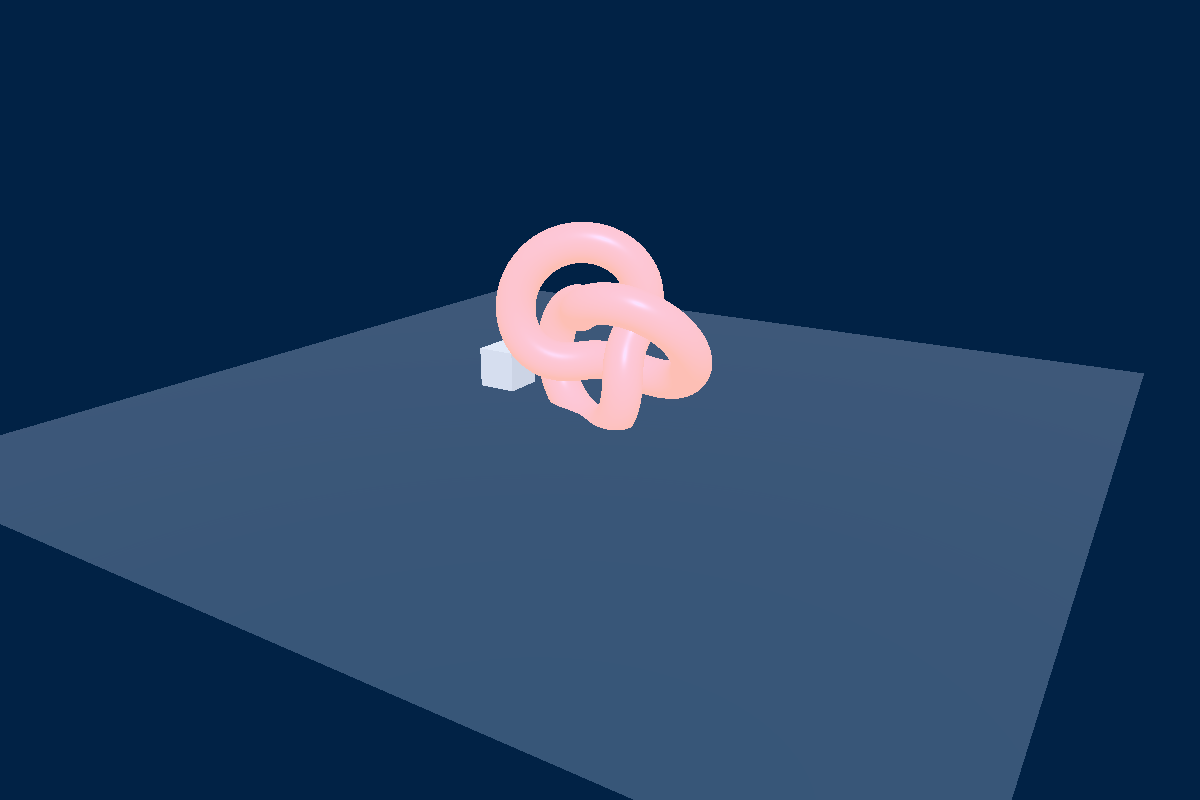

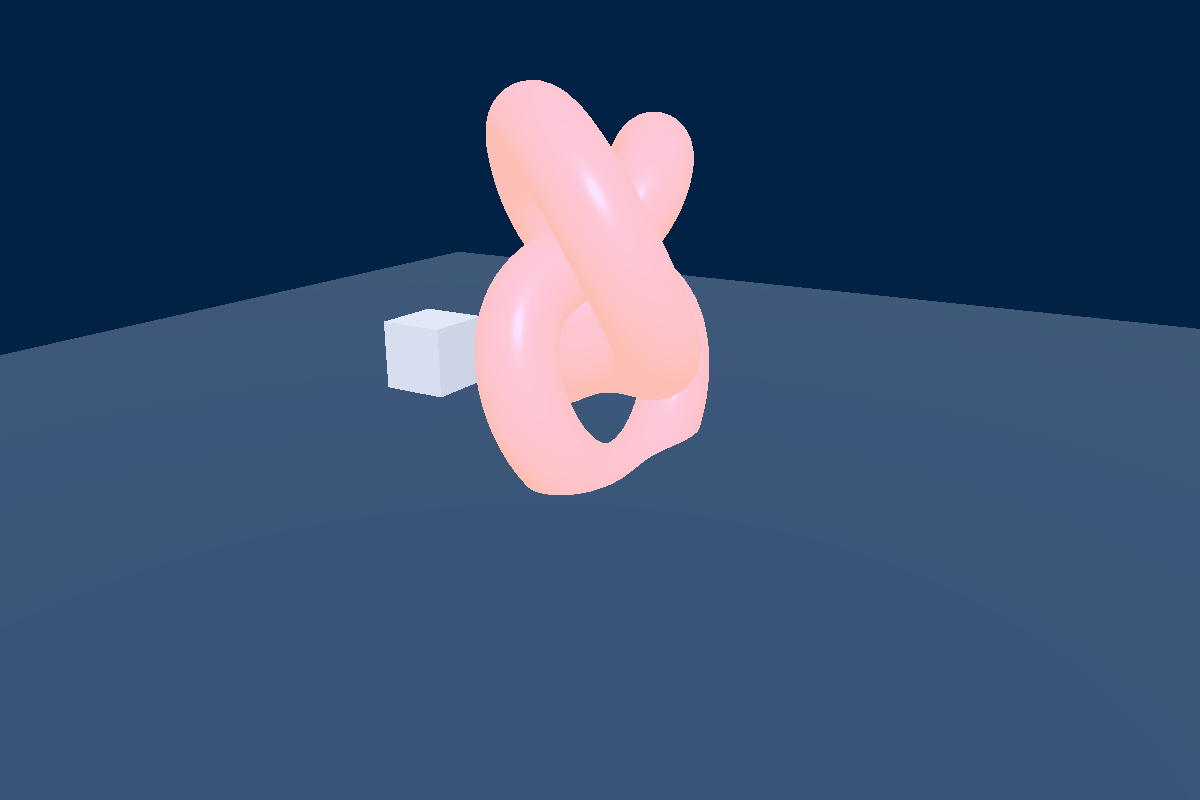

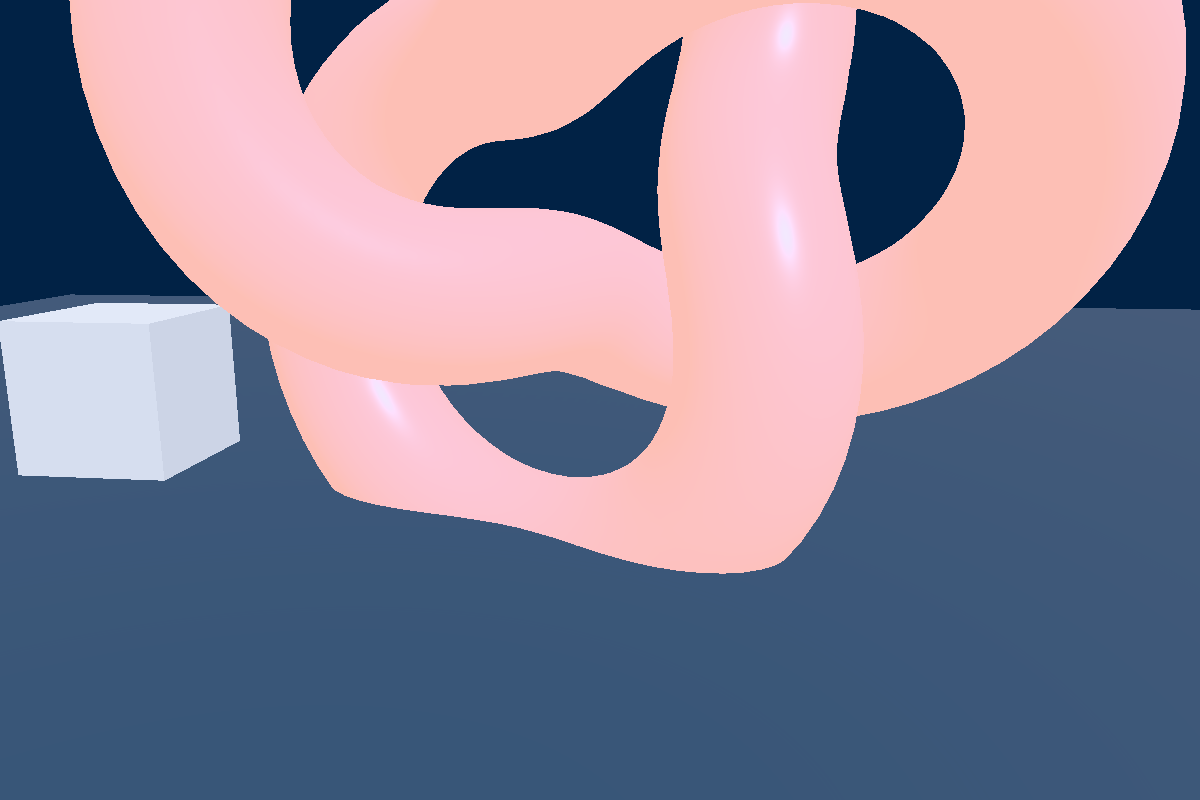

• final, no-post, contribution, diagnostic, near/design/far, representative seed, stress, and temporal captures as applicable to the contract;
• pipeline graph: output owner, pass dependencies, MRT outputs, resolution scales, histories, and diagnostic routes;
• resource ledger: textures, geometry, uniforms, render targets, storage, histories, staging/readback allocations, peak transient liveness, and owner;
• tile-GPU traffic model: attachment load/store/resolve behavior, per-pixel attachment footprint, sampled/storage traffic bounds, and uncertainty;
• timing trace: warm-up, cold and sustained windows, p50 [Measured], p95 [Measured], deadline misses, GPU timestamps when required, browser and compositor reserves, presentation cadence, and capture overhead separated;
• quality-governor trace: decision inputs, thresholds, hysteresis, dwell time, tier transitions, visual error per tier, and final stable tier;
• lifecycle evidence: resize, DPR and tier changes, history reset, teardown, device errors, and dispose/recreate loops with before/after resource counts.

Pack-Wide Physics Integration Gate

Use the canonical physics domain and interaction contract whenever two or more physical domains or a physics-to-render boundary is claimed. Validate the PhysicsContext, provider schemas, scheduler DAG, InteractionBatchLedger, InteractionReactionGroup, ConservationGroup, PhysicsPresentationCandidate, sealed CameraViewPublication, ViewPreparationPublication, PhysicsPresentationSnapshot, LightingTransportSnapshot, and append-only FrameExecutionRecord; a polished coupled animation is not interface proof.

The sealed Snapshot is per presentation target/view and deliberately contains references. Validate adjacent previous/current presented states and independent provenance in Candidate pairs, complete render instants/transforms/matrices in CameraViewPublication, reactive/reset/resource publications in ViewPreparationPublication, and the Snapshot's exact transitive ID/lease/event closure. Do not define or accept a reduced validation-local schema. Motion bindings cover rigid, skinned, instanced, and procedural deformation plus spawn, despawn, teleport, reparent, and LOD validity. Motion vectors from solver n/n+1 endpoints fail.

Validate the acyclic lifecycle:

simulation/provider commits + origin rebase
  -> immutable PhysicsPresentationCandidate
  -> per-view CameraViewPublication
  -> per-view ViewPreparationPublication
  -> sealed PhysicsPresentationSnapshot
  -> depth/velocity/radiance/history/output consumers
  -> append-only FrameExecutionRecord of completed reset/submit actions

No stage mutates an earlier immutable record. A one-frame-deferred alternative is legal only when declared and when the current frame continues using the exact prior committed resource/version named by its snapshot. GPU descriptors pin generation, layout, entity-map, slot, and a queue-safe lease through every consumer submission and until its central reuseProhibitedUntil condition is satisfied; retirement must appear in FrameExecutionRecord.leaseDispositionById with its completion join/evidence. Do not equate logical state version, submission epoch, GPU queue availability, or host visibility; computeAsync() is not a fence. A pre-seal failure must append a FrameExecutionRecord with aborted overall status (or partial-failure when another target survives), exclude the failed target from snapshotIds, store typed absence in its target execution's snapshotId, cancel/defer actions, retire only failed-target-exclusive preparation leases, and retain Candidate leases until every surviving consumer joins through leaseDispositionById. Device loss must append overallStatus: device-lost and affected target statuses device-lost, advance deviceLossGeneration, cancel actions, and invalidate lost-generation resources/leases without mutating immutable Candidate/Snapshot records or fabricating a completion token. Rebuild histories and timing proof under the new generation.

Acceptance requires schema/version/unit/axis checks; DAG edge and barrier ordering; step/subcycle convergence for numerical solvers; provider validity, uncertainty, and error propagation; source/flux/conservation and equal-and- opposite reaction residuals for claimed conserved quantities; rebase invariance; deterministic reset; and conservative quality-state migration. Require the exact central QualityTransition when a migration changes physics-facing state or provider semantics, cadence, represented support/band/filter, error bounds, inventories, stable IDs/RNG streams, or event and exact-once application-ledger cursors. A render-only tier change may remain local only when those contracts and every committed physical version are unchanged; the trace must prove that exclusion. Every unsupported channel must remain explicitly unavailable rather than becoming zero or an invented adapter default.

Validate exact ledger and publication closure, not record presence. Every ErrorPropagationLedger input, transform/filter/interpolation, local term, correlation rule, output error, and consumer gate must resolve. Every applied InteractionRecord.applicationLedgerKey must resolve to exactly one accepted row in the canonical InteractionApplicationLedger, matching its batch's sequence range, per-consumer cursor, and exactOnceApplicationLedgerVersion. Every successful commit must close its PhysicsStageWrite and StateAdvanceClaim through PhysicsPreparedPublication, PhysicsCommitGroup, PhysicsCommitTransaction, PhysicsCommitReceipt, and exact CommitPublicationLineage, including content/publication digests, dependency completions, gate results, and the single atomic registry swap. The Candidate, Camera, ViewPreparation, sealed Snapshot closureManifest, plannedConsumerActions, submitted pass/dispatch keys, action results, completion tokens, and lease dispositions are one immutable render-plan closure through FrameExecutionRecord; no orphan, duplicate, subset, or superset is accepted.

Run one deterministic end-to-end interaction fixture:

exactly one precipitation ingress per interval:
  causal-cloud PrecipitationEmissionSnapshot
  OR external EnvironmentForcingSnapshot precipitation channels
  -> rain ground/water flux
  -> water mass and momentum source
  -> boat buoyancy/drag/reaction
  -> wake source
  -> wave/breaking dissipation
  -> one foam source/history
  -> shoreline wetness
  -> vegetation wetness/load and boat/terrain/vegetation contact

Capture each provider input/output, event/source record, reaction owner, residual, reactive epoch/mask, reset action, and final visual contribution. Disable each link in turn; downstream state must change only through declared dependencies. This fixture must also cross an origin rebase, simulation-rate change, quality migration, resize/DPR transition, and an external pose-stream gap or error.

The two precipitation ingress arms are mutually exclusive over one PhysicsTimeInterval. Never consume or merge both: record the selected source/version and make the other arm typed absence. Cloud-owned precipitation must traverse its PrecipitationEmissionSnapshot and transport delay; externally prescribed precipitation must use the forcing snapshot's mass-flux, phase, and velocity channels without fabricating a cloud emission.

For every domain and target, record coordination intervals, per-owner native ticks/subcycles, compute dispatches, render passes, queue submissions, executions per presented frame, barriers, readbacks (steady-state physics/render readback is normally zero), hot working- set bytes, resident and peak/migration-overlap bytes, compulsory reads/writes per execution, traffic per presented frame, upload volume, timing-query resolve latency, CPU/GPU/presentation distributions, and settled quality. A mobile claim requires this evidence on the named physical low-power device. Separate route-shared simulation/provider/Candidate work and resources from per-target/view Camera/ViewPreparation, pass, attachment, history, and output work in the canonical PhysicsCostLedger. Validate each view, count shared costs once, apply exact multiview and frames-in-flight multipliers, and report both the per-view rows and composed mobile total; neither multiplying shared work by view count nor hiding view-local cost in an amortized aggregate is valid.

Refresh-Derived Performance Envelope

Do not use a universal device-class millisecond table. For each target device/browser/display/viewport/DPR combination, record requested presentation rate Authored, actual display refresh Measured, and a feasible frozen target rate Gated; derive its frame period Derived by dimensional inversion. Measure the browser main-thread reserve and compositor/GPU reserve with a pass-through host-shell run under the same conditions. An unmeasured reserve may be Authored as a provisional assumption, but it cannot support a claim of measured device headroom.

Derive separate stage envelopes:

CPU scene envelope [Derived]
  = refresh period [Derived]
  - browser/main-thread reserve [Measured or provisional Authored]
  - CPU safety reserve [Authored]

GPU scene envelope [Derived]
  = refresh period [Derived]
  - compositor/GPU reserve [Measured or provisional Authored]
  - GPU safety reserve [Authored]

Use reserve quantiles consistent with the frozen tail-latency gate. If the host shell exposes only combined browser/compositor overhead, subtract that combined reserve once and mark the stage attribution unavailable; never subtract correlated or overlapping reserves twice.

CPU and GPU stages may overlap; do not add their durations unless a measured dependency serializes them. Freeze p95 [Gated] stage limits and deadline-miss limits as Gated values sourced from these envelopes. Record presentation cadence and dropped/deferred frames independently. Initialization, compilation, asset upload, readback, PNG encoding, and automation overhead are separate measured phases, never silently removed from end-to-end startup or capture claims.

Sustained And Thermal Evidence

Performance acceptance requires both cold and sustained traces on each target class. Window durations, sampling cadence, workload path, and thermal stabilization rule are Authored; minimum sample and residence requirements are Gated. Report per-window CPU and GPU p50 [Measured] and p95 [Measured], presentation intervals, deadline misses, memory trend, active quality state, and quality transitions.

The sustained verdict uses the final stable window, not an average that hides late throttling. Temperature, clocks, power, and hardware counters are Measured when exposed. If they are unavailable, report only observed timing, cadence, memory, and quality drift; do not claim absence of thermal throttling. An emulator or desktop emulation is not evidence for a low-power target.

An adaptive governor passes only if the settled tier meets both the performance gates and its visual-error gates. Oscillation, repeated emergency drops, unbounded recovery, or satisfying timing by crossing the visual-error gate is a failure. Log the exact decision metric, filtered value, threshold, hysteresis, dwell interval, transition cause, and resource rebuild cost.

GPU Timing Sufficiency

The contract declares gpuTimingRequirement before capture. GPU timestamp timing is required for claims about GPU headroom, per-pass or per-dispatch cost, GPU thermal degradation, bandwidth limitation, or compliance with a GPU stage envelope. When required timing is unavailable, the verdict is INSUFFICIENT_EVIDENCE; it is not SKIP, zero cost, or a pass. CPU frame time, animation-frame cadence, and presentation intervals remain useful end-to-end measurements but cannot identify GPU cost.

Resolve and record render and compute timestamp scopes separately. Timestamp resolution/readback is a measured auxiliary phase and cannot contaminate the steady-state sample window.

Visual correctness, deterministic behavior, and lifecycle checks may be signed off separately only when the contract explicitly excludes GPU performance claims. Record the unsupported claim and the device/browser needed to close it.

Tile-GPU And Memory Evidence

For low-power and tile-based GPUs, inventory more than allocated target bytes. Derive and gate:

• resident textures, geometry, buffers, histories, pipelines when estimable, and staging/readback allocations;
• peak simultaneously live transient bytes, not the sum of reusable aliases;
• render-pass attachment bytes per pixel including sample count and depth or stencil;
• attachment load, store, discard, resolve, and pass-break traffic;
• sampled-texture, storage-texture, and storage-buffer read/write traffic as lower and upper bounds with cache, compression, overdraw, and filter assumptions;
• bytes per frame and bytes per second at the measured presentation rate;
• allocation churn and upload volume per frame.

Do not infer tile dimensions, on-chip occupancy, cache hit rate, compression, or physical bandwidth from WebGPU abstractions. Such values are Measured only when hardware counters expose them. Otherwise publish a Derived model with uncertainty and reject any claim that the scene is proven bandwidth-bound. Avoid avoidable attachment stores, resolves, full-resolution histories, and pass breaks before reducing the mechanism.

Visual-Error Gates

Choose metrics per invariant and before seeing the candidate result:

• silhouette overlap plus boundary-distance distribution;
• relative depth error and occlusion disagreement;
• normal angular error;
• scene-linear radiance or luminance error before tone mapping;
• perceptual color difference after the same output transform;
• motion/velocity error, temporally reprojected residual, ghost occupancy, and flicker energy;
• field residual, conservation error, or analytic-reference error for the claimed mechanism;
• deterministic exact mismatch only where exact identity is expected.

Every result is Measured; every acceptance threshold is Gated. Store metric domain, units, reference provenance, alignment, mask, percentile statistic, and aggregation rule. Report spatial error maps and worst-case captures, not only a scene-wide scalar. A stochastic mask must be authored before capture and cannot hide deterministic failure.

Coastal Archipelago Validation Profile

Use this profile for procedural island, coast, reef, beach, and shallow-water scenes such as the supplied isometric archipelago reference family. Read the coastal archipelago system to identify the selected water branch and its invariants, then apply the coastal evidence protocol.

Treat the reference as a causal feature ledger, not a color thumbnail. Record and independently validate:

• island outline and negative-water channels;
• grass cap, terrace, cliff, beach, wet-line, and seabed ordering;
• bathymetry-visible shallow water and deep-water transition;
• shore/breaker-aligned foam, local obstruction response, and any persistent foam history;
• vegetation, ruin, dock, boat, reef, and rock placement constraints;
• orthographic/isometric projection, overview-to-detail scale hierarchy, semantic-region palette/value separation, far-water minification, and optional cloud occlusion.

The evidence bundle must prove one shared coast/bathymetry transform. Capture the coast level set, terrain elevation and semantic regions, bathymetry, coast frame, compiled land boundary, rendered water intersection, foam source, foam history, wetness, and asset support/exclusion masks. A visually close frame fails when those signals are independently authored and merely happen to align at the design camera.

Freeze exact cameras for archipelago-overview, island-design, coast-near, and grazing-water. At each applicable view capture final, no-post, semantic terrain groups, land/coast field, bathymetry/depth, water state and normals, optical thickness, foam source/history, asset constraints, LOD/chunk seams, camera/framing overlay, and output ownership. Add an underwater or water-crossing view only when the contract claims underwater rendering or a camera transition.

Use native-domain gates fixed before candidate inspection:

• world-space and physical-pixel boundary distance between the authored coast level set, compiled land edge, and rendered land-water intersection;
• classified land-water gap/overlap area, shoreline seam residual, and hard-edge normal disagreement;
• bathymetry continuity plus monotonic depth/optical-thickness ordering under a fixed lighting/output transform;
• camera projection/framing residual plus semantic-region scene-linear luminance and output-referred perceptual-color error against the declared reference features;
• foam-source precision/recall against the declared coast/breaker mask, on-land leakage, history reset residual, flicker energy, and detached-foam lifetime;
• solver positivity, mass/boundary residual, spectrum, or dispersion error only when the selected algorithm claims those invariants;
• asset support penetration/floating distance, slope/exclusion violations, spacing or distribution residual, stable-ID correspondence, and rejected- placement accounting.

Run deterministic representative and stress seeds selected before inspection. Exercise reset, steady forcing, stronger forcing, local disturbance, camera motion, resize/DPR, quality transition, and long sustained evolution when the selected mechanism makes them relevant. A still frame cannot sign off foam advection, simulation boundaries, LOD registration, history decay, or frame-rate-independent evolution.

Validate Full, Budgeted, and Minimum viable states as separate visual contracts. Every state preserves coastline identity, semantic terrain order, bathymetric ordering, water/normal state agreement, foam causality, landmark support, and the single output owner. Lower states may reduce projected-error detail, local-water or foam resolution/cadence, sub-pixel wave bands, secondary asset population, caustics, or clouds only after the corresponding error gate passes. Never bind a state to “desktop,” “integrated,” or “mobile” by label; select the stable state from sustained measurements on a named physical target.

For each physical desktop-discrete, integrated, and low-power/mobile target, record simulation executions per presented frame, compute and render pass cadence, storage and history layouts, per-step reads/writes, uploads, attachment load/store/resolve behavior, logical live bytes, peak simultaneous transients, and p50 [Measured]/p95 [Measured] CPU, GPU, and presentation distributions. A device-class name or a universal millisecond table is not an acceptance envelope. If GPU timing required by the claim is unavailable, keep the visual verdict separate and return insufficient GPU-performance evidence.

Reject the coastal claim on a visible land-water gap or overlap, coast or foam swimming, shallow/deep response that contradicts bathymetry, refracted geometry crossing an occluder, non-finite water state, invalid normal, solver boundary leak, unbounded foam history, floating/buried landmarks, forbidden vegetation support, unstable seed identity, or any quality transition that changes the primary composition or crosses a frozen error gate.

Color And Output

• Color textures use SRGBColorSpace.
• Data maps and diagnostic/storage textures use NoColorSpace or explicit linear-data semantics.
• HDR working targets remain scene-linear until the single tone-map owner.
• RenderPipeline or an explicit renderOutput() stage owns the sole output conversion.
• Captures record encoding and do not double-convert material, target, or presentation output.

Rejection Summary

Reject or narrow the claim when any required invariant lacks a direct diagnostic and metric; the final relies on post treatment to create missing form; visual-error gates fail; sustained p95 [Measured] or deadline gates fail; the governor settles outside the visual contract; required GPU timing is unavailable; tile/resource evidence omits a material cost; deterministic reset fails; or lifecycle loops leak persistent resources.

Routing Boundary

This skill evaluates an implementation; it does not supply the subject mechanism. Load threejs-choose-skills first, then only the selected subject and image-pipeline skills. If canonical WebGPU is unavailable, report the blocker. Do not load, quote, or propagate compatibility fallback teaching unless the user explicitly requests teaching how to apply fallback when WebGPU is unavailable.
