Procedural Fields

Procedural Fields

The first implementation decision is the algorithm class. Do not begin with a simple material expression and later optimize it. Author the field once as a deterministic TSL Fn, reuse that exact function in material, vertex, and compute stages, and bake only when an invocation-weighted ALU, update, and bandwidth model predicts a win over direct evaluation.

Keep the shared field core stage-portable: coordinates, deterministic field, analytic derivatives, and causal outputs only. Fragment footprint derivatives, vertex patch-error policy, and compute tile invalidation are consumer adapters; do not place dFdx/dFdy inside a function also called from vertex or compute.

Use $threejs-choose-skills before this skill when the request spans multiple graphics systems. Use $threejs-procedural-materials when the task is channel assembly and material response, and $threejs-procedural-planets when the deliverable is a complete planetary body.

When a field participates in dynamics, collision, support, forcing, or another physics query, bind it to the route's physics-domain and interaction contract. The public boundary is a typed PhysicsSignalDescriptor, not a TSL function, texture handle, or undocumented callback. It references the active PhysicsContext through canonical contextId, physicsFrameId, physicsOriginEpoch, transformRevision, clockId, channel/unit, represented-footprint/filter, validity, perChannelError, cadence/latency, stateVersion, residency, and resourceGeneration fields. Requests name the exact PhysicsInstant or PhysicsTimeInterval they accept; returned SampledChannel.actualPhysicsTime uses that direct instant-or-interval wire shape, not the generic PhysicsTime wrapper. Do not add time to the descriptor or create a field-local timestamp dialect. Convert from Three.js world coordinates exactly once through PhysicsContext.worldToPhysicsTransform and its sole positive metersPerWorldUnit; no field serializes the reciprocal or another scale. Field math and storage stay domain-owned; cross-system consumers may read only descriptors whose context, frame, version, and error gates pass. Publish physics values in SI in a stable physical frame. A render rebase makes the camera owner publish a new CameraViewPublication with a changed render mapping and renderOriginEpoch; the view-independent candidate and physical field state do not change physicsFrameId, physicsOriginEpoch, values, IDs, or versions.

Numerical Provenance

Every numerical claim emitted from this skill carries one label:

• Derived: follows from a stated equation, format, or byte count.
• Gated: an acceptance threshold or device/API capability that must pass.
• Measured: captured on the named browser, GPU, resolution, and workload; never transfer it to another target without remeasurement.
• Authored: a look-development or planning starting point, not a physical constant or performance fact.

Unlabelled integers in API names, vector widths, channel counts, or source code are structural, not budget claims.

Mandatory Renderer Path

Use the repository's pinned Three.js r185 WebGPU/TSL APIs:

• WebGPURenderer from three/webgpu.
• TSL from three/tsl, with reusable Fn field functions.
• MeshStandardNodeMaterial, MeshPhysicalNodeMaterial, or the appropriate NodeMaterial family member for material consumers.
• RenderPipeline, pass(), mrt(), PassNode.setResolutionScale(), outputColorTransform, and renderOutput() for node post pipelines.
• renderer.compute() or renderer.computeAsync() with Fn().compute(count), StorageTexture, textureStore(), StorageBufferAttribute, StorageInstancedBufferAttribute, storage(), barriers, and atomics when the field bake or placement algorithm needs them.

After renderer initialization, prefer renderer.compute() for ordinary submission. In r185 computeAsync() only initializes on demand before enqueueing; it is not a GPU-completion fence. Await an actual readback/map or use GPU timestamps when completion or timing evidence is required.

Runnable import baseline:

import {
  RenderPipeline,
  StorageBufferAttribute,
  StorageInstancedBufferAttribute,
  StorageTexture,
  WebGPURenderer,
} from 'three/webgpu';

import {
  Fn,
  mrt,
  pass,
  renderOutput,
  storageTexture,
  textureStore,
} from 'three/tsl';

outputColorTransform is a RenderPipeline property, not a TSL export.

Native-WebGPU Gate And Tiers

Initialize and reject any non-WebGPU backend before selecting quality. CPU ports remain offline/geometry/parity tools; they are not a runtime renderer branch.

await renderer.init();

if (renderer.backend.isWebGPUBackend !== true) {
  throw new Error('threejs-procedural-fields requires a native WebGPU backend.');
}

const { features, limits } = renderer.backend.device;

Quality tiers:

These are presentation/storage tiers for purely visual fields. Changing the representation, filter, active band, cadence, or error of a physics-facing field requires a coordinator-admitted QualityTransition at a graph step boundary, with an explicit conservative map or reset/handoff and one authoritative producer throughout the transition.

Field Contract

Before code, write a field bundle:

coordinates
  -> macro form
  -> meso structure
  -> derived causes
  -> packed material and placement channels

Example:

sphereDirection
  -> tangentially warped direction
  -> elevation + ridges + craterDepth
  -> slope + cavity + latitude + moisture
  -> biome + color + roughness + bump + placementMask

The contract must record:

• coordinate domain and units;
• seed ownership and deterministic hash/noise family;
• primary fields and derived causes;
• consuming material, geometry, compute, placement, and post channels;
• filtering rule per frequency band;
• bake-vs-evaluate equation with invocation counts, operation inventory, dirty texels, reuse interval, bytes/texel, sampling footprint, and measured timing;
• CPU parity plan with per-channel conditioning, storage quantization, and threshold guard bands;
• debug output for every named field.

For every physics-facing output, emit its PhysicsSignalDescriptor and batched adapter. Static fields publish an immutable stateVersion with analytic-on-demand or event-driven cadence as appropriate; every request and returned channel, including a static/analytic result, carries a canonical requested/actual PhysicsInstant or PhysicsTimeInterval directly. Edited or simulated fields additionally publish their cadence, latency, and invalidation state. Missing, stale, ambiguous, or out-of-domain samples remain explicit validity states. Optional channels that do not exist remain absent. Never substitute zero, reuse an old origin epoch, or silently sample a lower render LOD.

Register every edited/simulated field owner, read/write version, cadence, sample phase, and CPU/GPU dependency on the route's PhysicsGraph; a texture dispatch is not an implicit scheduler edge. When a physics-owned field is also rendered, publish a view-independent PhysicsPresentationCandidate containing one leased PresentedStatePair per stable binding/provider. Its previous and current states each carry their own PresentationSampleProvenance, PhysicsInstant, state handle, and field PresentationSpatialBinding. CameraViewPublication owns the per-view render mapping; ViewPreparationPublication owns visibility, shadows, caches, resets, and view-specific lease refs. The sealed snapshot references candidate binding IDs and leases instead of copying pairs or transforms, and the multi-target FrameExecutionRecord owns completion and lease disposition. Static analytic fields may use explicit hold/not-interpolated provenance with identical bracket versions rather than omitting lifetime ownership.

Local terrain and coast field contract

For a local island, archipelago, reservoir edge, river reach, or coastal architectural site, do not let an arbitrary height threshold independently define terrain, beach, seabed, placement, and foam inputs. One signed coastal field owns the shared boundary:

stable world/tile-local XZ
  -> land-support implicit field
  -> metric shoreline distance + closest-feature identity
  -> coast normal/tangent/curvature
  -> cross-shore land height + bathymetry
  -> terrace, cliff, beach, wet-line, drainage, exposure, and placement fields

Here wet-line is static substrate/capacity or a statistical envelope derived from declared land causes. It is not dynamic free-surface position, foam, run-up, or conserved wetness. Water owns free-surface/foam/wash signals; the route-selected receiver-state owner alone integrates precipitation, inundation, infiltration, drainage, evaporation, and snow storage. This field skill may publish static support/eligibility and consume the resulting immutable receiver snapshot, but it never advances a competing wetness store.

Use the sign convention dCoast > 0 on land, dCoast = 0 at the waterline, and dCoast < 0 in water. If primitive union, coordinate warp, or raster filtering makes |grad(dCoast)| differ materially from one, treat that result as an implicit support function and re-distance it before using values as meters. Never normalize a near-zero gradient at a medial axis; retain a closest-boundary feature/vector or mark the frame invalid there.

Choose the boundary algorithm from the contract:

Couple dry elevation and bathymetry through a cross-shore profile:

zBase(p) = waterLevel + C(dCoast(p))
         + Wland(dCoast) * rLand(p)
         + Wsea(-dCoast) * rBed(p)

rLand and rBed are signed residual reliefs; their envelopes vanish outside their side of the coast and at zero. Treat C(0)=0 and matching one-sided derivatives as Gated when the authored shore is smooth. A vertical cliff is not a single-valued heightfield singularity: emit cliffTop, cliffToe, and the shore contour for the geometry compiler to build an explicit wall. Expose the unquantized relief and terraceIndex=floor((zRaw-zRef)/terraceStep) separately; hard terrace caps and walls are topology, not a fragment-color effect. Guard every terrace/coast classification by its propagated CPU/TSL/storage error.

The bundle must also expose the fields actually needed downstream, not a generic noise atlas:

dCoast, closestCoastId, coastNormal, coastTangent, coastCurvature
zRaw, zBed, cliffTop, cliffToe, terraceIndex, terracePhase
beachBand, wetLineBand, slope, aspect, cavity
flowDirection, flowAccumulation, moisture
windExposure, waveExposure, fetch
surfaceIdentity, placementFactorBundle, hardValidityMask, exclusionMask

Fields own these causal factors and validity masks. Vegetation and semantic site-asset compilers own asset/species selection, candidate identity, conflict resolution, and final accepted placements; geometry owns topology-derived anchors. Do not turn a generic field bake into a second placement authority.

Compute drainage from a depression policy, then an acyclic receiver graph; for cells i, accumulation is Derived as A_i = a_i + sum_(j -> i)(w_ji A_j) once routing weights and source areas are fixed. Priority-Flood plus D8 or D-infinity is a compile-time candidate for static land; an erosion solver is eligible only when changed drainage/relief is an observable. Compute coast exposure from declared incident directions, coast orientation, and fetch; do not use another noise sample as a windward or surf proxy.

Read the local-coast recipe in field-stack-recipes.md before implementing terrain, beaches, shallow seabeds, or coastal placement.

For the canonical examples/webgpu-field-bake/ contract, CPU and TSL must import the same FIELD_ALGORITHM object from field-constants.mjs. That object owns the integer lattice hash multipliers, lowbias32 mix constants, seed wrapping convention, octave counts, lacunarity, gain, warp seed offsets, and derived-channel coefficients. Do not copy those numbers into CPU or TSL code. The canonical hash floors the lattice coordinate, converts i32 cell bits to u32, mixes with Math.imul/TSL uint wrapping arithmetic, and scales the final u32 by Derived 2^-32; no sin-dot hash is allowed in the parity path. validate-field-contract.mjs enforces shared-object identity and uses an Authored 1e-12 CPU fixture-drift gate for JavaScript double evaluation. Its FIELD_PARITY_ERROR_MANIFEST labels the direct-WGSL-f32 per-channel limits and threshold guard Gated; it does not claim that an operation count proves them. The manifest separately records the Derived, conditional rgba16float nearest-rounding term and marks interpolation/total stored error unvalidated. A production field contract derives or measures each channel's f32 conditioning, built-in allowance, interpolation/finite-difference error, storage quantization, and threshold guard rather than copying fixture limits.

The example is a canonical validation lab, not production acceptance. It exercises invocation/update/bandwidth algebra, one createFieldNodeBundle() owner with named .toVar() intermediates, direct-f32 parity, explicit rgba16float base writes, dependent box-filter mips, and structured-placement storage. Artifacts gate three declared texels per base texture, three per packed mip, and every placement record. They do not prove filtered consumption, full-domain stored parity, dirty-region GPU execution, or production performance.

Build Order

1. Choose stable coordinates from the physical cause: radial planet kilometers, world XZ water/wetness, branch-local growth coordinates, or authored strata.
2. Define one deterministic stage-portable TSL Fn field bundle. Reuse it everywhere instead of duplicating math in separate materials or compute jobs; wrap it with stage-specific filtering/LOD adapters.
3. Port the same math to CPU only for geometry generation, offline assets, parity tests, and precomputed data used by native-WebGPU quality tiers. Keep constants, seeds, wrapping, normalization, and remaps imported from one checked-in constants module.
4. Decide bake versus direct evaluation from the cost equation below and an A/B GPU timing before assigning material nodes.
5. Pack baked channels by access pattern, update cadence, filter mode, and precision, not by visual category.
6. Wire NodeMaterial consumers from the shared function or baked texture.
7. Add node-pass diagnostics through RenderPipeline, pass(), and mrt().
8. Validate parity and budgets before adding extra bands.

Bake-Vs-Evaluate Cost Gate

For one amortization interval, compare:

Tinline = sum_i(Q_i * E_i)

Tbake = (D * (E_bake + Wstore) + Tdispatch + Tmips) / U
      + sum_i(Q_i * (S_i + B_i / BW_effective))

• Q_i: dispatch and vertex workloads are Derived from explicit counts. Fragment workload is a Measured target model using resolution scale, coverage, MSAA, helper invocations, and an overdraw proxy because WebGPU does not expose a portable fragment-invocation counter.
• E_i, E_bake: Measured field-evaluation cost inferred by controlled A/B timing at fixed workload. Inventory dependent add/multiply/FMA, integer hash, transcendental, branch, register, and octave costs separately; a scalar operation count is not a timing model.
• D: Measured dirty texels per update; U: Measured frames between updates. A static bake amortizes over its observed reuse lifetime.
• S_i: Measured filtered/load sample cost. B_i/BW_effective is effective cache/DRAM traffic, not formatBytes * nominal taps; determine it by A/B timing because locality, footprints, and cache reuse dominate.
• Tdispatch, Tmips, Wstore: Measured dispatch, mip generation, and store costs on the target.

Choose the lower measured path subject to memory and latency gates. Within one shader invocation, materialize the shared field bundle once (toVar() or an equivalent explicit local) before considering a texture. Across passes, stages, draws, or frames, include every actual consumer in sum_i. A full-domain bake usually loses when only a small visible region is shaded; a static expensive field can win with a single consumer because U is large. Fixed read-count cutoffs are forbidden.

Do not call two packed-output Fns that each rebuild the same warp/noise core. Hoist shared intermediates in the caller, or return/materialize one packed bundle supported by the installed TSL revision, then inspect generated WGSL for duplicate hash/octave chains. Source-level reuse is not proof of shader CSE.

Storage format and precision gate

• RGBAFormat + HalfFloatType maps to rgba16float in installed Three.js 0.185.1 and is the portable writable half-float storage baseline: Derived 8 B/texel, fp16 unit roundoff 2^-11 ~= 4.883e-4 for normal values, and maximum absolute rounding for values below one of 2^-12 ~= 2.441e-4. fp16's Derived largest finite value is 65504, smallest positive normal is 2^-14 ~= 6.104e-5, and smallest subnormal is 2^-24 ~= 5.960e-8; do not make a visual contract depend on subnormals.
• RGFormat + HalfFloatType maps to rg16float, which is Gated by the WebGPU texture-formats-tier1 feature. Check renderer.backend.device.features.has('texture-formats-tier1') before use; otherwise use rgba16float or another baseline format.
• RedFormat + FloatType maps to baseline-storage r32float. RGFormat + FloatType maps to rg32float, whose storage use is Gated by non-compatibility/core WebGPU (core-features-and-limits); compatibility mode forbids rg32float storage. Linear filtering of either float32 format is separately Gated by float32-filterable; use exact loads/manual reconstruction or another format when absent.
• RGBAFormat + UnsignedByteType is rgba8unorm, not an integer-ID texture: Derived normalized quantization is at most 1/(2*255) ~= 1.961e-3 before filtering. Use nearest/exact loads plus explicit encode/decode, an r32uint representation, or a storage buffer for exact categories.
• Never store large absolute coordinates or unscaled world heights in fp16. Store tile-local/normalized values plus an origin and scale; require the Derived decoded quantization term (decodeMax - decodeMin) * 0.5 * ulp(encodedValue) plus mip/interpolation error to fit the channel's propagated error budget.

The writer uses storageTexture()/textureStore() in a compute pass; a later filtered consumer samples the same resource through texture(). Do not bind a subresource for storage and sampling in the same usage scope. Keep mipmapsAutoUpdate = true only when automatic generation is required and verified for the chosen filterable format; false means the application must write the complete required mip chain. Ping-pong when a compute update needs to read and write the same logical field.

Required Field Rules

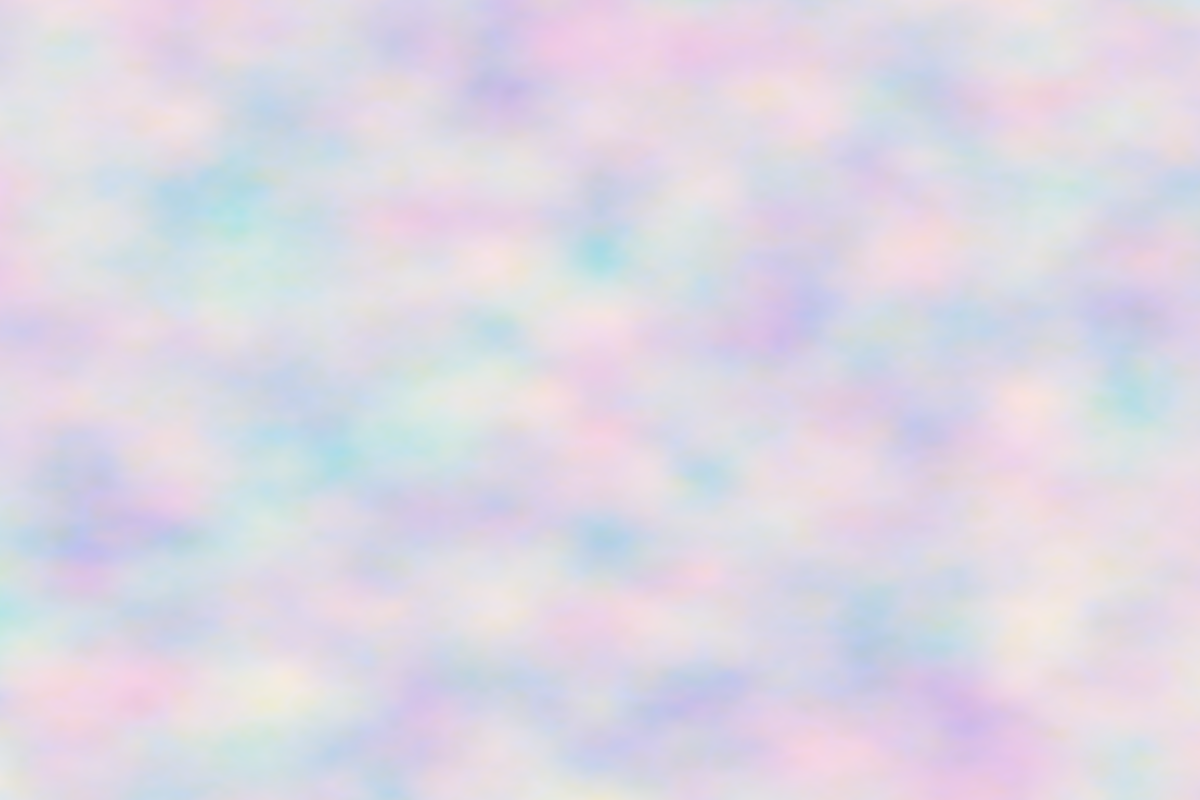

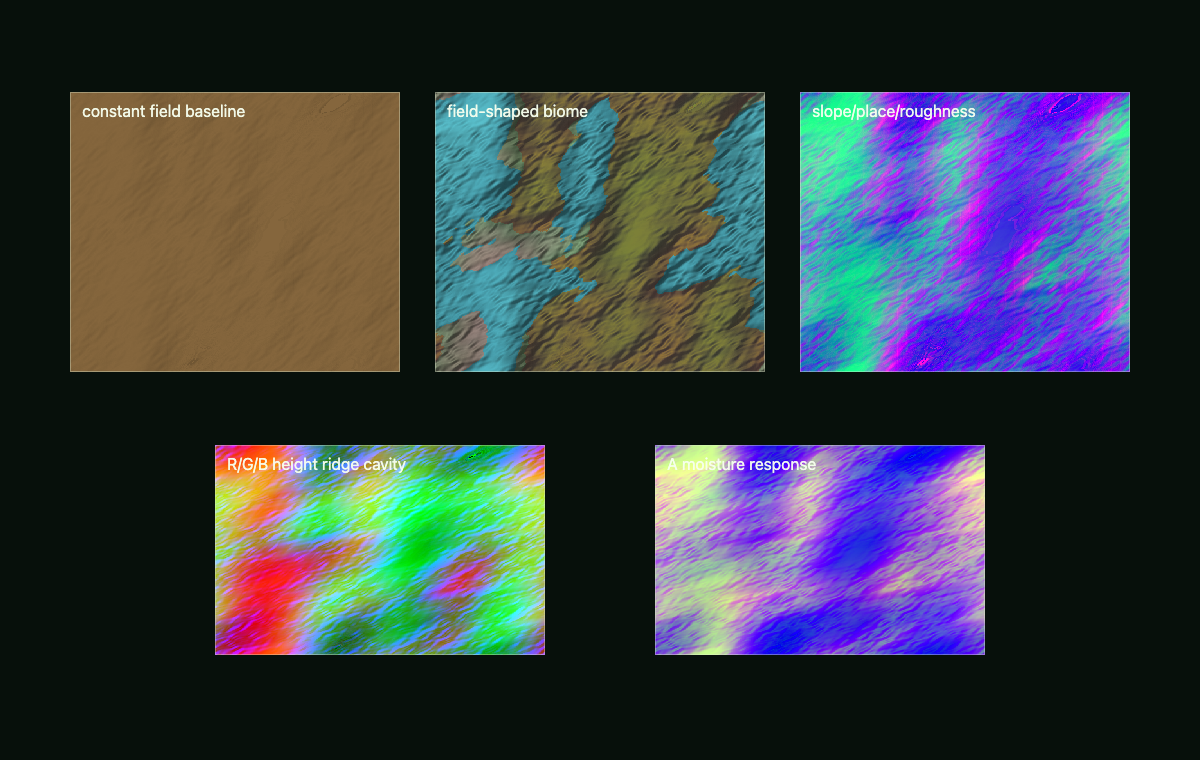

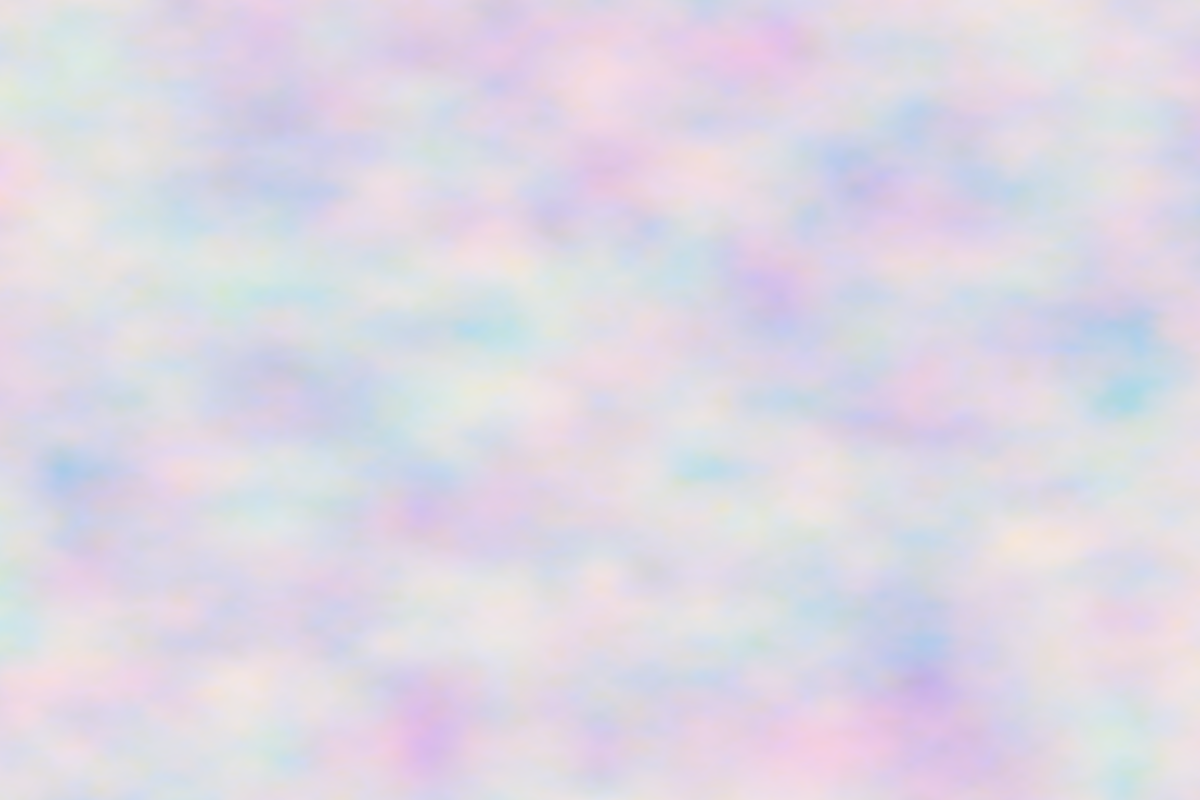

• Shared causes first: color, roughness, normal, displacement, emission, masks, and scattering must derive from the same named fields.

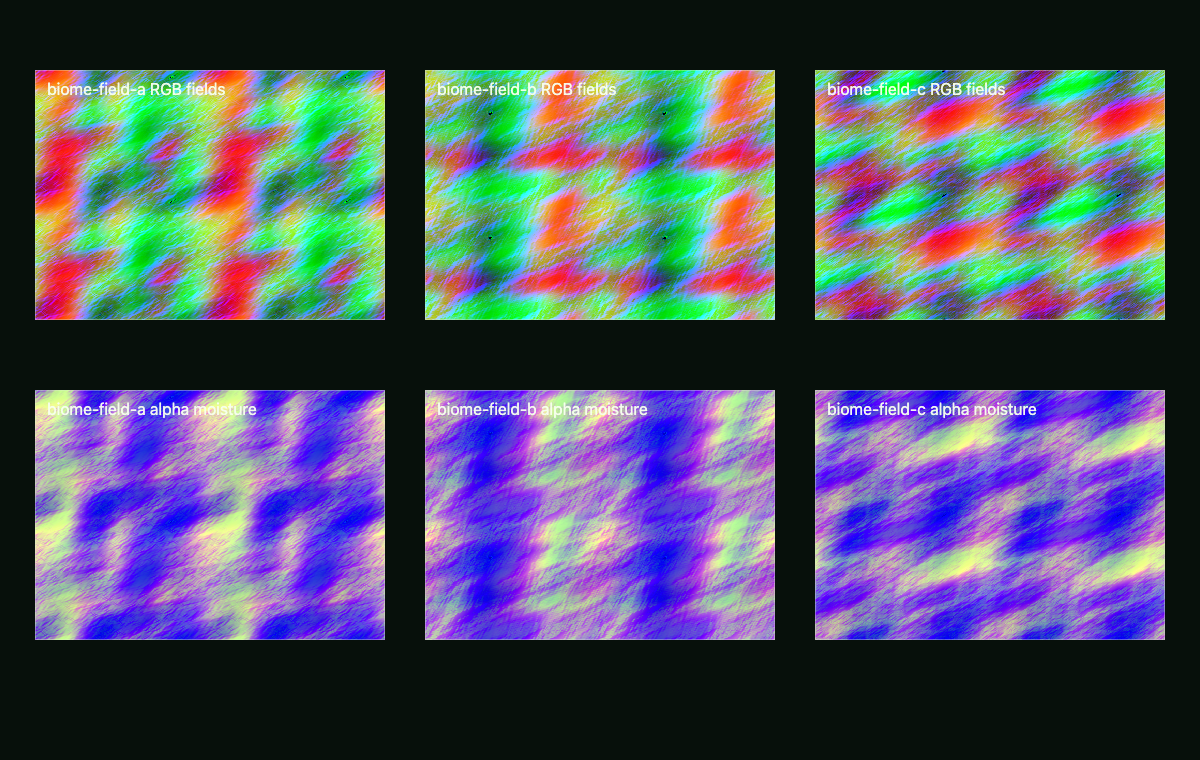

• Carry hash seeds/IDs through u32 uniforms, attributes, or storage. Never pass a parity seed through f32: it cannot represent every 32-bit integer and silently changes hash identity before the cast.
• Before the lattice i32-to-u32 bitcast, Gate floored cell coordinates to the i32 domain and the f32 phase-error budget. Rebase/split coordinates when either condition fails.
• Domain-warp the coordinates, not every result.
• Warp spherical coordinates tangentially, then renormalize.
• Use separate frequency bands for silhouette, regions, surface breakup, and micro-normal.
• Do not displace geometry with frequencies above mesh Nyquist.
• Keep categorical masks broad enough to avoid isolated bubble regions.
• Parameter names must describe perception: ridgeWidth, coastBlend, cavityDarkening, not noise3Amount.

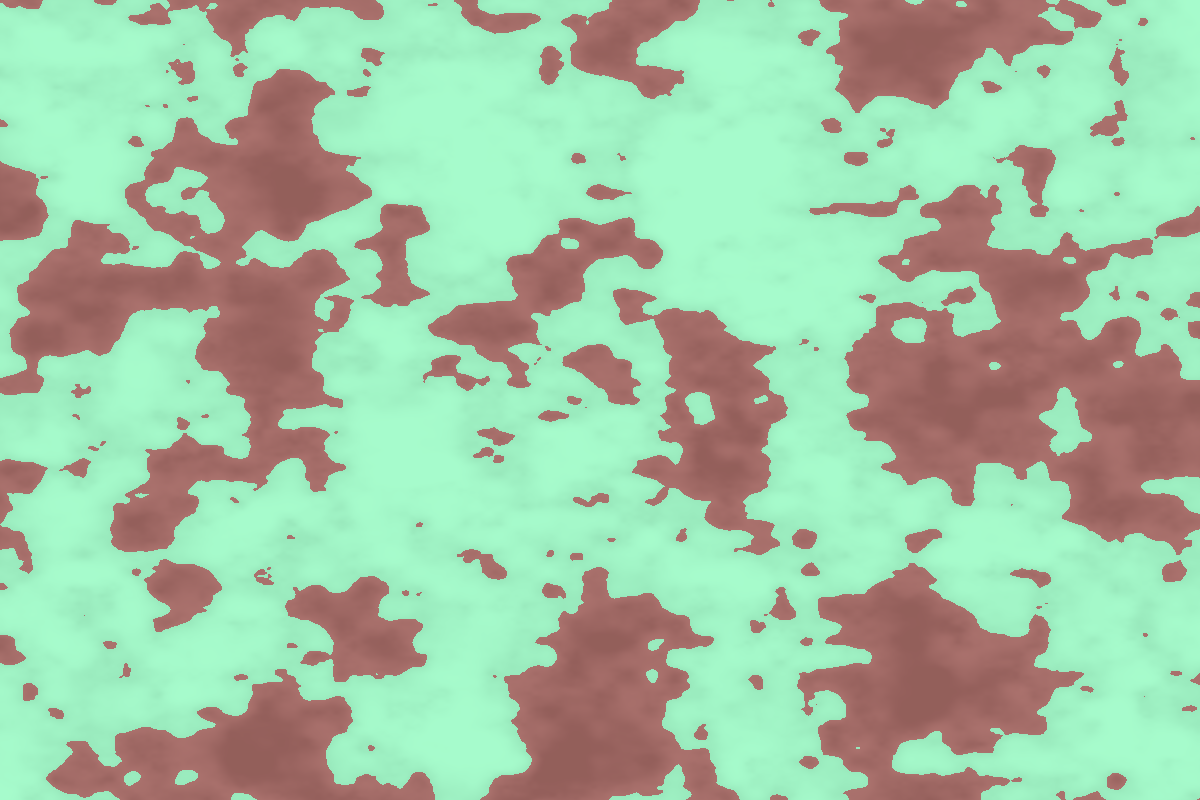

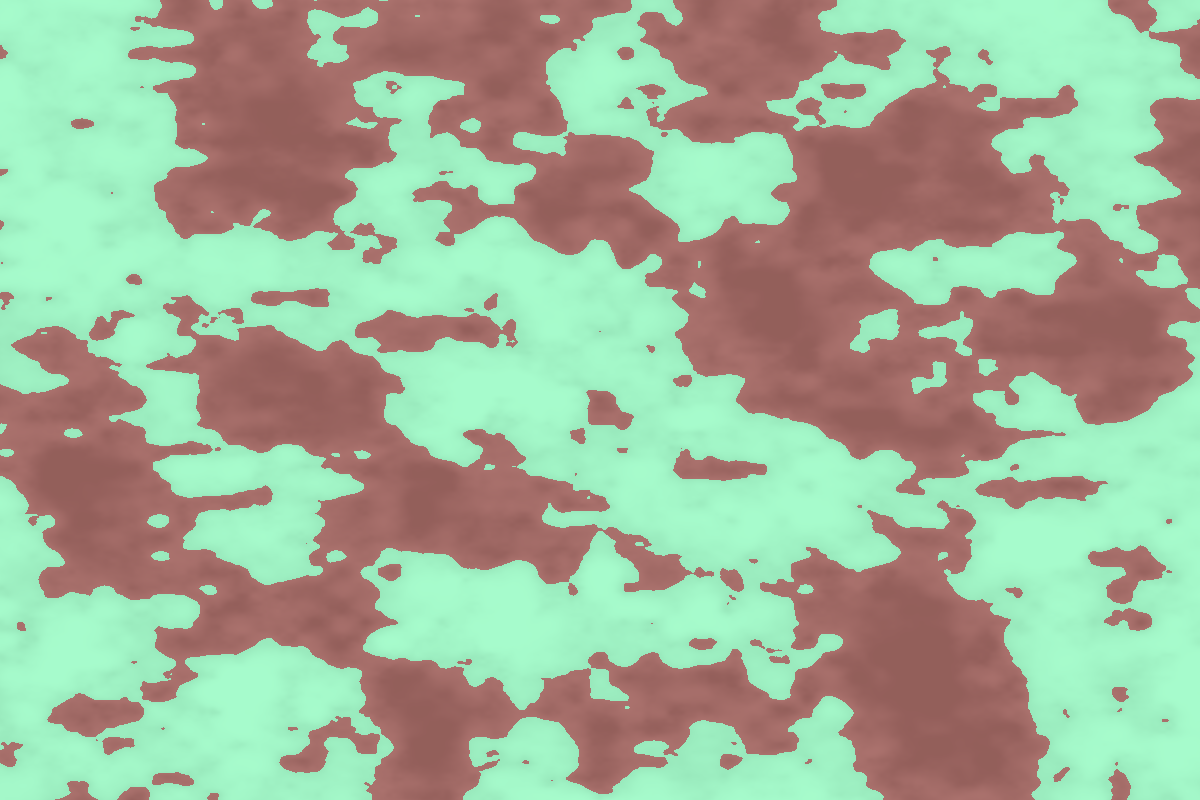

• Random placement starts with strata and semantic constraints; jitter only inside valid cells.

Filtering And Stability

Filter before the field aliases:

• For a band with effective post-remap support f_support and post-warp coordinate footprint Jacobian J' = (I + J_w)[dPdx dPdy], use Derived q = f_support * sigmaMax(J'). Nyquist requires q <= 0.5; begin an Authored smooth energy fade below that boundary and record its interval. A two-pixel wavelength is only the limiting inequality, not an adequate reconstruction filter.
• Geometry displacement also requires Derived f * maxProjectedEdge <= 0.5; use the stricter screen- or mesh-sampling bound. Vertex/compute stages have no fragment derivatives, so pass a patch footprint or choose bands on CPU/compute from projected patch error.
• Keep coordinates stable and attenuate band amplitude/energy. Transfer removed micro-normal energy into a measured roughness/cone-variance term rather than letting highlights sharpen with distance.
• Use mipmapped baked fields for repeated filtered samples.
• For procedural normals, prefilter height/gradient or normal mean plus variance; renormalizing an averaged normal without retaining its lost length erases the variance needed for specular filtering.
• For displacement, silhouette bands belong in geometry; micro bands belong in material normals or baked masks.
• World effects use world coordinates; planetary effects use radial physical coordinates; object-local ornament uses local coordinates.

Color And Output

• Authored color textures use SRGBColorSpace.
• Scalar masks, vector fields, normal/roughness/wetness/noise/LUT/weather data, and baked field textures use NoColorSpace or explicit linear data handling.
• HDR working buffers stay HalfFloatType until tone mapping.
• The app has one tone-map owner and one output conversion owner. In node pipelines, RenderPipeline.outputColorTransform or renderOutput() owns the final conversion; individual fields and materials do not double-convert.

Budgets

There is no universal desktop/mobile band count, atlas extent, dispatch count, millisecond cap, or MiB cap. The product field contract supplies whole-frame Gated GPU p95, CPU p95, peak-live-byte, quality-error, and sustained-thermal limits for named workloads. A device label is not a workload.

For every measured case record:

• output extent, DPR, view coverage, overdraw/MSAA/helper-invocation estimate;
• active bands with hash/noise/transcendental operations and longest dependent chains;
• tile dimensions, total/dirty tile count, dirty texels, dispatch geometry, update cadence, and reuse U;
• per-stage sampled-texture, sampler, storage-texture, and storage-buffer bindings from the compiled layout;
• executed loads/filtered samples on each hot path, bytes/texel, mip levels, producer writes, consumer reads, and measured cache/effective-bandwidth behavior;
• base, candidate, and interleaved paired-delta GPU p50/p95; contemporaneous whole-frame GPU/CPU p50/p95; peak live bytes; mobile-class thermal interval.

Compute each resource exactly from format bytes, aligned extents, mip sum, layers, ping-pong/history count, and simultaneous lifetime. For example, a full 2D mip chain approaches the Derived geometric factor 4/3 before alignment; this is arithmetic, not a memory allowance.

For marginal evidence, interleave matched frames and form delta_k=tGPU_k(graph+field)-tGPU_k(graph) before taking p50/p95. Never subtract independent quantiles. Architecture still comes from the cost model; acceptance comes from the contemporaneous whole-frame gates. Without GPU timestamps, report GPU cost unmeasured rather than substituting CPU intervals.

Keep draw calls unchanged when adding a field. Avoid in-frame CPU readback. Use readback only in explicit diagnostics or parity tests. Static fields update once; slow fields update on a fixed cadence; edited fields update dirty tiles.

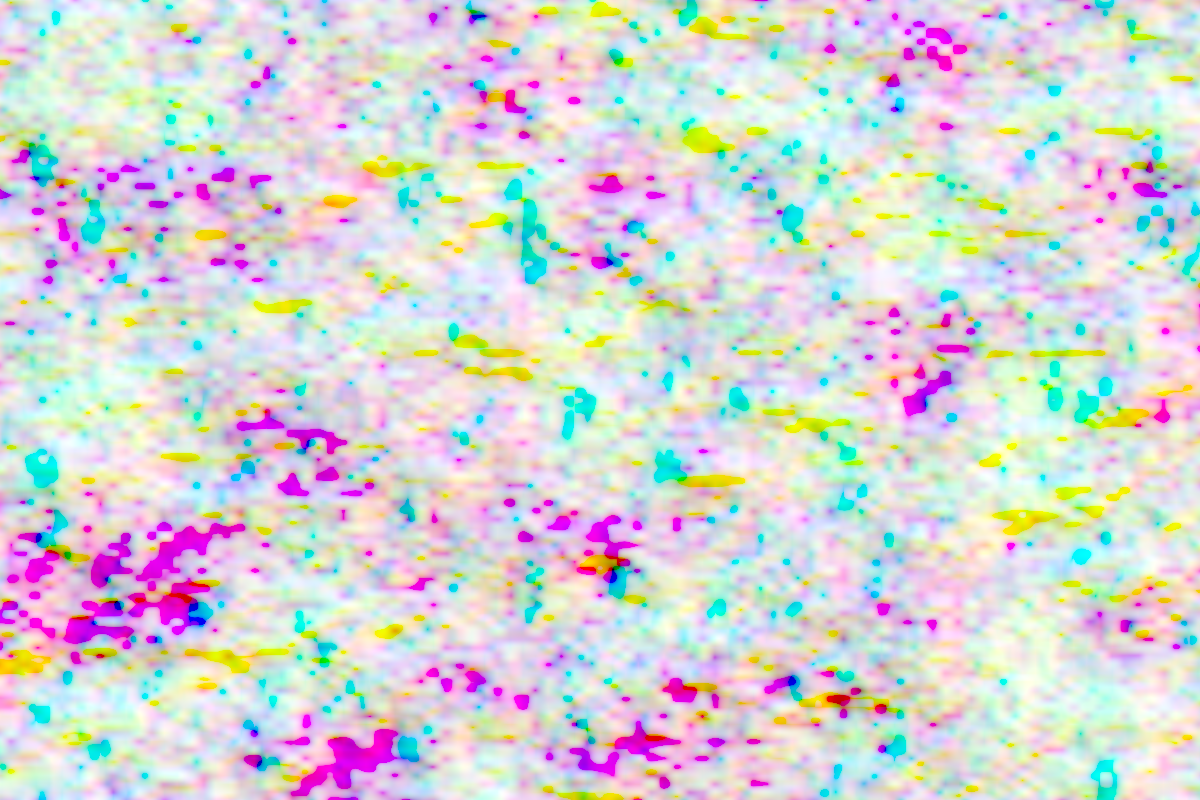

Diagnostics

Every field stack needs a debug route for:

• source coordinates;
• tangential warp vector;
• each frequency band;
• macro height versus material height;
• humidity, temperature, slope, cavity, and identity masks;

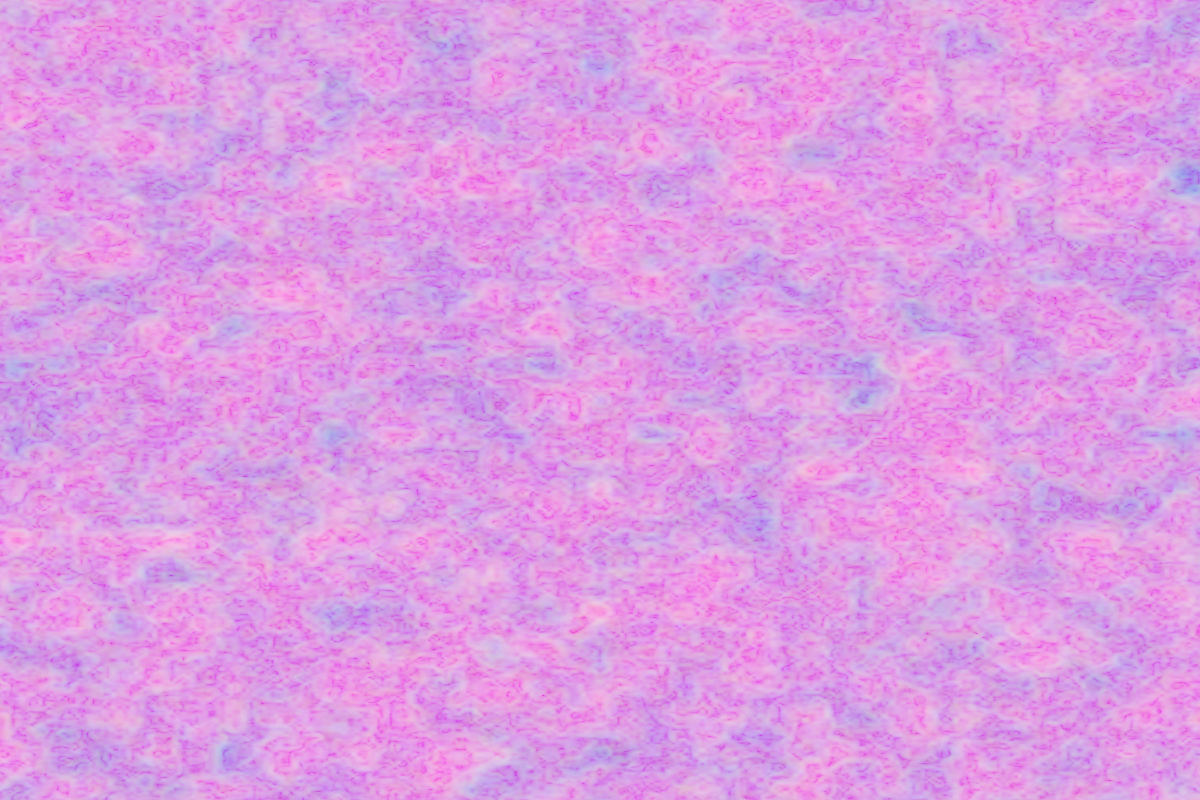

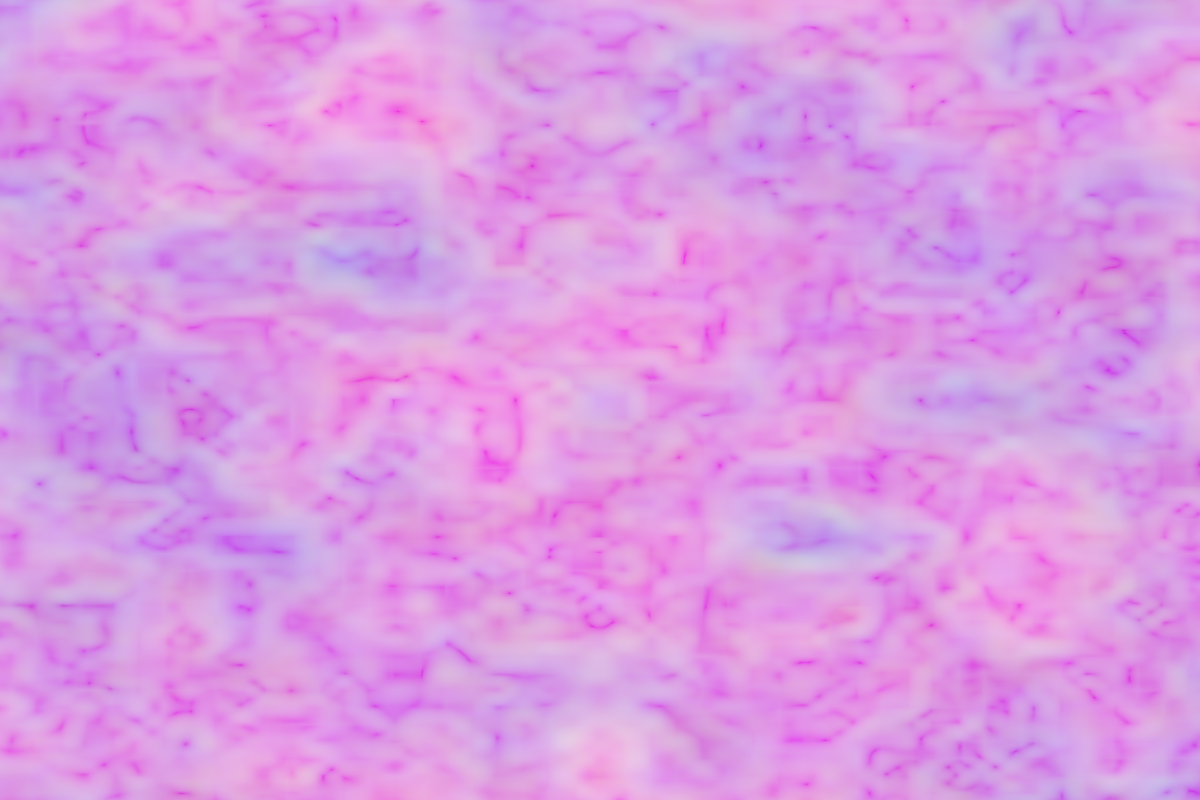

• near/mid/far or footprint weights;
• baked channel pack visualization;
• water-provider normal/crest reference versus the land field, without regenerating either water channel;
• receiver-owned wetness versus land support/height, with both source revisions shown;
• seed and stratification cells;
• CPU versus TSL parity error.

Parity views must separate direct-f32 error from post-store/read error and show the per-channel Gated bound. A single max/min image or one global tolerance does not establish parity.

Use mrt() when the diagnostics share one scene pass. Use PassNode.setResolutionScale() for reduced-resolution field diagnostics and restore full resolution only where inspection needs it.

What This Skill Emits

• field contract with coordinate owner, physical/perceptual units, seed owner, filtering rule, and bake-vs-evaluate decision;
• one PhysicsSignalDescriptor and provider adapter per physics field, using the canonical context/frame/time/channel/footprint/filter, validity/error, version/resource, residency/latency, and missing-channel envelope unchanged;
• TSL Fn field bundle and CPU parity port;
• packed channel schema for direct material use or StorageTexture bakes;
• debug views for every named field;
• validation command: node examples/webgpu-field-bake/validate-field-contract.mjs --allow-missing-gpu for CPU-only fixture diagnostics (never final acceptance) and node examples/webgpu-field-bake/validate-field-contract.mjs --artifacts <dir> after native-WebGPU readback; record the exact sampled storage/mip and full-record placement scope, and keep productionReady: false until filtered consumption, full-domain parity, dirty updates, and target timing are validated;
• sibling ownership notes for material response, planet bodies, weather, image-pipeline ownership, and visual validation.
