Black Holes and Space Effects

Black Holes and Space Effects

Treat these effects as numerical renderers with explicit integration state. The implementation path is pinned Three.js r185 with WebGPURenderer from three/webgpu, TSL from three/tsl, NodeMaterial materials, RenderPipeline, node passes, and compute/storage where caching or diagnostics need GPU-written data. State whether a shot uses a geodesic model, a radiative-transfer approximation, or an art-directed deformation; numerical integration does not by itself make a model physical.

Shared Physics Boundary

When lens, metric, observer, or emitter state changes with the routed scene, read the shared physics domain and interaction contract. Register those producers and the presentation consumer in PhysicsGraph. Consume one PhysicsContext for schemaId, contextVersion, the canonical SI worldFrameId/physicsRootFrameId, worldToPhysicsTransform and worldTransformRevision, physicsFrameRegistry, metersPerWorldUnit, physicsOriginEpoch, and the named source clock. Camera-relative rendering is a presentation adapter; it never owns metric or emitter state.

Publish each metric/lens/emitter source through PhysicsSignalDescriptor with stable provider/signal identity, model kind and revision, physics-frame pose, valid PhysicsTimeInterval, sample PhysicsInstant, bounded domain or query footprint, units/nondimensionalization, state version, residency, validity, and typed per-channel error. A physical scale is explicit: for example Schwarzschild state records r_s = 2 G M / c^2 in metres (or mass in kilograms with the conversion provenance), Kerr spin records either J [kg m^2 s^-1] or declared a* = c J / (G M^2), and Ellis state records throat radius in metres. Do not hide any of these in Three.js scene scale.

Keep metric coordinate time, proper time where a massive emitter uses it, null affine parameter, any solver-only reparameterization such as Mino time, source simulation time, requested render time, and each binding's actual presented time distinct. The ODE parameter advances a ray. Map the observer event from the canonical source PhysicsInstant into the metric chart; for a nonstationary metric, integrate or recover t_coord(lambda) and sample/interpolate the metric and emitter fields at each mapped coordinate event with their versions and error. Using one immutable metric state for the complete ray is a frozen/quasi-static approximation with a declared evolution-error gate, not a general time-dependent geodesic solution.

PhysicsPresentationCandidate.requestedPresentationInstant is t_request. For each stable binding b, resolve the candidate's PresentedStatePair and use currentPresented.presentedInstant as t_presented[b]; its previous and current states each carry independent PresentationSampleProvenance, clock mapping, brackets, interpolation/extrapolation policy, and error. Never assume those instants equal the request or share one interpolation alpha across lens, observer, disk, and emitter providers. For a view, use CameraViewPublication.previousRenderSampleInstant and currentRenderSampleInstant. When current is later and their clock mapping and discontinuity epoch agree, form the exact half-open PhysicsTimeInterval for temporal reconstruction. Equal instants mean no elapsed interval, not a zero-length interval record; reversal or discontinuity forces the scoped reset policy. Render delta is neither an affine step nor a physics step.

Consume the sealed PhysicsPresentationSnapshot only as a reference closure: resolve its exact view-independent candidate, per-view CameraViewPublication, and preceding ViewPreparationPublication. The candidate owns the previous/current lens, observer, and emitter/disk pairs and read leases; the camera publication owns previous/current global-to-render transforms, render sample instants, and projection; the view-preparation publication owns visibility/shadow/cache publications, reactive state, and scoped reset actions. The snapshot contains binding and lease references, not copied pairs or those view fields. Validate model/signal version, provenance, validity, and error through the resolved PhysicsSignalDescriptor and pair. Lens history derives from these presented states and resets on model/revision, exterior/termination class, origin/projection, or validity discontinuity. Consume environment and emitter radiometry through the matching LightingTransportSnapshot; retain each sampled channel's radiometric quantity, working/spectral/angular basis, factor identity, validity, and error so attenuation is not applied twice. Do not invent a bundle-wide basis that overrides channel metadata.

Ray escape, horizon/core hit, disk crossing, and step-cap termination are numerical integration events, not InteractionRecord values. A spacetime, metric parameter, or emissive medium is not a PhysicsMaterialId registered in PhysicsMaterialRegistry. This renderer does not publish force or impulse merely because it bends light; body dynamics must consume the same metric/mass signal through a separate dynamics owner. A QualityTransition may change tolerances, cache/map resolution, cadence, or reconstruction only while preserving the selected model class and physical or artistic claim. A metric/model-class change is a new truth contract and forces explicit history invalidation or migration.

Model Claim Gate

Performance-First Build Order

1. Use $threejs-choose-skills preflight when the request also touches atmosphere, bloom, temporal reconstruction, shadows, or validation.
2. Define a bounded effect volume in local space and intersect the camera ray with that volume before any march work.
3. Run the raymarch as a TSL Fn attached to a MeshBasicNodeMaterial or a compute pass; keep the integrator and disk/throat/shell shading as separate node functions.
4. Advance the ray exactly once per accepted iteration. Do not copy the historical double-advance defect from the legacy example.
5. Choose step length from distance, density, curvature, or a real local-error estimator. A curvature heuristic controls sampling but is not an RK error estimate. Use continuous event tests for disks and shells even when the step is clamped.
6. Accumulate radiance front-to-back with transmittance and terminate on escape, core absorption, saturated opacity, invalid state, or max-step cap.
7. Keep opaque scene/depth at its required resolution. A small projected bound may use a full-resolution scissor; broad coverage may use a measured reduced target away from critical curves. Reconstruct with lens-specific history validity and edge/Jacobian masks. Temporal history reduces stochastic/ interleaved sampling noise; it does not repair deterministic ODE truncation bias.
8. Use StorageTexture, StorageBufferAttribute, or StorageInstancedBufferAttribute with renderer.compute() / renderer.computeAsync() for lens-map caches, per-tile bounds, temporal history, and diagnostics that are expensive to rebuild in a material node. After initialization prefer renderer.compute(); r185 computeAsync() is not a GPU-completion fence.
9. Compose through RenderPipeline, pass(), mrt(), PassNode.setResolutionScale(), outputColorTransform, and renderOutput(). PostProcessing is the renamed deprecated predecessor; use RenderPipeline. setResolutionScale() scales the entire pass, so do not apply it to the full host scene merely to reduce the lens effect.

Algorithm class dominates this skill. A fixed full-budget ray loop is the reference cost ceiling; bounded work, accepted-step control, early termination, and temporal amortization are the production architecture.

Capability Gate

Any compute, storage, MRT, or reduced-resolution path starts with an explicit backend gate:

await renderer.init();

if (renderer.backend.isWebGPUBackend) {
  // Canonical path: TSL raymarch, compute/storage caches, MRT diagnostics.
} else {
  throw new Error("WebGPU backend unavailable for the canonical path.");
}

Do not add a second renderer branch to this flagship specification. A missing WebGPU backend is a reported capability failure.

r185 API Verification

Verified against the repository's installed Three.js REVISION === "185": WebGPURenderer, RenderPipeline, StorageTexture, and Storage3DTexture are exports of three/webgpu; Fn, Loop, pass, mrt, renderOutput, storage, storageTexture, storageTexture3D, and textureStore are exports of three/tsl. TRAANode, BloomNode, and DepthOfFieldNode are default exports from their three/addons/tsl/display/*Node.js modules. Re-run import smoke tests when the pinned revision changes. For temporal upscaling, r185 provides default TAAUNode and named taau from three/addons/tsl/display/TAAUNode.js; TRAANode/traa is temporal AA, not an upscaler. Explicitly configure storage texture format/type/filter/mipmap policy.

Quality Tiers And Budgets

Treat authored counts as initial configuration only. A tier becomes Measured only when its GPU timestamp distribution, resolution, renderer revision, device, browser, thermal state, and scene are recorded. A quality threshold is Gated when it is computed from a screen-space or radiance-error limit. Memory arithmetic and analytic error bounds are Derived.

Report whole-frame p50/p95 and paired marginal p50/p95 from matched frames with the effect enabled/disabled. Do not sum pass percentiles or subtract unpaired percentile summaries.

At half-linear 1080p, 920-step RK4 costs 960*540*920*4 = 1,907,712,000 derivative evaluations before shading (Derived). This rules out a universal mobile-time promise and motivates a transfer LUT for the static spherical Ellis model.

Budget storage explicitly: two half-resolution HalfFloatType history textures for radiance/transmittance, one reduced-resolution velocity/depth validity input, optional one-channel step-count/termination texture for diagnostics, and one bounded lens-map StorageTexture per cached view or probe. Compute bytes as ceil(W*s) * ceil(H*s) * bytesPerTexel * liveTextureCount (Derived); do not infer mobile feasibility from resolution scale alone.

Algorithm Selection

Numerical Rules

• Do not call a UV swirl gravitational lensing. Lensing changes the final lookup direction after numerical integration.
• Bound the domain first; never march the full camera range for a local space effect.
• Use continuous segment crossing tests for thin disks, shells, throats, and event boundaries.
• Keep integration independent from frame rate; animated fields are inputs, not variable time steps.
• Nondimensionalize geodesic state with a declared length scale. Keep rendering distances and medium coefficients in one consistent unit system.
• For RK4 step-doubling, estimate the fine-solution local error with (y_twoHalf - y_full) / 15, scale each state component by atol + rtol * max(abs(y0), abs(y1)), and accept only when the resulting norm is at most one. Rejected attempts do not advance state or event accumulators.
• A heuristic such as errorTarget / curvature is not dimensional error control. Use it only as a step proposal and validate it by convergence.
• Reconstruct the escaped environment ray from the integrated tangent in an explicit exterior tetrad. Orbital position angle alone is not the outgoing ray direction.
• Root-refine escape/core/disk events and bound any metric tail outside the proxy. A step that overshoots the boundary is not an accurate exit state.
• For the dimensionless Ellis model B=b/a, classify B<1 traversal, B>1 turning, and the critical B=1 light ring. A capped critical ray is not an escaped ray.

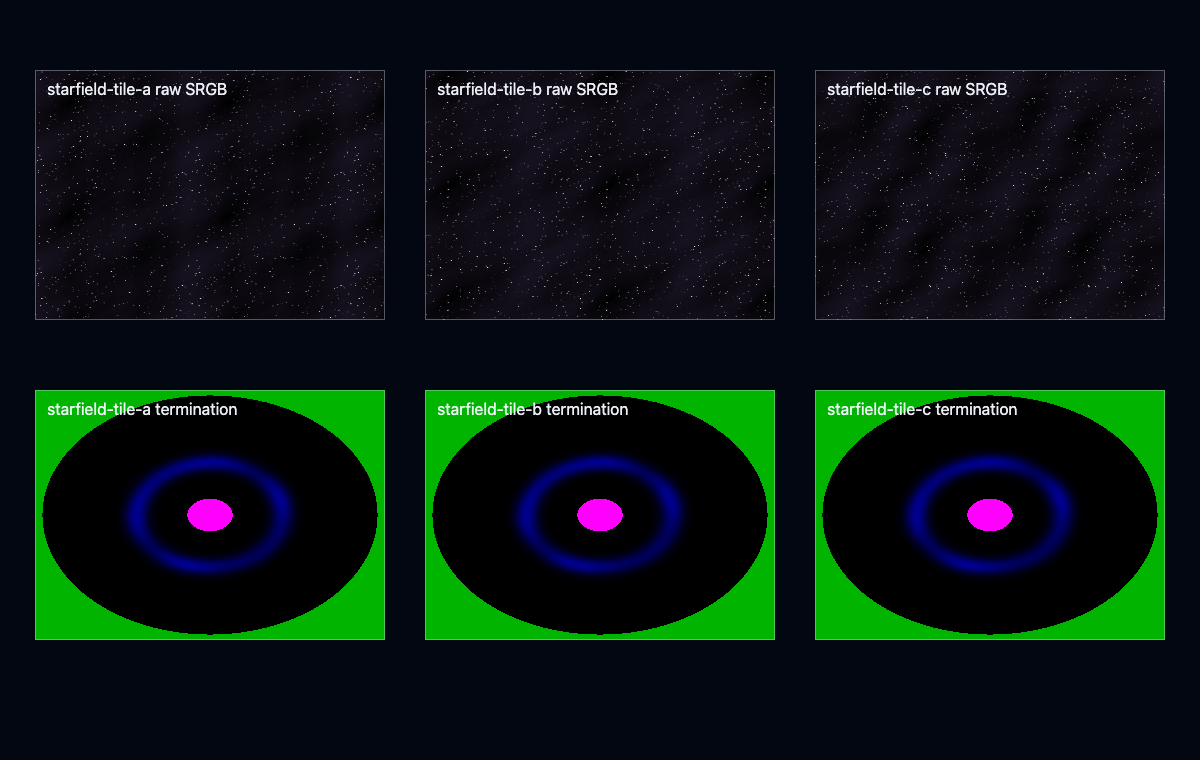

• Use deterministic star/environment data for validation, then replace only after fixed-camera tests pass.

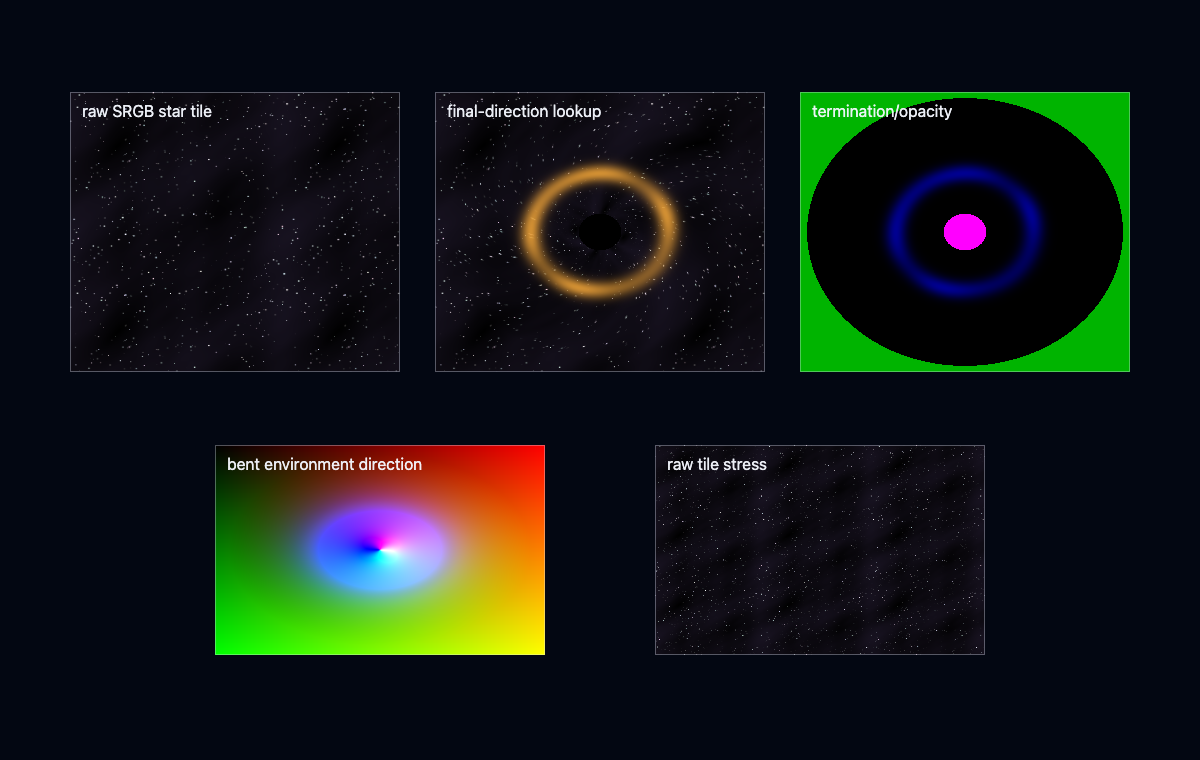

• Track termination reason, accepted step count, accumulated opacity, remaining transmittance, final environment direction, and invalid-state mask.
• Run independent CPU float64 reference rays for numerical parity with a declared metric before treating the result as more than an artistic approximation.
• Gate the GPU against termination class, exterior side, invariant drift, event count/location, and final angular error. A capped or minimum-step ray is invalid evidence, not a visually plausible success.
• Reject temporal history across termination/exterior changes, critical/Jacobian discontinuities, disk animation, or large bent-direction residuals. Generic mesh velocity/depth alone is insufficient for a lens.

For a physical emitting medium after the declared SI adapter, let sigma_t be extinction in m^-1, j be an emission coefficient in W m^-3 sr^-1 (or the declared wavelength-resolved equivalent), radiance be in W m^-2 sr^-1, and tau = sigma_t * ds be dimensionless. Declare the local comoving tetrad/spectral basis; curved-spacetime frequency transfer still obeys the invariant transfer rules above. An explicitly artistic medium may instead declare a coherent scene-length basis, but then it makes no SI radiometric claim. A constant segment contributes T * (j / sigma_t) * (1 - exp(-tau)); use the j * ds limit as sigma_t approaches zero. If code instead multiplies segmentEmission by alpha, document that value as the source function j / sigma_t, not an emission coefficient.

Color And Output

• LDR PNG/JPEG star/environment color authored in sRGB uses SRGBColorSpace. HDR/EXR or procedurally generated radiance remains in the declared linear working color space; do not tag every environment as sRGB.
• Noise, density, masks, lens maps, LUTs, step counts, and termination IDs use NoColorSpace or linear data settings.
• Accumulate radiance and transmittance in linear HDR buffers. Use HalfFloatType working targets until tone mapping.
• The app has exactly one tone-map owner and one output conversion owner. The node pipeline owns output conversion through outputColorTransform or an explicit renderOutput() node. With explicit renderOutput(), set renderPipeline.outputColorTransform = false; set renderPipeline.needsUpdate = true after changing diagnostic outputNode.

References

The shared physics ABI is defined only by the physics domain and interaction contract; this skill supplies the curved-ray adapter, not a parallel physics schema.

Read references/curved-ray-integrators.md for the WebGPU/TSL architecture, RK4 wormhole state reduction, artistic curved-ray accretion integrator, continuous disk crossing, compute/storage caches, diagnostics, and validation requirements.

Canonical WebGPU lab: examples/tsl-curved-ray/. It retains the artistic bounded accretion shader and adds GPU-sampled, critical-split Ellis and Schwarzschild direction-transfer stages, a compute direction cache, and world-position-reprojected, termination-aware temporal ping-pong. A separate direct-GPU probe path executes Ellis/Schwarzschild ODEs, and the convergence route dispatches three Schwarzschild step caps. Independent float64 Ellis quadrature and Schwarzschild Hamiltonian rays gate tables and validation readback. These CPU/source checks do not replace the native-browser readback/timestamp evidence required by lab.manifest.json.

Legacy WebGL implementation (deprecated, do not extend): examples/curved-ray-accretion-volume/curved-ray-effect.js

Routing Boundary

Use $threejs-particles-trails-and-effects for ordinary particles, trails, plasma, and event effects. Use $threejs-volumetric-clouds for weather-density volumes, $threejs-sky-atmosphere-and-haze for planetary scattering, $threejs-bloom and $threejs-exposure-color-grading for post effects, and $threejs-visual-validation for fixed-view visual contracts. This skill owns per-pixel numerical ray integration through curved or bounded space-effect domains.
